SA516gr70 SA240 304 Pressure Vessel Dished Head Stainless Steel Dished Ends
Product Details
| General: | Dish Head | Material: | SA516gr70 And SA240 304 |
|---|---|---|---|
| Industry Focus: | Research And Development Projects | Manufacture Way: | Explosion Clad And Overlay Clad |
| Application: | Power Station, Industrial | Delivery Time: | 20 Days After Receiving The Down Payment |
| Standard: | ANSI, ASME ,MSS, API | Usage: | Electric Power, Boiler |
| Highlight |
SA516gr70 Pressure Vessel Dished Head,SA240 Pressure Vessel Dished Head,stainless steel dished ends 300mm |
||
Product Description

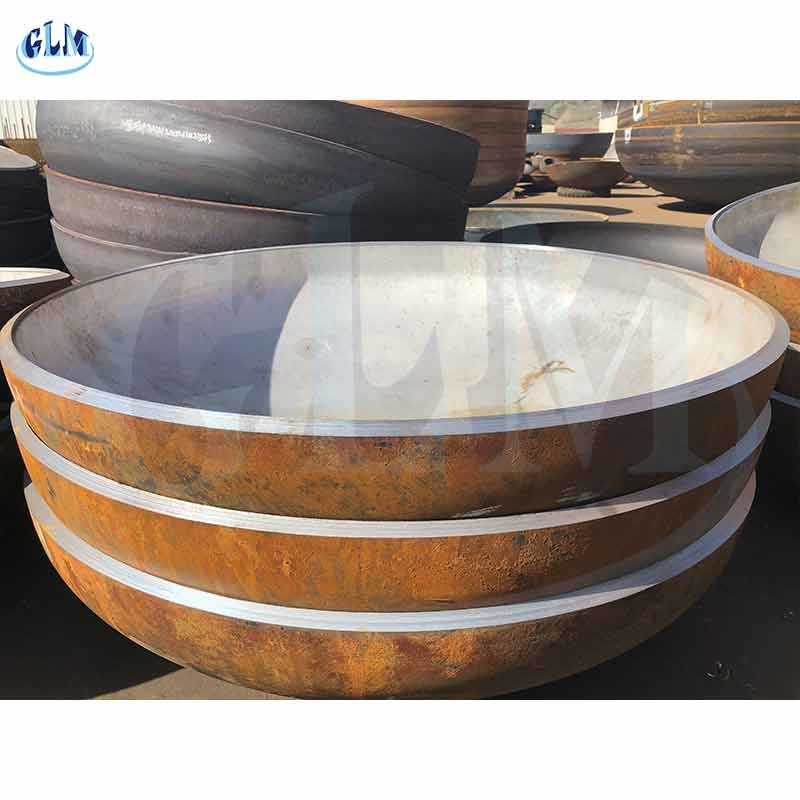

Large Diameter SA516gr70 and SA240 304 Clad Dish Head
Description
Type Tank coverPipe end capElliptical Dish Tank Head Hemispherical Tank HeadSphere crown Dish Tank HeadTorispherical Dish Tank HeadFlat
Dish Tank HeadPunch Dish Tank Head
Diameter 89mm--12000mm ;Thickness:2mm--300mm;
Tank head Material Aluminum,Titanium,etc.
Tank head Technology Hot pressing, cold pressing,Cold spinning
Tank head Surface Treatment Sand Blasting, Pickling
Tank head Applicable Standard ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB
Tank head Applications Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Specifications:
| In-Process inspection &Test Requirement | |
| 1 | cutting and marking transfer and Identification marks |
| 2 | bevel preparation with MT on bevel edges. |
| 3 | Welding |
| 4 | Forming of heads (Cold forming) |
| 5 | NDE after forming RT for welding seams |
| 6 | Final dimensional and visual inspection (Dimensions, Ovality, Profile, Thickness, Height, |
| 7 | Cutting from the lines and Bevel preparation |
| 8 | surface treatment : Sand blast with anti-rust oil |
| 9 | Packaing and delivery |
Product Display
Recommended by seller
FAQ:
1. What’s the information should I provide when inquiry?
Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.
2. what are surface treatment of the product?
Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.
3. How do you ensure the quality of products?
Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.
4. Can you help us matching related products?
Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
