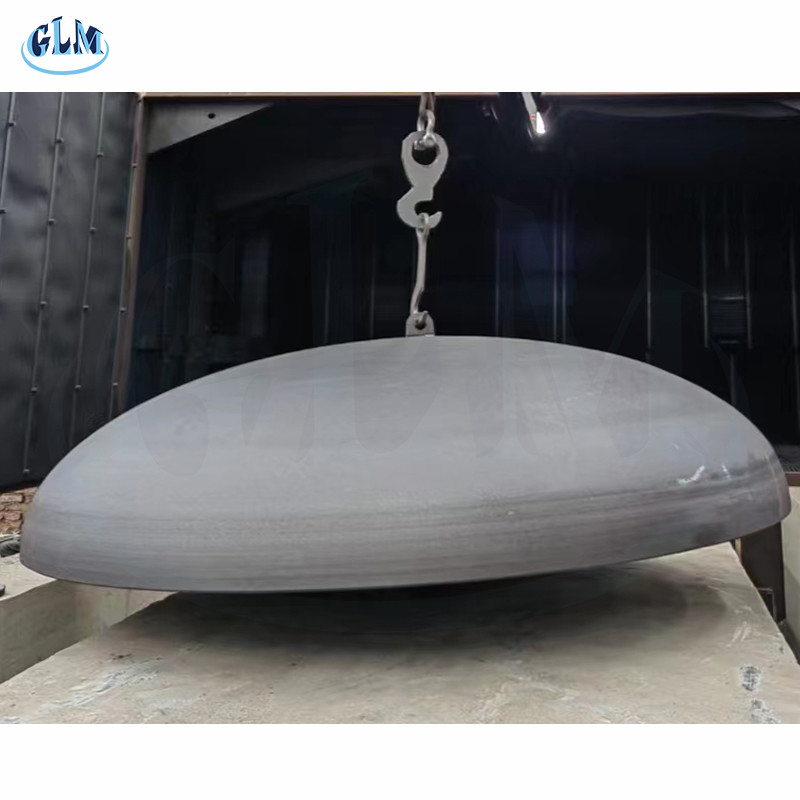

4300mm Diameter ASME Code Dished Heads, Ellipsoidal Bottom

4300mm Diameter ASME Code Dished Heads, Ellipsoidal Bottom
4300mm Diameter ASME Code Dished Heads, Ellipsoidal Bottom

Large Image :  4300mm Diameter ASME Code Dished Heads, Ellipsoidal Bottom

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASMEU,R,U2,PED,ABS,TUV,NB,ISO,
Model Number: Cap
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-125
Packaging Details: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Delivery Time: 10-30
Payment Terms: L/C,Western Union,T/T
Supply Ability: 50000 pieces per Month

4300mm Diameter ASME Code Dished Heads, Ellipsoidal Bottom

Description
Design Temperature: Based On Customer's Needs Technics: Forged
Design Pressure: Based On Customer's Needs Surface Treatment: Shot Blasting, Sand Blasting, Painting, Etc.
Standard: ASME, EN, JIS, Etc. Application: Boiler, Heat Exchanger, Power, Etc.
Forming Method: Hot Forming,cold Forming Package: Wooden Case, Pallet, Etc.
High Light:

ASME Code Dished Heads

,

4300mm Diameter Dished Heads

,

Shot Blasting Ellipsoidal Bottom

4300mm Diameter ASME Code Dished Heads, Ellipsoidal Bottom

Product Description:

ASME Code Dished Heads is a kind of vessel head that is widely used for pressure vessels. This head is made of high-grade materials and is designed to meet stringent international standards such as ISO9001, PED, etc. The vessel head diameter is customizable according to customer requirements, and the design temperature can be customized based on customer's needs.

Pressure Vessel Dished Head is available in various head types, including Elliptical, Hemispherical, Torispherical, etc. The head has excellent mechanical strength and is resistant to wear and tear. The surface of the vessel head is polished to ensure smoothness. It is also corrosion-resistant and can be used for a long time. Moreover, this head is produced by forging, which can ensure its structural integrity.

In conclusion, Pressure Vessel Dished Head is a reliable and economical vessel head solution for pressure vessels. It is made of high-quality materials, has excellent mechanical properties, and is certified according to international standards. The head diameter can be customized according to customer requirements, and the head type can be selected from Elliptical, Hemispherical, Torispherical, etc.



Features:

  • Product Name: ASME Code Dished Heads, Ellipsoidal Bottom
  • Surface Treatment: Shot Blasting, Sand Blasting, Painting, Etc.
  • Design Temperature:Based On Customer's Needs
  • Head Type: Elliptical, Hemispherical, Torispherical, Eccentric Cone, Semi-Elliptical Cap, Etc.
  • Vessel Head Diameter: According To Customer Requirements


Technical Parameters:

Parameter Description
Diameter 89-10000mm
Design Pressure Based On Customer's Needs
Forming method Hot Forming,cold Forming
Standard ASME, EN, JIS, Etc.
Surface Treatment Shot Blasting, Sand Blasting, Painting, Etc.
Application Boiler, Heat Exchanger, Power, Etc.
Grade Carbon Steel, Aluminum, Titanium
Certificate ISO9001, PED, Etc.
Vessel Head Thickness According To Customer Requirements
Head Type Elliptical, Hemispherical,Torispherical, Segmented dish Head, Dished Bottom, Hemispherical Dished End, Spherical Dished End, Etc.


Applications:

The application of our products extends to a wide range of industries, including oil and gas, chemical and petrochemical, offshore, cryogenic, pharmaceutical, food & beverage, water treatment and desalination plants, storage & transport, pulp & paper, mining, power generation, LNG industry, nuclear and aerospace.

No matter where our products are applied, we ensure superior performance and quality, to meet the demanding standards that our customers have come to expect from us.





Ellipsoidal Bottom Products

4300mm Diameter ASME Code Dished Heads, Ellipsoidal Bottom 04300mm Diameter ASME Code Dished Heads, Ellipsoidal Bottom 1

4300mm Diameter ASME Code Dished Heads, Ellipsoidal Bottom 2

4300mm Diameter ASME Code Dished Heads, Ellipsoidal Bottom 3



Packing and Shipping:

Packaging and Shipping for Pressure Vessel Dished Head
  • Pressure Vessel Dished Head shall be packed in wooden cases with shrink-wrapping.
  • The packaging material and methods shall protect the product against any kind of damage during shipping.
  • The packaging shall be clearly labelled with the details of the product for easy identification.
  • The shipping shall be done through reliable carriers.


FAQ:


1. What’s the information should I provide when inquiry?
Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.

2. what are surface treatment of the product?
Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.

3. How do you ensure the quality of products?
Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.

4. Can you help us matching related products?
Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices
