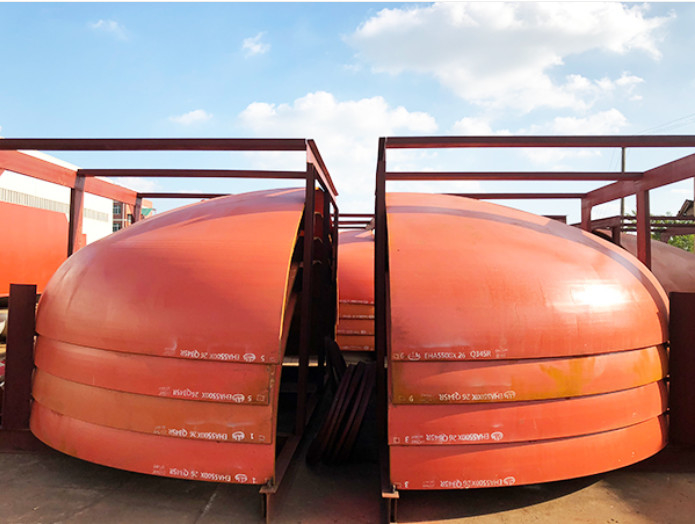

ASME Pressure Vessel Dished Head Stainless Steel Dished Tank Heads 90mm

ASME Pressure Vessel Dished Head Stainless Steel Dished Tank Heads 90mm
ASME Pressure Vessel Dished Head Stainless Steel Dished Tank Heads 90mm

Large Image :  ASME Pressure Vessel Dished Head Stainless Steel Dished Tank Heads 90mm

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

ASME Pressure Vessel Dished Head Stainless Steel Dished Tank Heads 90mm

Description
Material: Carbon Steel Shape: Reducing
Usage: Convey Water, Oil, Gas, Steam Etc. Industry Focus: Chemical Plants
Forming Method: Hot Forming,cold Forming Surface Treatment: Sand Blasting,Pickling,oil,discaling
Name: Pressure Vessel Dished Head
High Light:

ASME Pressure Vessel Dished Head

,

Pressure Vessel Dished Head 90mm

,

stainless steel dished tank heads 150mm

Stainless steel tank heads and pressure vessel heads are fabricated to perfection



Used in pressure vessel, each have a head, up and down the middle is a straight pipe, as a jar with pressure vessel.Rotating elliptical spherical busbar of long and short axis ratio 2.0 of the ellipsoidal head, traditionally known as the standard ellipsoidal head. The mechanical properties of the ellipsoidal head after hemisphere head, but is better than that of dished head.



Due to the depth of the elliptical head between hemispherical and dished head, to the requirement of stamping equipment and mold, manufacturing difficulty and somewhere in between, which hemisphere head, more easily than difficult than dished head. Because use spinning manufacturing process in recent years, to make larger ellipsoidal head has brought convenient. Elliptical head for better comprehensive performance, is widely used in the low pressure container.



Description



Our company have many cooperated factories and domestic clients varies in different fields,such as pipes,flanges, boiler, oil refining equipment,etc. We could help you to find the highest quality products with the lowest price.





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products



ASME Pressure Vessel Dished Head Stainless Steel Dished Tank Heads 90mm 0



ASME Pressure Vessel Dished Head Stainless Steel Dished Tank Heads 90mm 1

ASME Pressure Vessel Dished Head Stainless Steel Dished Tank Heads 90mm 2





FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
