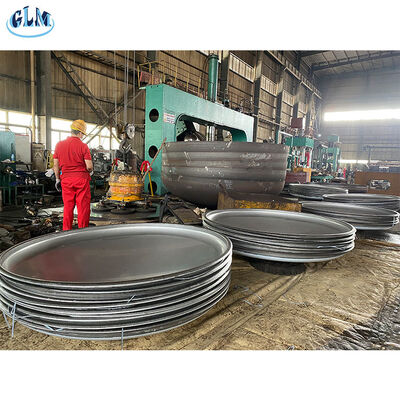

ASME Designstandard Flat Dished Head with 50mm Thick Hot Forming Technology for Pressure Vessels

The Flat Dished Head is a crucial component widely used in various industrial applications, particularly in the fabrication of pressure vessels, storage tanks, and reactors. These heads serve as the end closures for tanks and vessels, ensuring structural integrity and safety under different operating conditions. Manufactured using advanced hot forming technology, the Flat Dished Head offers excellent mechanical properties and durability, making it an ideal choice for both carbon steel tank ends and stainless steel head applications.

One of the key advantages of the Flat Dished Head is its manufacturing process. Utilizing hot forming technology, the material is heated to a high temperature and then shaped under pressure. This method enhances the metal’s strength and toughness, enabling it to withstand high pressure and temperature variations. The forming process ensures a uniform thickness and smooth surface finish, which are essential for maintaining the head’s performance and longevity.

The Flat Dished Head is produced using two primary technics: casting and forging. Casting involves pouring molten metal into a mold where it solidifies into the desired shape. This method is suitable for producing complex geometries and offers flexibility in design. On the other hand, forging involves shaping the metal through compressive forces, which refines the grain structure and improves mechanical properties such as strength and fatigue resistance. Both casting and forging techniques are employed to meet different application requirements, ensuring that the Flat Dished Head can perform optimally in various industrial environments.

To guarantee the highest quality and reliability, the Flat Dished Head undergoes rigorous inspection procedures. Ultrasonic Testing (UT) is employed to detect internal flaws and discontinuities within the metal. This non-destructive testing method uses high-frequency sound waves to identify cracks, voids, or inclusions that could compromise the integrity of the head. Additionally, Radiographic Testing (RT) is used to examine the internal structure through X-rays or gamma rays, providing a detailed image of any defects or inconsistencies. These inspection techniques ensure that every Flat Dished Head meets stringent safety and quality standards, offering peace of mind to users.

The Flat Dished Head is available in a wide range of dimensions, from as small as 25mm to as large as 5000mm in diameter. This extensive size range allows it to be used in various applications, from small-scale laboratory equipment to large industrial storage tanks. The versatility in size also enables customization to meet specific project requirements, ensuring the perfect fit and optimal performance for each application.

When it comes to transportation, the Flat Dished Head is carefully packaged to prevent damage during transit. Depending on the customer’s needs, the product can be shipped in wooden crates, on pallets, or in customized packaging solutions. This attention to detail in packaging ensures that the heads arrive at their destination in pristine condition, ready for immediate installation.

The Flat Dished Head is an essential component for carbon steel tank ends, heads, and bottoms. Its robust construction and reliable performance make it a preferred choice for industries such as chemical processing, petrochemical, oil and gas, and food processing. Additionally, the availability of stainless steel head options provides excellent corrosion resistance, making them suitable for applications involving aggressive or corrosive media.

In summary, the Flat Dished Head combines advanced hot forming technology with precision casting and forging techniques to deliver a high-quality product that meets diverse industrial needs. Rigorous ultrasonic and radiographic inspections ensure structural integrity and safety, while a broad range of sizes and customizable packaging options make it versatile and convenient for various applications. Whether used as carbon steel tank ends or stainless steel heads, these flat dished heads are engineered to provide reliable performance, durability, and safety in demanding environments.

The GLM Flat Dished Head, model number Cap, is a versatile and reliable component widely used in various industrial applications. Manufactured in China with strict adherence to global standards such as ASME, EN, GB, and JIS, this product guarantees high quality and performance. With certifications including ASME U, R, U2, PED, ABS, TUV, NB, and ISO, the GLM Flat Dished Head ensures compliance with rigorous safety and engineering requirements, making it an ideal choice for pressure vessel manufacturing.

This dish end is specifically designed as a Pressure Vessel Head, providing an essential sealing solution for pressure tanks, boilers, and reactors. Its robust construction, available in materials such as 304L and 316L stainless steel, combined with advanced hot pressing and cold pressing technologies, ensures durability and resistance to corrosion, high pressure, and extreme temperatures. The flat dished head comes in thicknesses of 50mm and dimensions ranging from 25mm to 5000mm, allowing it to fit a wide spectrum of vessel sizes and designs.

In industrial scenarios, the GLM Flat Dished Head is extensively used in chemical processing plants, petrochemical industries, oil and gas refineries, and pharmaceutical manufacturing. Its compliance with ASME code heads standards makes it suitable for critical pressure containment applications where safety and precision are paramount. The product’s ability to withstand high pressure and temperature conditions makes it indispensable in the fabrication of pressure vessels, heat exchangers, and storage tanks.

GLM offers flexible packaging options including wooden cases, wooden pallets, steel pallets, or customized packaging tailored to customer requirements, ensuring safe and secure delivery. With a supply capacity of 50,000 pieces per month and a delivery time ranging from 10 to 30 days, GLM meets both large and small order demands efficiently. Pricing is competitive, ranging from $25 to $125 per piece, and payment terms include L/C, Western Union, and T/T for customer convenience.

Overall, the GLM Flat Dished Head is an excellent solution for engineers and manufacturers seeking high-quality, certified, and customizable dish ends and Pressure Vessel Heads. Its wide application range, from small-scale vessels to large industrial equipment, combined with stringent quality control and certification, makes it a preferred choice in pressure vessel fabrication and related industries.

GLM offers high-quality Flat Dished Head products, also known as flat ends, designed specifically for pressure vessel tank ends, tank heads, and bottoms. Our Flat Dished Heads are manufactured using advanced hot pressing and cold pressing technologies combined with hot forming techniques to ensure superior strength and durability.

Model Number: Cap

Originating from China, our Flat Dished Heads meet a wide range of international certifications including ASMEU, R, U2, PED, ABS, TUV, NB, and ISO, guaranteeing compliance with global quality and safety standards.

We provide a minimum order quantity of 1 piece, with prices ranging between $25 and $125 depending on specifications. Each product is carefully inspected through ultrasonic testing and radiographic testing to ensure flawless performance in pressure vessel applications.

Packaging is customizable according to customer requirements, including wooden cases, wooden pallets, steel pallets, or other preferred methods to ensure safe delivery.

With a supply ability of 50,000 pieces per month and a delivery time of 10-30 days, GLM ensures timely availability to meet your project deadlines. Payment terms are flexible, accepting L/C, Western Union, and T/T.

Choose GLM for reliable, precision-engineered Flat Dished Heads that perfectly fit your pressure vessel tank end, tank head, and bottom needs.

Our Flat Dished Head product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including design specifications, material properties, and installation guidelines to assist in proper application and maintenance.

Our technical support team is available to offer expert advice on selection, customization, and troubleshooting to meet your specific project requirements. We also provide inspection and testing services to guarantee product quality and compliance with industry standards.

Additionally, we offer repair and replacement services to address any defects or issues that may arise during the product's lifecycle. Our commitment is to deliver reliable support and solutions, ensuring that your Flat Dished Head operates efficiently and safely in all applications.

Our Flat Dished Head products are carefully packaged to ensure maximum protection during transit. Each head is wrapped in protective material to prevent scratches and dents, and then securely placed in a sturdy, custom-sized box.

For shipping, we use reliable carriers with tracking options to provide timely delivery and peace of mind. All packages are labeled clearly and handled with care to maintain product integrity from our facility to your destination.

Q1: What is the brand and model number of this Flat Dished Head?

A1: The Flat Dished Head is branded as GLM and the model number is Cap.

Q2: Where is the Flat Dished Head manufactured?

A2: This product is manufactured in China.

Q3: What certifications does the Flat Dished Head have?

A3: It holds several certifications including ASMEU, R, U2, PED, ABS, TUV, NB, and ISO.

Q4: What is the minimum order quantity and price range for the Flat Dished Head?

A4: The minimum order quantity is 1 piece, and the price ranges from $25 to $125 depending on specifications.

Q5: How is the Flat Dished Head packaged and what are the delivery terms?

A5: The product is packaged in wooden cases, wooden pallets, steel pallets, or as per customer requirements. Delivery time ranges from 10 to 30 days.

Q6: What payment methods are accepted for purchasing the Flat Dished Head?

A6: Accepted payment terms include L/C, Western Union, and T/T.

Q7: What is the supply capacity of GLM for the Flat Dished Head?

A7: GLM can supply up to 50,000 pieces per month.
