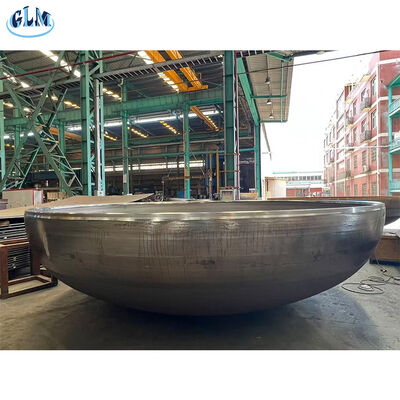

Industrial-grade Polished Elliptical Heads Are Suitable For Pressure Vessels And Industrial Storage Tanks.

The Elliptical Dish Head, also known as Elliptical-Dish-Cap or Elliptical-Dish-End, is a critical component widely used in the manufacturing and construction of pressure vessels, storage tanks, and boilers. Its distinctive elliptical shape offers superior structural strength and efficiency, making it an ideal choice for applications requiring high pressure resistance and durability. Designed to withstand extreme conditions, the Elliptical Dish Head ensures safety and reliability in various industrial environments.

Manufactured using advanced hot pressing and cold pressing technologies, the production of Elliptical-Dish-Head components combines precision engineering with robust material properties. Hot pressing involves shaping the metal at elevated temperatures, which enhances its ductility and reduces internal stresses. Cold pressing, on the other hand, is performed at room temperature and is used to achieve high dimensional accuracy and superior surface finish. The combination of these technologies allows for the creation of Elliptical-Dish-Caps with excellent mechanical properties, ensuring their suitability for demanding applications.

The thickness range of the Elliptical Dish Head spans from 3mm to 50mm, accommodating a wide variety of design requirements and pressure ratings. This versatility allows engineers to select the appropriate thickness based on the specific operating conditions, including pressure, temperature, and the type of stored medium. The reduction ratio of about 10% further optimizes material usage while maintaining the structural integrity of the Elliptical-Dish-End, making it both cost-effective and reliable.

Quality inspection is a vital aspect of the Elliptical Dish Head production process. To guarantee the highest standards, several non-destructive testing (NDT) methods are employed, including Ultrasonic Testing (UT), Radiographic Testing (RT), Magnetic Particle Testing (MT), Penetrant Testing (PT), and Time of Flight Diffraction (TOFD). These inspection techniques ensure that any internal or surface defects are detected early, preventing potential failures during service. The rigorous inspection process confirms that each Elliptical-Dish-Cap meets stringent industry standards and regulatory requirements, providing peace of mind to manufacturers and end-users alike.

Elliptical-Dish-Heads are essential in industries where pressure containment is critical. Their elliptical geometry distributes stress more evenly compared to flat or hemispherical heads, reducing the risk of deformation and failure under pressure. This makes them ideal for pressure vessels used in chemical processing, petrochemical industries, and energy sectors. Additionally, their application in storage tanks allows for efficient containment of liquids and gases, while their use in boilers contributes to safe steam generation under high pressure and temperature conditions.

The design and fabrication of Elliptical-Dish-Ends are tailored to meet customer specifications and standards such as ASME, EN, and GB, ensuring compatibility with existing equipment and adherence to international safety protocols. Manufacturers offer customization options including various diameters, thicknesses, and edge styles to suit different welding and assembly requirements. This flexibility makes the Elliptical-Dish-Head an adaptable solution for a broad range of industrial applications.

In summary, the Elliptical Dish Head stands out as a high-performance, reliable, and versatile component essential for pressure vessels, storage tanks, and boilers. Utilizing cutting-edge hot pressing and cold pressing technologies, combined with comprehensive inspection methods like UT, RT, MT, PT, and TOFD, the Elliptical-Dish-Cap ensures optimal strength and safety. Its thickness range from 3mm to 50mm and a reduction ratio of about 10% provide engineers with the flexibility to design efficient and durable systems. Whether referred to as Elliptical-Dish-End, Elliptical-Dish-Cap, or Elliptical-Dish-Head, this product remains a cornerstone in the field of pressure containment engineering.

The GLM Elliptical Dish Head, also known as the Elliptical-Dish-Head or Elliptical-Dish-End, is a highly versatile product widely used across various industries due to its superior design and manufacturing quality. Originating from China, this product is crafted using advanced hot pressing and cold pressing technology, ensuring a precise reduction ratio of about 10% and adherence to strict manufacturing tolerances. The round head shape of the Elliptical-Head-Dish provides excellent structural integrity, making it ideal for pressure vessels and storage tanks in demanding industrial environments.

This product is especially suitable for manufacturing plants where durability and reliability are paramount. The Elliptical-Dish-End is commonly applied in chemical processing, food and beverage production, and pharmaceutical manufacturing, where it serves as an essential component of pressure vessels and reactors. Its robust construction and compliance with international certifications such as ASME U, R, U2, PED, ABS, TUV, NB, and ISO ensure it meets rigorous safety and quality standards required in these industries.

In the energy and mining sectors, the GLM Elliptical Dish Head plays a critical role in equipment used for oil and gas extraction, mineral processing, and power generation. Its design helps withstand high pressures and extreme conditions, making it a trusted choice for pressure vessel end caps and tank closures. The product’s supply ability of 50,000 pieces per month and flexible packaging options—including wooden cases, pallets, steel pallets, or custom packaging—facilitate large-scale industrial applications and timely delivery within 10 to 30 days.

With a minimum order quantity of just one piece and a price range of $25 to $125, the GLM Elliptical-Head-Dish is accessible for both small-scale operations and large enterprises. Payment terms such as L/C, Western Union, and T/T offer convenience and flexibility for international buyers. Whether for new installations or replacement parts, the Elliptical-Dish-Head delivers consistent performance and longevity, making it an indispensable component in manufacturing plants and energy & mining industries worldwide.

GLM offers high-quality Elliptical-Dish-End product customization services with model number Cap, proudly made in China. Our Elliptical-Head-Dish products are certified by ASMEU, R, U2, PED, ABS, TUV, NB, and ISO, ensuring compliance with international standards.

We provide a minimum order quantity of just 1 piece, with prices ranging from $25 to $125, making it flexible for both small and large scale orders. Packaging options include wooden cases, wooden pallets, steel pallets, or customized packaging as per customer requirements, ensuring safe delivery of each Elliptical-Dish-Head.

Our supply ability reaches up to 50,000 pieces per month, with a delivery time between 10 to 30 days. Payment terms are flexible, including L/C, Western Union, and T/T for your convenience.

The Elliptical-Dish-End is designed to withstand pressures up to 10 MPa, utilizing advanced hot pressing and cold pressing technology. The head shape is round, and the product complies with applicable standards such as ASME, PED, and GB.

Choose GLM for reliable, customizable Elliptical-Head-Dish solutions tailored to meet your specific needs with superior quality and service.

Our Elliptical Dish Head product is designed to deliver superior performance and reliability in various industrial applications. To ensure optimal operation, we provide comprehensive technical support and services tailored to your needs.

Our technical support team is available to assist with installation guidance, troubleshooting, and maintenance procedures to maximize the lifespan and efficiency of your elliptical dish head. We offer detailed documentation, including user manuals and safety instructions, to help you operate the product safely and effectively.

In addition to support, we provide customized services such as product inspections, repair services, and upgrades to meet evolving industry standards. Our experts can also assist in selecting the right specifications and configurations to suit your specific application requirements.

We are committed to ensuring customer satisfaction through prompt and professional service. Whether you need technical advice, spare parts, or on-site assistance, our dedicated team is here to support you every step of the way.

Product Packaging and Shipping for Elliptical Dish Head

The Elliptical Dish Head is carefully packaged to ensure it arrives at your location in perfect condition. Each unit is wrapped in protective foam and placed inside a custom-fitted cardboard box to prevent any damage during transit.

For added safety, multiple layers of packaging materials are used, including bubble wrap and sturdy outer cartons. This multi-layer protection minimizes the risk of dents, scratches, or deformation.

Shipping options include standard ground delivery, expedited shipping, and freight services for bulk orders. All shipments are tracked and insured for your peace of mind.

Handling instructions are clearly marked on the packaging to ensure proper care throughout the shipping process.

If you have any specific packaging or shipping requirements, please contact our customer service team before placing your order.

Q1: What is the brand and model number of the Elliptical Dish Head?

A1: The Elliptical Dish Head is manufactured by GLM and the model number is Cap.

Q2: Where is the Elliptical Dish Head produced?

A2: The Elliptical Dish Head is made in China.

Q3: What certifications does the GLM Elliptical Dish Head have?

A3: The product is certified with ASMEU, R, U2, PED, ABS, TUV, NB, and ISO.

Q4: What is the minimum order quantity and price range for the Elliptical Dish Head?

A4: The minimum order quantity is 1 piece, and the price ranges from $25 to $125 depending on specifications.

Q5: What are the packaging options and delivery time for this product?

A5: Packaging options include wooden cases, wooden pallets, steel pallets, or as per customer's requirements. The delivery time ranges from 10 to 30 days.

Q6: What payment terms does GLM accept for purchasing the Elliptical Dish Head?

A6: GLM accepts payment via L/C (Letter of Credit), Western Union, and T/T (Telegraphic Transfer).

Q7: What is the supply capacity of the GLM Elliptical Dish Head?

A7: GLM can supply up to 50,000 pieces per month.
