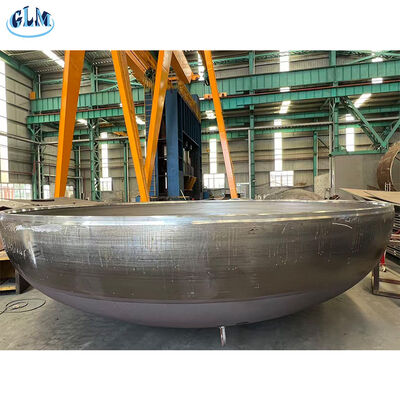

Polished Elliptical Heads Are Suitable For Industrial Pressure Vessels And Storage Tanks, Providing Sealing And Structural Integrity.

Product Description:

The Elliptical Dish Head is a critical component widely used in various industrial applications such as pressure vessels, storage tanks, and boilers. Known for its robust design and reliable performance, the Elliptical-Head-Dish serves as an essential end closure that ensures safety and structural integrity under pressure. Manufactured with precision and adhering to stringent quality standards, this product is a preferred choice for engineers and manufacturers aiming to meet high-performance requirements.

One of the key features of the Elliptical Dish Head is its manufacturing technology. It is produced using advanced hot pressing and cold pressing techniques. These processes enable the formation of the elliptical shape with high dimensional accuracy and excellent material properties. Hot pressing involves heating the metal to a pliable state and then applying pressure to shape the dish, which enhances its strength and durability. Cold pressing, on the other hand, is carried out at or near room temperature, providing a cost-effective method for producing smaller quantities or thinner materials without compromising quality.

The Elliptical-Dish-Cap is designed and manufactured following internationally recognized standards such as ASME, DIN, GB, and JIS. Compliance with these standards ensures that the product meets rigorous safety, quality, and performance criteria required in industrial applications. ASME standards, in particular, are widely regarded in the pressure vessel industry, guaranteeing that the Elliptical Dish Head can withstand the demanding conditions it is subjected to during operation.

Designed to handle pressures of up to 10 MPa, the Elliptical Dish Head offers excellent resistance to high internal pressure, making it suitable for use in pressure vessels and boilers. The ability to withstand such high design pressure is crucial for maintaining the safety and reliability of equipment operating under extreme conditions. This capability ensures that the Elliptical-Dish-Cap can be confidently used in environments where safety cannot be compromised.

Another important attribute of the Elliptical Dish Head is its reduction ratio, which is approximately 10%. This reduction ratio refers to the thickness reduction from the flat blank plate to the formed dish cap, indicating the efficiency of the forming process and the mechanical properties of the final product. A 10% reduction ratio signifies a well-optimized manufacturing process that balances material usage and structural strength, contributing to cost savings without sacrificing performance.

Applications of the Elliptical-Head-Dish span a wide range of industries, including chemical processing, oil and gas, power generation, and water treatment. Its ability to act as a reliable closure for pressure vessels and storage tanks makes it indispensable in maintaining system integrity and preventing leaks or failures. Additionally, the elliptical shape distributes stress more evenly compared to other dish head types, enhancing the lifespan of the equipment it is installed on.

In summary, the Elliptical Dish Head and its variant, the Elliptical-Dish-Cap, are engineered to provide superior performance in demanding industrial environments. Manufactured using hot pressing and cold pressing technologies, and adhering to standards such as ASME, DIN, GB, and JIS, these products offer high design pressure capacity up to 10 MPa and an efficient reduction ratio of about 10%. Their widespread application in pressure vessels, storage tanks, and boilers underscores their importance in ensuring safety, durability, and cost-effectiveness in industrial operations.

Applications:

The GLM Elliptical Dish Head, model number Cap, is a high-quality product originating from China, designed to meet a wide range of industrial applications. Certified by reputable organizations such as ASMEU, R, U2, PED, ABS, TUV, NB, and ISO, this elliptical dish head guarantees superior safety and performance standards. Manufactured using advanced hot pressing and cold pressing technology, it ensures precise shaping and durability, making it an ideal choice for pressure vessels, boilers, and storage tanks.

The elliptical-dish-head is widely used in industries where the structural integrity and corrosion resistance of pressure vessel components are critical. Depending on the material grade selected, the corrosion resistance of the elliptical dish head can be tailored to specific environmental conditions, making it suitable for chemical, petrochemical, oil and gas, and power generation sectors. Its polished or painted surface finish can be customized according to customer requirements, enhancing both aesthetics and protection against harsh operating environments.

Packaging options for the GLM Elliptical-Dish-End are flexible, including wooden cases, wooden pallets, steel pallets, or customized packaging as per customer needs. This ensures the product arrives safely and in optimal condition, regardless of the shipping destination. With a supply capacity of 50,000 pieces per month and a delivery time ranging from 10 to 30 days, GLM can accommodate both small and large orders efficiently, with a minimum order quantity of just one piece, priced between $25 and $125.

The elliptical-dish-end is extensively applied in scenarios such as the fabrication of pressure vessels used in industrial processing plants, where precision and reliability are paramount. It is also utilized in the manufacturing of storage tanks for liquids and gases, where the round head shape provides uniform stress distribution and enhances vessel longevity. Inspection methods like UT, RT, MT, PT, and TOFD are employed to ensure each elliptical dish head meets stringent quality standards before delivery.

Payment terms are customer-friendly, accepting L/C, Western Union, and T/T, making transactions smooth and convenient. Overall, GLM’s Elliptical-Dish-Head offers a versatile, reliable, and certified solution for various industrial pressure vessel applications, ensuring safety, durability, and compliance with international standards.

Customization:

GLM offers high-quality Elliptical-Dish-End products, including the Elliptical-Dish-Cap and Elliptical-Dish-Head, designed to meet diverse industrial needs. Our products, model number Cap, are manufactured in China and certified by ASMEU, R, U2, PED, ABS, TUV, NB, and ISO, ensuring top-notch quality and compliance.

We provide a minimum order quantity of 1 piece, with prices ranging from $25 to $125 depending on specifications. Packaging options include wooden cases, wooden pallets, steel pallets, or customized packaging as per customer requirements to ensure safe delivery.

Delivery time ranges from 10 to 30 days, supported by flexible payment terms such as L/C, Western Union, and T/T. Our supply capability reaches up to 50,000 pieces per month, making us a reliable supplier for large-scale projects.

The corrosion resistance of our Elliptical-Dish-End products depends on the chosen material grade, guaranteeing durability in various environments. Each product undergoes rigorous testing including hydrostatic, ultrasonic, and visual inspections, with additional inspection methods such as UT, RT, MT, PT, and TOFD to ensure flawless quality.

Design pressure for our Elliptical-Dish-Cap and Elliptical-Dish-Head products can reach up to 10 MPa, making them suitable for high-pressure applications. Trust GLM for customized, reliable, and certified Elliptical-Dish-End solutions tailored to your specific requirements.

Support and Services:

Our Elliptical Dish Head product is designed to provide superior performance and durability for various industrial applications. It features a robust elliptical shape that ensures optimal pressure distribution and structural integrity.

For technical support, our team of experts is available to assist with installation guidance, maintenance tips, and troubleshooting advice to help you maximize the efficiency and lifespan of your elliptical dish head.

We offer comprehensive services including custom fabrication, quality inspections, and compliance certifications to meet your specific project requirements. Our commitment to quality and customer satisfaction guarantees reliable support throughout the product lifecycle.

Please refer to the product manual for detailed specifications, safety instructions, and recommended operating conditions to ensure safe and effective use of the elliptical dish head.

Packing and Shipping:

Product Packaging: The Elliptical Dish Head is carefully packaged using high-quality, durable materials to ensure protection during transit. Each unit is wrapped in protective foam and placed inside a sturdy cardboard box. The packaging is designed to prevent damage from shocks, vibrations, and moisture, maintaining the product's integrity until it reaches the customer.

Shipping: We offer reliable shipping options worldwide. The Elliptical Dish Head is shipped via trusted carriers with tracking available for all orders. Standard shipping typically takes 5-10 business days, while expedited options are available for faster delivery. All shipments are handled with care to ensure timely and safe arrival.

FAQ:

Q1: What is the brand and model number of the Elliptical Dish Head?

A1: The Elliptical Dish Head is branded as GLM with the model number Cap.

Q2: Where is the Elliptical Dish Head manufactured?

A2: The product is made in China.

Q3: What certifications does the GLM Elliptical Dish Head have?

A3: It is certified with ASMEU, R, U2, PED, ABS, TUV, NB, and ISO.

Q4: What is the minimum order quantity and price range for this product?

A4: The minimum order quantity is 1 piece, and the price ranges from $25 to $125 depending on specifications.

Q5: What packaging and delivery options are available for the Elliptical Dish Head?

A5: Packaging options include wooden cases, wooden pallets, steel pallets, or as per customer's requirement. Delivery time ranges from 10 to 30 days.

Q6: What payment terms does GLM accept for purchasing the Elliptical Dish Head?

A6: Payment terms include L/C, Western Union, and T/T.

Q7: What is the supply capacity of the GLM Elliptical Dish Head?

A7: GLM can supply up to 50,000 pieces per month.
