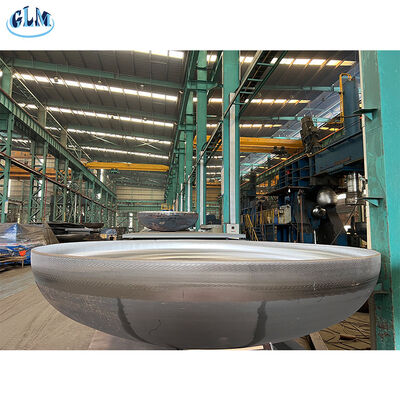

Elliptical Dish Head Cold-formed And Polished Suitable For The Production Of Industrial Pressure Vessels And Storage Tank Components

Product Description:

The Elliptical Dish Head, also known as the Elliptical-Head-Dish, represents a superior choice in pressure vessel components, combining both functionality and durability. Manufactured using advanced stamping technology, this elliptical 2:1 dish head is designed to meet high standards of precision and performance, making it an essential part of various industrial applications. The elliptical shape of the Elliptical-Dish-Head offers an optimal balance of strength and material efficiency, ensuring that pressure vessels can safely withstand demanding internal pressures.

One of the standout features of this Elliptical-Head-Dish is its design pressure capability, which can handle pressures up to 10 MPa. This high design pressure rating makes it suitable for use in a wide range of industries, including chemical processing, petrochemical, energy, and manufacturing sectors where robust pressure containment is critical. The elliptical geometry helps distribute stress evenly across the surface, significantly reducing the risk of deformation or failure under pressure. This structural advantage is a key reason why elliptical heads are preferred over other head shapes such as hemispherical or flat heads in high-pressure applications.

The manufacturing process of the Elliptical Dish Head employs precision stamping technology. Stamping ensures that each elliptical head is produced with consistent quality, tight dimensional control, and a smooth finish. This technology allows for efficient mass production while maintaining the integrity and performance of each Elliptical-Head-Dish. Additionally, the stamping process helps achieve a tight tolerance of ±0.5mm, which is critical for ensuring a perfect fit when assembling pressure vessels and other equipment. Such precision minimizes the need for additional machining or adjustments, thereby reducing lead times and overall production costs.

The elliptical 2:1 ratio of this Elliptical-Dish-Head refers to the specific geometric proportion between the major and minor axes of the elliptical shape. This ratio is widely recognized in industry standards as optimal for balancing pressure resistance and material usage. The 2:1 elliptical head design maximizes the internal volume of the vessel while maintaining a compact profile. This is particularly beneficial in applications where space constraints are a concern but high pressure containment is non-negotiable. The elliptical shape also facilitates easy cleaning and maintenance, which is essential for industries with strict hygiene and safety requirements.

From a practical perspective, the Elliptical-Head-Dish is highly versatile. It can be used as end caps for pressure vessels, reactors, boilers, and storage tanks. Its robust design supports both internal and external pressure conditions, making it adaptable for a variety of process environments. Moreover, the material used in producing these heads can be tailored to meet specific corrosion resistance, temperature tolerance, and mechanical strength requirements, further enhancing their applicability across different industrial sectors.

In terms of installation, the Elliptical Dish Head’s precise tolerance of ±0.5mm ensures an accurate and secure fit with the cylindrical sections of pressure vessels. This precision reduces the likelihood of leaks and structural weaknesses at the joints, contributing to the overall safety and longevity of the vessel. The combination of the elliptical shape, stamping technology, and stringent tolerance control exemplifies the advanced engineering behind the Elliptical-Head-Dish, positioning it as a reliable and efficient solution for pressure vessel construction.

In summary, the Elliptical Dish Head is an expertly engineered component that offers excellent pressure resistance, material efficiency, and manufacturing precision. Its elliptical 2:1 design ratio, coupled with stamping technology, allows it to withstand design pressures up to 10 MPa with a tight tolerance of ±0.5mm. Whether referred to as an Elliptical-Head-Dish or Elliptical-Dish-Head, this product is a testament to modern industrial design and manufacturing excellence, making it an indispensable element for high-pressure vessel applications worldwide.

Applications:

The GLM Elliptical Dish Head, model number Cap, is a versatile and high-quality component widely used in various industrial applications. Manufactured in China, this elliptical-dish-cap is designed to meet stringent standards with certifications including ASMEU, R, U2, PED, ABS, TUV, NB, and ISO, ensuring reliability and safety in demanding environments. The elliptical-head-dish features a unique elliptical 2:1 dish head design, which is ideal for pressure vessels and storage tanks requiring a robust and efficient closure.

With a design pressure capability of up to 10 MPa, the GLM elliptical-dish-cap is suitable for use in industries such as chemical processing, petrochemical, oil and gas, pharmaceuticals, and food and beverage production. Its ability to withstand high pressure makes it an excellent choice for pressure vessels, reactors, boilers, and heat exchangers where maintaining structural integrity is critical.

The elliptical-dish-cap is produced using advanced stamping technology and can be formed through hot forming or cold forming methods, ensuring precision and durability. This flexibility in the forming process allows for customization to meet specific project requirements and customer specifications. The product’s supply ability of 50,000 pieces per month guarantees timely availability for large-scale industrial projects.

Packaging options for the GLM elliptical-head-dish include wooden cases, wooden pallets, steel pallets, or customized packaging as per customer requirements, ensuring safe transportation and delivery. With a delivery time of 10-30 days and flexible payment terms such as L/C, Western Union, and T/T, GLM provides efficient service for both small and large orders, with a minimum order quantity of just one piece.

Price ranges from $25 to $125 depending on size and specifications, making the elliptical-dish-cap a cost-effective solution without compromising quality. Whether used in new installations or as replacement parts, the GLM elliptical-head-dish is designed to perform reliably in a wide range of industrial applications, providing excellent pressure resistance, structural strength, and long service life.

In summary, the GLM Elliptical-Dish-Cap is an essential component for industries requiring durable, certified, and precision-engineered elliptical heads. Its application occasions include pressure vessel fabrication, chemical storage, high-pressure reactors, and any scenario demanding a reliable elliptical-head-dish solution capable of operating safely under high pressure conditions.

Customization:

GLM offers high-quality Elliptical-Dish-Cap products, designed and manufactured with precision in China. Our Elliptical-Head-Dish models, including the Cap series, comply with international certifications such as ASMEU, R, U2, PED, ABS, TUV, NB, and ISO, ensuring reliable performance and safety.

We specialize in product customization services for Elliptical-Dish-Head components with a minimum order quantity of just 1 piece, priced between $25 and $125. Each product can be packaged according to customer requirements, including wooden cases, wooden pallets, steel pallets, or other specified packaging options.

Our manufacturing process utilizes advanced stamping technology combined with pressing, spinning, and welding methods. The surface finish options include bare and sandblasting to meet varied application needs. The Elliptical-Dish-Cap is designed to withstand pressures up to 10 MPa, making it suitable for demanding applications such as water conservancy and electric power industries.

With a supply capacity of 50,000 pieces per month, GLM ensures timely delivery within 10 to 30 days. Payment terms are flexible, including L/C, Western Union, and T/T, to facilitate smooth transactions for all clients.

Support and Services:

Our Elliptical Dish Head product is designed to meet the highest standards of quality and performance. For technical support, please ensure you have the product model and serial number available when seeking assistance. Our support team is equipped to help with installation guidance, troubleshooting, maintenance tips, and warranty information.

We recommend regular inspection of the elliptical dish head for any signs of wear or damage to maintain optimal functionality. Detailed user manuals and installation guides are available to help you get the most out of your product.

For service inquiries, we provide authorized repair and replacement services to ensure your elliptical dish head remains in excellent working condition. Our technicians are trained to handle all aspects of service with professionalism and efficiency.

Please refer to the product documentation for detailed specifications and safety instructions before operation. Adhering to these guidelines will help ensure safe and effective use of your elliptical dish head.

Packing and Shipping:

Product Packaging: The Elliptical Dish Head is securely packaged using high-quality, durable materials to ensure safe transportation. Each unit is individually wrapped with protective foam and placed in a custom-fitted box to prevent any movement or damage during shipping. The packaging is designed to be eco-friendly and recyclable, minimizing environmental impact.

Shipping: We offer reliable shipping options to deliver the Elliptical Dish Head promptly and safely to your location. All orders are processed within 1-2 business days and shipped via trusted carriers with tracking information provided. Shipping costs and delivery times vary depending on the destination. We also offer expedited shipping options for urgent orders.

FAQ:

Q1: What is the brand and model number of the Elliptical Dish Head?
A1: The Elliptical Dish Head is branded as GLM and the model number is Cap.

Q2: Where is the Elliptical Dish Head manufactured?
A2: It is manufactured in China.

Q3: What certifications does the Elliptical Dish Head have?
A3: The product is certified with ASMEU, R, U2, PED, ABS, TUV, NB, and ISO.

Q4: What is the minimum order quantity and price range for this product?
A4: The minimum order quantity is 1 piece, and the price ranges from $25 to $125 depending on specifications.

Q5: What are the packaging and delivery details for the Elliptical Dish Head?
A5: Packaging options include wooden cases, wooden pallets, steel pallets, or as per customer's requirements. Delivery time is typically between 10 to 30 days.

Q6: What payment methods are accepted for purchasing the Elliptical Dish Head?
A6: Payment terms include L/C, Western Union, and T/T.

Q7: What is the monthly supply capacity for the Elliptical Dish Head?
A7: The supply ability is 50,000 pieces per month.
