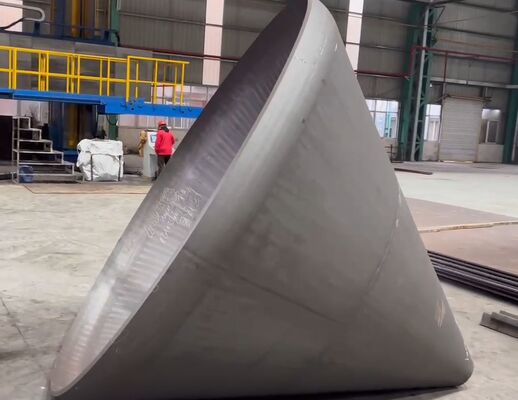

Precision Engineered Conical Tank Heads with X-ray Welding and Overlay Clad Technique for Heat Treatment

Conical Tank Heads, also commonly referred to as Conical Dish Heads or simply Cones, are essential components widely used in the fabrication of pressure vessels, storage tanks, and various industrial containers. These heads are designed with a conical shape that allows for efficient distribution of pressure and stress, making them suitable for a range of applications involving different pressure conditions. Manufactured using the overlay clad technique, these Conical Tank Heads offer enhanced durability and resistance to corrosion, ensuring long-lasting performance even in demanding environments.

The manufacturing process of these Conical Dish Heads involves overlay cladding, a method where a corrosion-resistant alloy layer is metallurgically bonded to the base metal. This technique significantly improves the corrosion resistance and mechanical properties of the Conical Tank Heads, making them ideal for use in industries such as chemical processing, petrochemical, oil and gas, and power generation. The overlay clad manufacturing way not only extends the service life of the heads but also provides superior protection against harsh chemicals, high temperatures, and mechanical wear.

One of the key features of these Conical Dish Heads is their ability to withstand a wide range of pressure conditions. They are designed to operate effectively under atmospheric, low, medium, and high-pressure environments. This versatility makes the Conical Tank Heads suitable for various applications, from simple atmospheric storage tanks to high-pressure reactors and vessels. The conical design ensures uniform stress distribution and minimizes the chances of structural failure, enhancing the safety and reliability of the tanks in which they are installed.

Quality assurance is a critical aspect of the production of these Conical Dish Heads. Each unit undergoes rigorous testing to ensure its integrity and performance. The testing procedures include 100% Dye Penetrant Testing (DPT), Ultrasonic Testing (UT), and Radiographic Testing (RT) of the weld joints. These non-destructive testing methods help detect any surface or internal defects in the welds, ensuring that the Conical Tank Heads meet stringent quality standards. By guaranteeing the weld joint’s soundness, manufacturers provide customers with products that are safe, reliable, and compliant with industry regulations.

The surface of the Conical Tank Heads is subjected to heat treatment processes, which play a vital role in enhancing their mechanical properties. Heat treatment helps to relieve internal stresses, improve toughness, and increase the overall strength of the Conical Dish Heads. This treatment ensures that the heads can endure the thermal and mechanical stresses encountered during their service life without deforming or cracking. Additionally, a properly heat-treated surface contributes to better resistance against corrosion and wear, further extending the lifespan of the Conical Tank Heads.

Conical Tank Heads, or Conical Dish Heads, are indispensable components in the design and construction of storage and pressure vessels. Their conical shape, combined with the advanced overlay clad manufacturing method, makes them highly reliable under various pressure conditions, ranging from atmospheric to high pressure. The comprehensive testing procedures, including 100% DPT, UT, and RT of weld joints, ensure that each head delivered is of the highest quality and free from defects. Furthermore, the heat-treated surface enhances mechanical strength and durability, making these Conical Dish Heads suitable for the most demanding industrial applications.

In summary, these Conical Tank Heads stand out due to their robust construction, versatility in pressure handling, and superior corrosion resistance thanks to overlay cladding. Whether referred to as Conical Dish Heads or Cones, they provide an effective solution for industries requiring dependable, high-performance tank heads. Their meticulous manufacturing process, combined with stringent testing and surface treatment, guarantees a product that meets and exceeds customer expectations for safety, durability, and efficiency.

The GLM Conical Tank Heads, model number Cap, are precision-engineered components designed for a wide range of industrial applications. Manufactured in China, these tank heads meet rigorous quality standards and come with multiple certifications including ASMEU, R, U2, U3, PRT, PED, ABS, TUV, NB, and ISO, ensuring their reliability and safety in demanding environments. With a supply capacity of 50,000 pieces per month, GLM is well-equipped to fulfill both small and large orders, starting from a minimum order quantity of just one piece.

These conical tank heads are primarily used as ASME Heads, Dish Heads, and Cone Heads in various pressure vessels, storage tanks, and reactors. Their versatile design allows them to be integrated into tanks and vessels of different sizes, ranging from 25mm to 5000mm in dimensions, with a top ID of 2600mm. The heads are made from high-quality materials such as carbon steel, stainless steel, and alloy steel, providing excellent strength and corrosion resistance for long-term service life.

The sandy-blasting surface treatment enhances the appearance and prepares the tank heads for further coating or painting, making them suitable for both indoor and outdoor applications. Packaging is handled carefully, with options including wooden cases, wooden pallets, steel pallets, or customized packaging according to customer requirements, ensuring safe delivery.

GLM conical tank heads are ideal for industries such as chemical processing, oil and gas, food and beverage, pharmaceuticals, and water treatment. They are used in occasion scenarios where pressure containment, structural integrity, and durability are critical. Whether it’s for building new storage tanks, replacing worn-out heads, or designing custom pressure vessels, GLM’s conical tank heads provide a reliable and cost-effective solution priced between $25 and $125 per piece.

Customers can expect delivery within 10 to 30 days, depending on order size and specifications. Payment terms are flexible, accepting L/C, Western Union, and T/T, making transactions convenient for international clients. Shipping is available from Wuhan or Shanghai ports, facilitating smooth logistics and timely arrival of products. Overall, GLM’s conical tank heads combine quality, compliance, and versatility, making them the preferred choice for ASME Head, Dish Head, and Cone Head applications worldwide.

GLM offers comprehensive product customization services for Conical Tank Heads, ensuring each ASME Head meets your precise requirements. Our Cap model is manufactured in China with certifications including ASMEU, R, U2, U3, PRT, PED, ABS, TUV, NB, and ISO, guaranteeing top-quality standards and compliance.

We specialize in producing Cones using premium materials such as Carbon Steel, Stainless Steel, and Alloy Steel to suit various applications. Our Carbon Steel Head options are designed for atmospheric, low, medium, and high-pressure environments, crafted through advanced overlay clad manufacturing techniques.

Each order is carefully welded using X-ray inspection to ensure durability and safety. We accommodate minimum order quantities starting from 1 piece, with a competitive price range of $25 to $125 per unit.

Packaging is tailored to customer needs, including wooden cases, wooden pallets, steel pallets, or customized solutions. Delivery times range from 10 to 30 days, supported by a supply ability of 50,000 pieces per month.

Flexible payment terms are available, including L/C, Western Union, and T/T. Orders are shipped via Wuhan or Shanghai Port, ensuring efficient and reliable logistics for your Conical Tank Heads.

Our Conical Tank Heads are designed for durability and efficiency in various industrial applications. To ensure optimal performance and longevity, it is important to follow proper installation, maintenance, and handling procedures.

For installation, always verify the dimensions and specifications of the conical tank heads to match your tank requirements. Use appropriate lifting equipment to avoid damage during handling. Ensure all welding and assembly comply with industry standards and safety regulations.

Regular maintenance includes inspecting the tank heads for any signs of corrosion, cracks, or deformation. Clean the surfaces periodically to prevent buildup of debris or contaminants. If any damage is detected, consult with a qualified technician to assess repair or replacement options.

Our technical support team is available to assist with product selection, installation guidance, and troubleshooting. We recommend consulting the product manual for detailed instructions and safety information before use.

For any further technical inquiries or service requests, please refer to the official documentation provided with the product.

The Conical Tank Heads are carefully packaged to ensure maximum protection during transit. Each head is wrapped with protective materials such as bubble wrap or foam padding to prevent scratches and dents. They are then placed in sturdy, custom-sized cardboard boxes designed to withstand handling and stacking.

For shipping, the packaged Conical Tank Heads are securely loaded onto pallets and shrink-wrapped to avoid movement. We offer multiple shipping options including standard ground, expedited, and freight services to meet customer needs. All shipments are tracked and insured to guarantee safe and timely delivery.

Q1: What is the brand and model number of the Conical Tank Heads?

A1: The Conical Tank Heads are manufactured by GLM and the model number is Cap.

Q2: Where are the Conical Tank Heads produced?

A2: They are produced in China.

Q3: What certifications do the Conical Tank Heads have?

A3: The product is certified with ASMEU, R, U2, U3, PRT, PED, ABS, TUV, NB, and ISO certifications.

Q4: What is the minimum order quantity and price range for the Conical Tank Heads?

A4: The minimum order quantity is 1 piece, and the price ranges from $25 to $125 per piece.

Q5: What are the packaging options and delivery time for these tank heads?

A5: Packaging options include wooden cases, wooden pallets, steel pallets, or packaging as per customer's requirement. Delivery time ranges from 10 to 30 days.

Q6: What are the payment terms for purchasing Conical Tank Heads from GLM?

A6: Payment can be made via L/C, Western Union, or T/T.

Q7: What is the supply capacity of GLM for Conical Tank Heads?

A7: GLM can supply up to 50,000 pieces of Conical Tank Heads per month.
