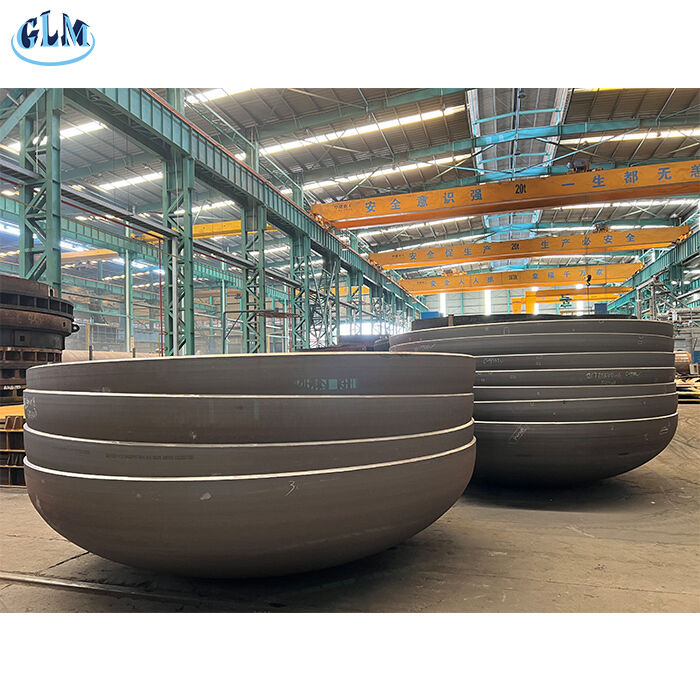

ASME Certified Elliptical Dish Head with 2950mm Diameter and Polished Surface

Product Description:

The Elliptical Dish Head is a specialized component widely used in various industrial applications, particularly in the fabrication of pressure vessels, storage tanks, and other cylindrical containers. With a diameter of 2950mm, this product is designed to provide superior strength and durability while maintaining a lightweight structure. The elliptical shape of the dish head offers enhanced resistance to internal pressure, making it an ideal choice for industries requiring reliable and robust end caps for their equipment.

Manufactured using an advanced spinning manufacturing process, the Elliptical Dish Head ensures precision and consistency in every unit produced. This process involves rotating a metal blank at high speeds while applying force to shape the metal into the desired elliptical form. The spinning technique not only guarantees uniform thickness and smooth contours but also improves the mechanical properties of the material by refining its grain structure. As a result, the Elliptical-Dish-Cap produced through this method exhibits excellent strength-to-weight ratio and superior performance under extreme conditions.

The surface finish of the Elliptical-Dish-Head can be customized to meet various operational requirements. Available options include polished, painted, and sandblasted finishes. A polished surface finish provides a sleek, reflective appearance that is not only aesthetically pleasing but also minimizes corrosion by reducing surface roughness. Painted finishes offer additional protection against environmental factors such as moisture, chemicals, and UV exposure, thereby extending the lifespan of the Elliptical-Head-Dish. Sandblasted finishes, on the other hand, create a textured surface that enhances the adhesion of coatings or paints, making it suitable for applications requiring further surface treatment.

One of the key advantages of the Elliptical Dish Head lies in its elliptical geometry, which differs significantly from standard hemispherical or flat dish heads. The elliptical shape allows for a more efficient distribution of stress across the surface, reducing the likelihood of deformation or failure under pressure. This makes the Elliptical-Dish-Cap particularly suitable for high-pressure vessels where safety and reliability are paramount. Additionally, the elliptical design enables a lower profile compared to hemispherical heads, which can be beneficial in installations with height restrictions or space constraints.

In terms of material compatibility, the Elliptical-Dish-Head can be fabricated from a variety of metals, including carbon steel, stainless steel, and alloy steel, depending on the specific application and environmental conditions. The versatility in material selection further enhances the applicability of the Elliptical-Head-Dish across different sectors such as chemical processing, oil and gas, power generation, and food and beverage industries.

Installation and integration of the Elliptical Dish Head into existing systems are facilitated by its precise dimensions and consistent quality control during manufacturing. The 2950mm diameter ensures compatibility with standard cylindrical shells, allowing for seamless assembly and welding. Furthermore, the uniform thickness achieved through the spinning manufacturing process simplifies stress analysis and design verification, contributing to safer and more efficient engineering solutions.

In summary, the Elliptical Dish Head is a highly reliable and versatile end cap solution featuring a 2950mm diameter, produced through a state-of-the-art spinning manufacturing process. Its elliptical shape provides excellent pressure resistance and efficient stress distribution, while the availability of polished, painted, and sandblasted surface finishes caters to diverse functional and aesthetic requirements. Whether referred to as an Elliptical-Dish-Cap, Elliptical-Dish-Head, or Elliptical-Head-Dish, this product stands out as an essential component in the construction of pressure vessels and storage tanks, delivering performance, durability, and safety across a wide range of industrial applications.

Applications:

The GLM Elliptical Dish Head, model number Cap, is a high-quality product originating from China, designed to meet the stringent requirements of various industrial applications. Certified by renowned authorities such as ASMEU, R, U2, PED, ABS, TUV, NB, and ISO, this Elliptical-Dish-Cap ensures reliable performance and safety in demanding environments. With a thickness of 76mm, it is engineered to provide optimal strength and durability, making it an ideal choice for manufacturing plants and the energy & mining sectors.

One of the primary application occasions for the GLM Elliptical-Head-Dish is in pressure vessels and storage tanks used in manufacturing plants. Its elliptical shape allows for efficient stress distribution, minimizing deformation and extending the lifespan of the equipment. This makes it particularly suitable for industries that handle high-pressure fluids or gases, ensuring operational safety and compliance with international standards.

In the energy and mining industries, the Elliptical-Dish-Head plays a critical role in processing and storage units. It can be used in boilers, heat exchangers, and reactors where pressure containment is crucial. The robust construction and precise design of this elliptical head help withstand harsh operating conditions, including high pressure and temperature variations, thus enhancing equipment reliability and reducing maintenance costs.

The product is available with flexible packaging options including wooden cases, wooden pallets, steel pallets, or customized packaging according to the customer’s requirements. This ensures safe delivery and easy handling at the port of Shanghai. With a delivery time ranging from 10 to 30 days and a supply ability of up to 50,000 pieces per month, GLM guarantees timely fulfillment of orders regardless of scale.

Customers can purchase the GLM Elliptical Dish Head with a minimum order quantity of just one piece, making it accessible for both small and large-scale projects. The price range of $25 to $125 accommodates different budget needs while maintaining excellent quality. Payment terms are flexible, accepting L/C, Western Union, and T/T, facilitating smooth transactions worldwide.

Overall, the GLM Elliptical-Dish-Cap is a versatile and dependable product tailored for critical industrial applications. Its advanced certifications, superior manufacturing standards, and adaptable supply chain make it a preferred choice for engineers and procurement professionals seeking high-performance elliptical heads for their pressure vessels and storage systems.

Customization:

GLM offers premium Elliptical Dish Head products, also known as Elliptical-Dish-End or Elliptical-Head-Dish, designed to meet diverse industrial needs. Our model Cap Elliptical Dish Head is manufactured in China and certified with ASMEU, R, U2, PED, ABS, TUV, NB, and ISO standards, ensuring high quality and reliability.

We provide a minimum order quantity of just 1 piece, with prices ranging from $25 to $125 depending on specifications. The product features a diameter of 2950mm and comes with edge types including Straight Edge and Rolled Edge to suit your application.

Surface finishes are available in Polished, Painted, or Sandblasted options to match your requirements. Packaging is handled with care using Wooden Cases, Wooden Pallets, Steel Pallets, or customized packaging as per customer needs.

Our supply ability reaches up to 50,000 pieces per month, ensuring timely delivery within 10 to 30 days. Payment terms include L/C, Western Union, and T/T for your convenience.

Choose GLM Elliptical Dish Heads for durable, certified, and customizable Elliptical-Dish-End solutions that fit your project perfectly.

Support and Services:

Our Elliptical Dish Head product is designed to meet high standards of durability and performance in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, maintenance tips, and troubleshooting advice to ensure optimal functionality of the product.

We offer detailed documentation covering specifications, material compatibility, and design parameters to help you integrate the Elliptical Dish Head seamlessly into your systems. Our technical team is equipped to support customizations and answer any queries related to product features and usage.

Additionally, we provide services such as on-site inspections, repair solutions, and replacement parts to extend the lifespan of your Elliptical Dish Head. Regular updates and service bulletins are available to keep you informed about the latest improvements and best practices.

Our commitment is to deliver reliable technical support and services that enhance your experience and ensure the highest level of satisfaction with the Elliptical Dish Head product.

Packing and Shipping:

Product Packaging and Shipping for the Elliptical Dish Head:

The Elliptical Dish Head is carefully packaged to ensure it arrives in perfect condition. Each unit is wrapped in protective materials and placed in a sturdy, custom-sized box to prevent movement during transit. Additional padding is used to safeguard against shocks and vibrations.

For shipping, we offer multiple options including standard ground, expedited, and freight services. All packages are labeled with clear handling instructions and tracking information is provided. We work with trusted carriers to ensure timely and secure delivery to your specified destination.

FAQ:

Q1: What is the brand and model number of the Elliptical Dish Head?

A1: The Elliptical Dish Head is manufactured by GLM and the model number is Cap.

Q2: Where is the Elliptical Dish Head produced?

A2: The Elliptical Dish Head is made in China.

Q3: What certifications does the Elliptical Dish Head have?

A3: The product holds multiple certifications including ASMEU, R, U2, PED, ABS, TUV, NB, and ISO.

Q4: What is the minimum order quantity and price range for the Elliptical Dish Head?

A4: The minimum order quantity is 1 piece, with prices ranging from $25 to $125 depending on specifications and quantity.

Q5: What are the packaging options and delivery time for this product?

A5: Packaging can be done using wooden cases, wooden pallets, steel pallets, or according to customer requirements. Delivery time is typically between 10 to 30 days.

Q6: What payment terms are accepted for purchasing the Elliptical Dish Head?

A6: Accepted payment methods include L/C, Western Union, and T/T.

Q7: How many pieces of the Elliptical Dish Head can GLM supply per month?

A7: GLM has a supply ability of 50,000 pieces per month.
