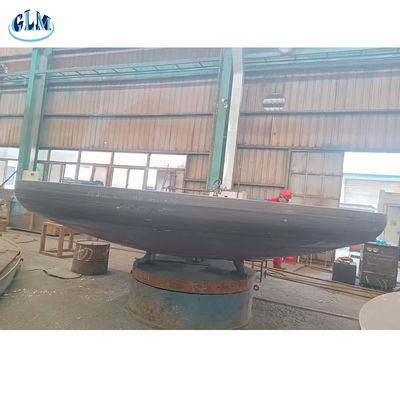

ASME Standard Torispherical Dished Head with Heat Treatment and UT RT Inspection for Pressure Vessels

Product Description:

The Torispherical Dished Head is a specialized component designed for use in a variety of industrial applications, particularly in the construction of pressure vessels. Manufactured to meet rigorous standards such as ASME, DIN, JIS, and other international specifications, this product ensures exceptional quality, safety, and reliability. The torispherical shape of the dished head provides an ideal balance between structural integrity and material efficiency, making it a preferred choice for many engineers and designers in the industry.

One of the key attributes of this Torispherical Dished Head is its thickness of 14mm, which offers robust strength to withstand high internal pressures commonly encountered in applications involving petroleum, filter vessels, reactors, and other demanding environments. The thickness ensures durability and resistance to deformation, contributing significantly to the overall safety and longevity of the pressure vessels in which it is installed.

The carbon steel torispherical head is crafted from high-quality carbon steel, a material known for its excellent mechanical properties, including high tensile strength, good weldability, and resistance to corrosion under certain conditions. Carbon steel is widely used in the manufacturing of pressure vessel heads due to its cost-effectiveness and ability to perform well under high-pressure and high-temperature conditions. This makes the carbon steel torispherical head an ideal component for critical applications in the petroleum industry, chemical processing plants, and filtration systems.

Technically, the production of the torispherical dished head involves advanced manufacturing techniques such as hot pressing and cold pressing. Hot pressing is employed to shape the steel at elevated temperatures, allowing for precise forming while maintaining the material’s structural properties. Cold pressing, on the other hand, is used to refine the shape and surface finish at room temperature, ensuring dimensional accuracy and a smooth surface. The combination of these technics results in pressure vessel heads that meet stringent quality standards and perform reliably under operational stresses.

The torispherical shape itself is characterized by a spherical crown with a toroidal knuckle, which helps to distribute stresses evenly across the head. This design minimizes stress concentrations, reducing the risk of failure and extending the service life of the pressure vessel heads. Compared to other head shapes such as hemispherical or elliptical, the torispherical dished head offers a cost-effective solution with a good compromise between fabrication complexity and mechanical performance.

In practical applications, torispherical dished heads are commonly used in petroleum storage tanks, filter vessels, and various types of reactors where pressure containment is critical. Their ability to handle fluctuating pressures and resist deformation under heavy loads makes them indispensable in these sectors. Additionally, compliance with international standards like ASME, DIN, and JIS ensures that these heads can be integrated seamlessly into global projects, meeting local regulatory requirements and industry codes.

In summary, the Torispherical Dished Head is a vital component in the manufacture and maintenance of pressure vessels. With a thickness of 14mm, made from robust carbon steel, and shaped using precise hot and cold pressing techniques, it offers a reliable and efficient solution for industries requiring durable pressure vessel heads. Its adherence to major standards such as ASME, DIN, and JIS further guarantees quality and safety, making it an excellent choice for petroleum, filter vessels, reactors, and other demanding applications. Choosing this carbon steel torispherical head means investing in a product that combines superior mechanical properties with proven performance, ensuring long-term operational success in pressure vessel construction.

Applications:

The GLM Torispherical Dished Head, model number Cap, is a premium-quality pressure vessel head manufactured in China, designed to meet the rigorous demands of various industrial applications. Certified with ASMEU, R, U2, PED, ABS, TUV, NB, and ISO standards, this product guarantees reliability and safety in critical operations. With a supply capability of 50,000 pieces per month, GLM ensures timely delivery within 10 to 30 days, catering to both small and large-scale projects with a minimum order quantity of just 1 piece.

Made from high-grade materials such as carbon steel, stainless steel, and special alloys, the torispherical bottom is engineered to provide excellent corrosion resistance, making it ideal for harsh environments. The dish end heads are subjected to rigorous inspection methods including UT, RT, MT, PT, and TOFD, ensuring each piece meets stringent quality standards. GLM’s packaging is customizable, offering wooden cases, wooden pallets, steel pallets, or any specific packaging as per customer requirements, ensuring safe transportation and storage.

This torispherical dished head is widely used in the construction of pressure vessel heads, filter vessels, reactors, and various petroleum industry applications. Its unique dished shape offers superior strength and durability under high pressure, making it a preferred choice for pressure vessel manufacturers. The torispherical bottom design not only improves structural integrity but also optimizes the internal volume, enhancing operational efficiency.

Customers can benefit from flexible payment terms including L/C, Western Union, and T/T, making procurement convenient and secure. Priced competitively between $25 and $125, GLM’s dish end heads provide exceptional value without compromising on quality. Whether for new installations or replacements, these pressure vessel heads meet the critical demands of modern industrial processes, ensuring safety, longevity, and performance.

In summary, GLM’s torispherical dished heads are essential components for industries requiring robust and reliable pressure vessel heads. Their application spans petroleum, chemical processing, filtration systems, and reactor vessels, where corrosion resistance and mechanical strength are paramount. By choosing GLM, customers gain access to expertly crafted torispherical bottoms that stand up to challenging conditions, backed by comprehensive certifications and professional inspection.

Customization:

GLM offers high-quality Torispherical Dished Heads, also known as Torisherical Dish Heads, designed to meet diverse industrial needs. Our Cap model is manufactured in China with certifications including ASMEU, R, U2, PED, ABS, TUV, NB, and ISO, ensuring compliance with international standards.

These Torisherical Dish Heads are made from premium carbon steel head material, providing excellent corrosion resistance and durability. With a diameter of 4200mm and a thickness of 14mm, our dished heads are produced using advanced hot pressing and cold pressing techniques, as well as hot forming and cold forming methods to guarantee superior quality and performance.

We cater to both small and large orders with a minimum order quantity of just 1 piece, and a supply ability of 50,000 pieces per month. Pricing ranges from $25 to $125 depending on specifications. Packaging options include wooden cases, wooden pallets, steel pallets, or customized packaging as per customer requirements.

Delivery time is typically between 10 to 30 days. Payment terms are flexible, accepting L/C, Western Union, and T/T methods. Choose GLM for reliable and efficient Torispherical Dished Heads for your projects.

Support and Services:

Our Torispherical Dished Heads are designed to meet the highest standards of quality and durability, ensuring optimal performance in pressure vessel applications. We provide comprehensive technical support to assist you throughout the product lifecycle, from selection and design to installation and maintenance.

Our technical team is available to offer expert guidance on material selection, dimensional specifications, and compliance with relevant industry codes and standards. We also provide detailed product documentation, including design calculations, fabrication drawings, and inspection reports to facilitate seamless integration into your projects.

In addition to technical support, we offer a range of services such as custom fabrication, surface treatment, and quality testing to meet your specific requirements. Our commitment to excellence ensures that each Torispherical Dished Head delivers reliable performance and contributes to the safety and efficiency of your pressure vessels.

For any technical inquiries or service requests related to Torispherical Dished Heads, please refer to our support resources or consult with our engineering team to ensure you receive the best solutions tailored to your needs.

Packing and Shipping:

Product Packaging and Shipping for Torispherical Dished Head

Our Torispherical Dished Heads are carefully packaged to ensure maximum protection during transit. Each head is wrapped with protective materials to prevent surface damage and corrosion. We use custom wooden crates or reinforced steel containers based on the size and quantity of the shipment to provide sturdy and secure packaging.

For shipping, we offer flexible options including sea freight, air freight, and land transportation to accommodate delivery schedules and locations worldwide. All shipments are thoroughly inspected and documented to guarantee that the Torispherical Dished Heads arrive at their destination in perfect condition and on time.

We also provide tracking services and insurance options for added peace of mind throughout the shipping process.

FAQ:

Q1: What is the brand and model number of the Torispherical Dished Head?

A1: The Torispherical Dished Head is branded by GLM and the model number is Cap.

Q2: Where is the Torispherical Dished Head manufactured?

A2: It is manufactured in China.

Q3: What certifications does the Torispherical Dished Head have?

A3: The product is certified with ASMEU, R, U2, PED, ABS, TUV, NB, and ISO standards.

Q4: What is the price range and minimum order quantity for the Torispherical Dished Head?

A4: The price ranges from $25 to $125 per piece, and the minimum order quantity is 1 piece.

Q5: What are the packaging options and delivery time for this product?

A5: Packaging options include wooden cases, wooden pallets, steel pallets, or customized packaging as per customer requirements. The delivery time ranges from 10 to 30 days.

Q6: What payment terms are accepted for purchasing the Torispherical Dished Head?

A6: Payment terms accepted are L/C, Western Union, and T/T.

Q7: What is the supply ability of GLM for the Torispherical Dished Head?

A7: GLM can supply up to 50,000 pieces per month.
