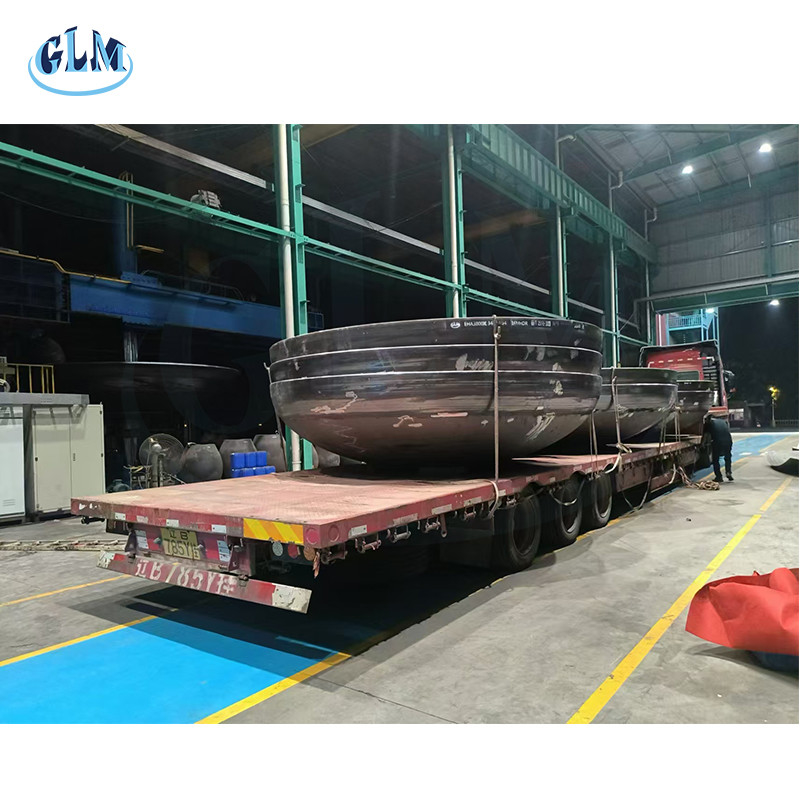

2:1 Ellipsoidal Dish End Caps For Charmat tank
Product Details
| Pressure: | High Pressure | Name: | Ellipsoidal Dish End |
|---|---|---|---|
| Package: | Wooden Case, Pallet, Etc. | Material: | Stainless Steel, Carbon Steel, Etc. |
| Type: | Cap | Thickness: | Customized |
| Connection Type: | Welded, Threaded, Etc. | Inspection: | UT,RT,MT,PT,TOFD |
| Highlight |
2:1 Ellipsoidal Dish End,2:1 Ellipsoidal Dish End Caps |
||
Product Description
Product Description:
The Ellipsoidal Dish End is manufactured with a reduction ratio of about 10%, which means that the diameter of the dish end is 10% less than the diameter of the cylinder it is attached to. This reduction ratio provides a better fit and is essential for maintaining the structural integrity of the pressure vessel or tank.
The Ellipsoidal Dish End is available in different connection types such as welded, threaded, and more. This variety of connection types makes it easy to integrate the Ellipsoidal Dish End into any pressure vessel or tank design. The Ellipsoidal Dish End is also available in different sizes, which makes it easy to find the perfect fit for any project.
Features:
- Product Name: Ellipsoidal Dish End
- Type: Cap
- Package: Wooden Case, Pallet, Etc.
- Thickness: Customized
- Processing Technology: Welding, Rolling, Etc.
- Inspection: UT, RT, MT, PT, TOFD
- ASME Heads
- SE 2:1 Heads
- Carbon steel tank ends
Technical Parameters:
| Product Name | Dish End Heads |
| Type | Cap |
| Shape | Ellipsoidal |
| Size | Customized |
| Thickness | Customized |
| Reduction Ratio | About 10% |
| Pressure | High Pressure |
| Surface Treatment | Polishing, Sandblasting, Etc. |
| Inspection | UT, RT, MT, PT, TOFD |
| Warranty | 1 Year |
| Package | Wooden Case, Pallet, Etc. |
Products
Applications:
This product is designed for use in a variety of industries, including:
- Oil & Gas
- Chemical & Petrochemical
- Offshore
- Cryogenic
- Pharmaceutical
- Food & Beverage
- Water Treatment
- Desalination Plants
- Storage & Transport
- Pulp & Paper
- Mining
- Power Generation
- LNG
- Nuclear & Aerospace
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is GLM.
Q: What is the model number of this product?
A: The model number of this product is Cap.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What certifications does this product have?
A: This product has ASMEU, R, U2, PED, ABS, TUV, NB, and ISO certifications.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: What is the price range for this product?
A: The price range for this product is $25-125.
Q: What are the packaging details for this product?
A: The packaging details for this product include wooden cases, wooden pallets, steel pallets, or as per customers' requirements.
Q: What is the delivery time for this product?
A: The delivery time for this product is 10-30 days.
Q: What are the payment terms for this product?
A: The payment terms for this product include L/C, Western Union, and T/T.
Q: What is the supply ability of this product?
A: The supply ability of this product is 50000 pieces per month.
