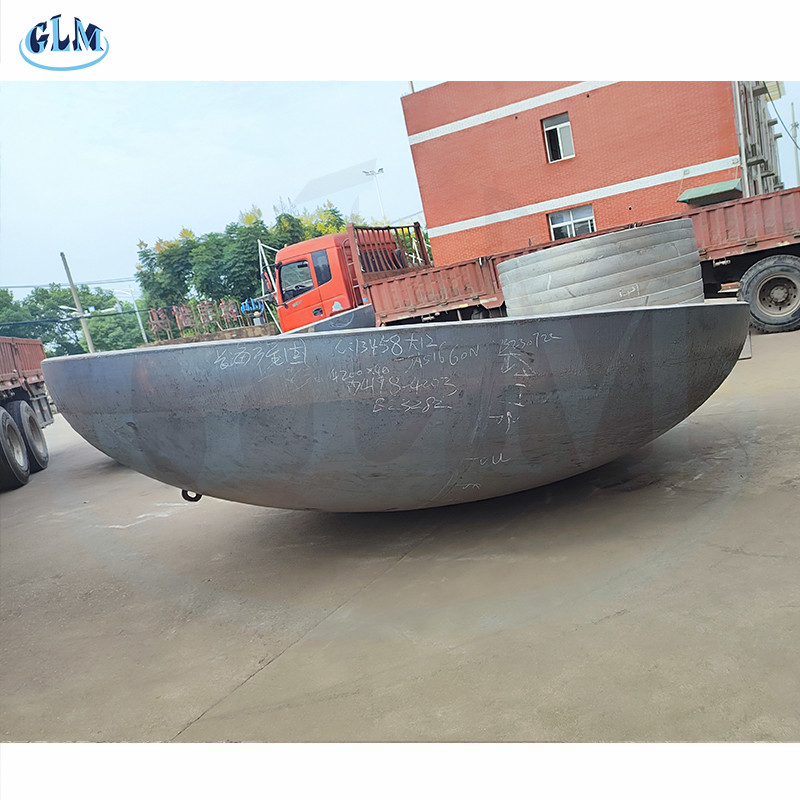

Carbon Steel Elliptical Tank Heads, Heads And Bottoms For Pressure Vessel

Carbon Steel Elliptical Tank Heads, Heads And Bottoms For Pressure Vessel
Carbon Steel Elliptical Tank Heads, Heads And Bottoms For Pressure Vessel

Large Image :  Carbon Steel Elliptical Tank Heads, Heads And Bottoms For Pressure Vessel

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASMEU,R,U2,PED,ABS,TUV,NB,ISO,
Model Number: Cap
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-125
Packaging Details: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Delivery Time: 10-30
Payment Terms: L/C,Western Union,T/T
Supply Ability: 50000 pieces per Month

Carbon Steel Elliptical Tank Heads, Heads And Bottoms For Pressure Vessel

Description
Application: Boilers,and Heat Exchangers Etc. Standard: ASME, DIN, JIS, Etc.
Surface Treatment: Polishing, Sandblasting, Pickling, Etc. Connection: Welding
Technics: Hot Pressing,cold Pressing Applicable Standard: ASME ,PED And GB
Inspection: UT,RT,MT,PT,TOFD Shape: Elliptical, Hemispherical, Torispherical, Etc.
High Light:

pressure vessel Elliptical tank Heads

,

Carbon Steel Elliptical tank Heads

,

Pressure Vessel Heads And Bottoms

Product Description:

Dished Tank Heads

Dished tank heads are widely used in boilers, heat exchangers and other pressure vessels. These tank heads are manufactured with a variety of materials and thicknesses to meet specific requirements. The main materials used include carbon steel, stainless steel, copper, etc. Our dished tank heads come in two types: elliptical tank heads and crown & petal dished ends. Elliptical tank heads are used for pressure vessels, and crown & petal dished ends are used for pressure vessels, boilers, and other equipment. Both types have a thickness range of 3mm to 200mm and can be connected with welding. The quality of the product is ensured by UT, RT, MT, PT, and TOFD inspections.



Features:

  • Product Name: Dished Tank Heads
  • Inspection: UT, RT, MT, PT, TOFD
  • Applicable Standard: ASME, PED And GB
  • Standard: ASME, DIN, JIS, Etc.
  • Process: Stamping, Spinning, Pressing, Etc.
  • Material: Carbon Steel, Stainless Steel, Copper, Etc.
  • Crown and petal heads
  • Conical Tank Heads
  • Segmented Tank Heads
  • Elliptical Tank Heads


Technical Parameters:

Product Attribute Specification
Segmented Tank Heads Crown and petal heads, Shallow Tank Heads, Flanged and dished heads, Flanged Only Tank Heads
Applicable Standard ASME ,PED And GB
Surface Treatment Polishing, Sandblasting, Pickling, Etc.
Application Boilers,and Heat Exchangers Etc.
Diameter 200mm-10000mm
Connection Welding
Shape Elliptical, Hemispherical, Torispherical, Etc.
Standard ASME, DIN, JIS, Etc.
Thickness 3mm-200mm
Head Code Elliptical Head
Material Carbon Steel, Stainless Steel, Copper, Etc.


Applications:

il & Gas, Chemical & Petrochemical Industries, Offshore, Cryogenic Industry, Pharmaceutical Industry, Food & Beverage, Water Treatment, Desalination Plants, Storage & Transport, Pulp & Paper, Mining, Power Generation, LNG Industry, Nuclear & Aerospace Industries.

Carbon Steel Elliptical Tank Heads, Heads And Bottoms For Pressure Vessel 0Carbon Steel Elliptical Tank Heads, Heads And Bottoms For Pressure Vessel 1Carbon Steel Elliptical Tank Heads, Heads And Bottoms For Pressure Vessel 2Carbon Steel Elliptical Tank Heads, Heads And Bottoms For Pressure Vessel 3

Packing and Shipping:

Dished tank heads are packaged and shipped using a variety of methods. Depending on the size and weight of the tank head, it may be sent using pallet shipping, shrink-wrapped shipping, or by container. For smaller tank heads, they can be shipped in cardboard boxes with protective padding and bubble wrap. For larger tank heads, they are typically packaged and shipped on a pallet, with the use of shrink-wrap and/or strapping to keep them secure during transit.



FAQ:

1. What's the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product


2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.


3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.


4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .

.
