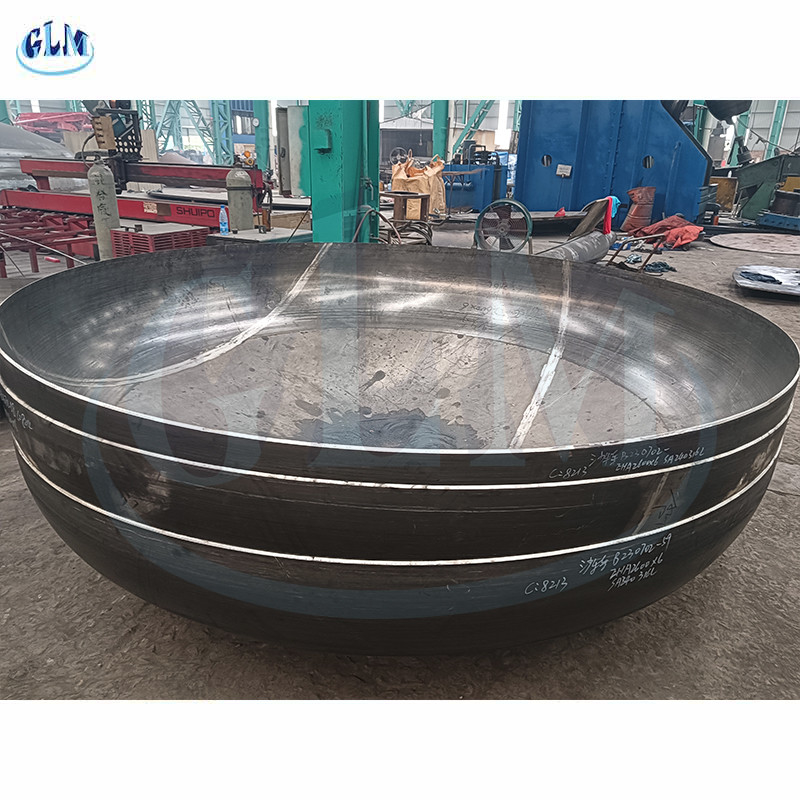

2600mm Diameter 6mm Thickness Ellipsoidal Dished End 2:1 Dished Bottom

2600mm Diameter 6mm Thickness Ellipsoidal Dished End 2:1 Dished Bottom
2600mm Diameter 6mm Thickness Ellipsoidal Dished End 2:1 Dished Bottom

Large Image :  2600mm Diameter 6mm Thickness Ellipsoidal Dished End 2:1 Dished Bottom

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ISO9001,PED,SAMEU,R ,U2,ABS
Model Number: Cap
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-125
Packaging Details: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Delivery Time: 7 Days
Payment Terms: L/C,Western Union,T/T
Supply Ability: 50000 pieces per Month

2600mm Diameter 6mm Thickness Ellipsoidal Dished End 2:1 Dished Bottom

Description
Shape: Elliptical Application: Oil, Chemical Industry, Water Conservancy, Electric Power, Boiler, Machinery, Metallurgy, Sanitary Construction Etc.
Diameter: 89-10000mm Material: Carbon Steel,Stainless Steel
Package: Wooden Case Thickness: 2-300mm
High Light:

6mm Thickness Ellipsoidal Dished End

,

2600mm Diameter Ellipsoidal Dished End

,

2:1 Elliptical Dished Bottom

2600mm Diameter 6mm Thickness Ellipsoidal Dished End 2:1, Dished Bottom

Product Description:

Elliptical Dish Head is a kind of special equipment that is widely used in various industries. Its shape is elliptical, and it has a 10% reduction ratio. It is packed in wooden cases for convenient transportation and storage, and the payment term is T/T. Moreover, it is inspected by UT, RT, MT, PT and TOFD.

This Elliptical Dish Head has a strong structure and reliable performance. It is suitable for various applications and has a long service life. It is made of high quality material and has excellent corrosion resistance. It is a cost-effective product and can meet the needs of customers.

We are committed to providing the best quality products and services to meet the requirements of customers. Our Elliptical Dish Cap Head has undergone strict testing and inspection process to ensure the quality, and we guarantee that it can work properly in all kinds of harsh environment. We also provide professional technical support and after-sales service.



Features:

  • Product Name: Elliptical Dish Head
  • Certification: ISO9001, PED, SAMEU, R, U2, ABS
  • Material: Carbon Steel, Stainless Steel
  • Inspection: UT, RT, MT, PT, TOFD
  • Port: Shanghai
  • Surface Treatment: Polishing
  • Elliptical-Dish-End
  • Elliptical-Dish-Cap
  • Elliptical-Dish-Head


Technical Parameters:

Parameter Value
Material Carbon Steel, Stainless Steel
Surface Treatment Polishing
Shape Elliptical
Certification ISO9001, PED, SAMEU, R, U2, ABS
Thickness 2 - 300mm
Payment Terms T/T
Processing Technology Welding
Diameter 89 - 10000mm
Delivery Time 7 Days
Inspection UT, RT, MT, PT, TOFD


Applications:

Oil & Gas, Chemical & Petrochemical Industries, Offshore, Cryogenic Industry,Pharmaceutical Industry, Food & Beverage, Water Treatment, Desalination Plants,Storage & Transport, Pulp & Paper, Mining, Power Generation, LNG Industry, Nuclear & Aerospace Industries.

2600mm Diameter 6mm Thickness Ellipsoidal Dished End 2:1 Dished Bottom 02600mm Diameter 6mm Thickness Ellipsoidal Dished End 2:1 Dished Bottom 12600mm Diameter 6mm Thickness Ellipsoidal Dished End 2:1 Dished Bottom 22600mm Diameter 6mm Thickness Ellipsoidal Dished End 2:1 Dished Bottom 3

Packing and Shipping:

Packaging and Shipping for Elliptical Dish Head

Elliptical dish heads are carefully packaged and shipped in order to reduce the risk of damage during transit. The packaging includes the following steps:

  • All dish heads are carefully wrapped in bubble wrap.
  • The bubble wrap is secured with heavy-duty tape.
  • The dish heads are placed in a cardboard box and secured with additional tape.
  • The box is labeled with the product name, destination, and other necessary information.
  • The box is placed in a larger box filled with additional padding and cushioning.
  • The larger box is labeled with the product name, destination, and other necessary information.
  • The box is sealed and ready for shipment.


FAQ:

.

1. What’s the information should I provide when inquiry?
Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?



Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?



Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?



Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
