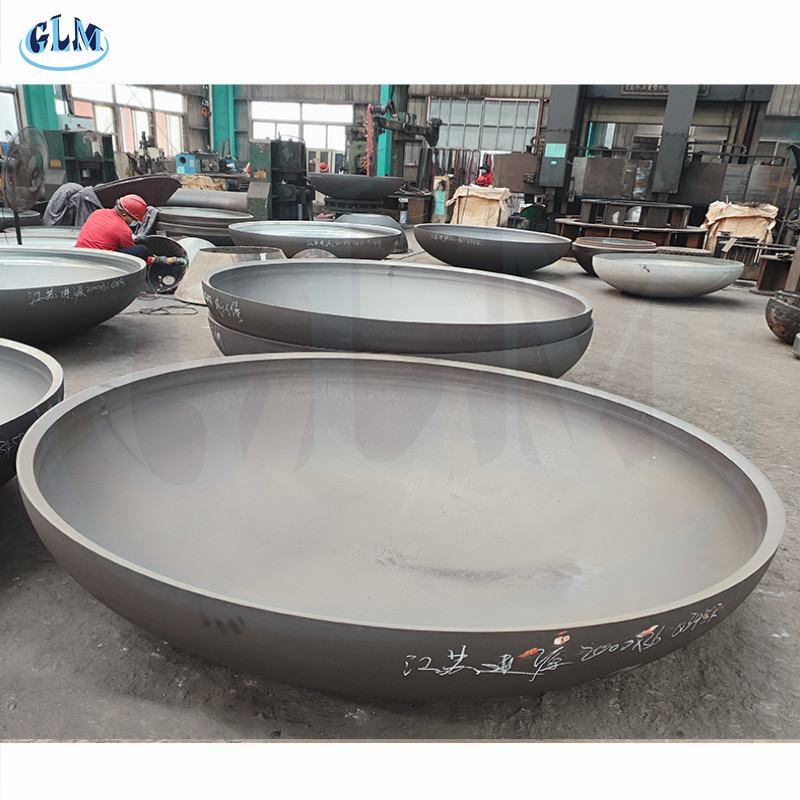

ASME Elliptical Tank Heads , Elliptical Bottoms With Customizable Thickness

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

ASME Elliptical Tank Heads , Elliptical Bottoms With Customizable Thickness

ASME Elliptical Tank Heads , Elliptical Bottoms With Customizable Thickness
ASME Elliptical Tank Heads , Elliptical Bottoms With Customizable Thickness

Large Image :  ASME Elliptical Tank Heads , Elliptical Bottoms With Customizable Thickness

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASMEU,R,U2,PED,ABS,TUV,NB,ISO,
Model Number: Cap
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-125
Packaging Details: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Delivery Time: 10-30
Payment Terms: L/C,Western Union,T/T
Supply Ability: 50000 pieces per Month

ASME Elliptical Tank Heads , Elliptical Bottoms With Customizable Thickness

Description
Thickness: 3-300mm Material: Carbon Steel, Stainless Steel,Aluminum, Nickel Etc
Radius: Customers Requirement Inspection: UT,RT,MT,PT,TOFD
Shape: Dished Heads Forming Method: Hot Forming,cold Forming
Connection: Welding Applicable Standard: ASME ,PED And GB
High Light:

300mm Elliptical Tank Heads

,

Customizable Elliptical Bottoms

,

ASME Elliptical Tank Heads

Elliptical Tank Heads, Elliptical Bottoms With Customizable Thickness

Product Description:

Carbon Steel Dished Heads are mainly used for storage tanks, reactors and shell & tube heat exchangers. These heads are manufactured by spinning process or pressing method with customers’ requirement on radius. It can be divided into Ellipsoidal Dish Head, Crown Petal Dished Heads, Conical Dish Heads and Hemispherical Dish Heads. The inspection of Carbon Steel Dished Heads includes UT, RT, MT, PT and TOFD. It is mainly connected by welding.



Features:

  • Product Name: Carbon Steel Dished Heads
  • Processing Method: Spinning Process Or Pressing
  • Packaging: Wooden Cases, Wooden Pallet, Steel Pallet Or As Per Customer's Requirement
  • Inspection: UT, RT, MT, PT, TOFD
  • Shape: Dished Heads, Segmented Tank Heads, Torispherical Dished End, Ellipsoidal Dish Head, Hemispherical Dish Head
  • Surface Treatment: Sand Blasting, Pickling, Oil, Discaling


Technical Parameters:

Parameter Description
Packaging Wooden Cases, wooden Pallet, Steel Pallet or as per customers requirement
Radius Customers requirement
Surface Treatment Sand Blasting, Pickling, Oil, Discaling
Thickness 3-300mm
Diameter 89-1000mm
Shape Dished Heads, ASME code heads, petal dished end, Segmented Tank Heads
Applicable Standard ASME, PED and GB
Connection Welding
Processing Method Spinning process or pressing
Inspection UT, RT, MT, PT, TOFD


Applications:

Oil & Gas, Chemical & Petrochemical Industries and Offshore are industries where high-performance materials such as stainless steel are increasingly being used. These materials have the ability to withstand extreme temperatures, corrosion, wear and tear and are ideal for important applications in these industries.

Cryogenic Industry requires materials that are capable of withstanding very high temperatures, and stainless steel is the ideal choice for such applications. It is resistant to corrosion and is highly durable, making it ideal for important applications in this industry.

The Pharmaceutical Industry also requires materials that can withstand extreme temperatures, corrosion and wear and tear. Stainless steel is these industries' ideal choice due to its robustness. It's also used in the Food & Beverage, Water Treatment, Desalination Plants, Storage & Transport, Pulp & Paper, Mining, Power Generation, LNG, Industry, Nuclear & Aerospace Industries, making it an almost universal material for many important applications.

ASME Elliptical Tank Heads , Elliptical Bottoms With Customizable Thickness 0ASME Elliptical Tank Heads , Elliptical Bottoms With Customizable Thickness 1ASME Elliptical Tank Heads , Elliptical Bottoms With Customizable Thickness 2ASME Elliptical Tank Heads , Elliptical Bottoms With Customizable Thickness 3

Packing and Shipping:

Carbon Steel Dished Heads Packaging and Shipping:

Carbon steel dished heads are typically shipped in large wooden crates or boxes that are secured with plastic straps. The crates are designed to protect the heads from any potential damage during the shipping process. The packaging material used is recyclable and eco-friendly. The shipping process is done using the most reliable and efficient carriers to ensure on-time and safe delivery.



FAQ:

  • Q: What is the brand name of Carbon Steel Dished Heads?
    A: The brand name is GLM.
  • Q: What is the model number of Carbon Steel Dished Heads?
    A: The model number is Cap.
  • Q: Where is Carbon Steel Dished Heads manufactured?
    A: Carbon Steel Dished Heads are manufactured in China.
  • Q: What certifications do Carbon Steel Dished Heads have?
    A: Carbon Steel Dished Heads have ASMEU, R,U2,PED, ABS, TUV, NB, ISO certifications.
  • Q: How much does Carbon Steel Dished Heads cost?
    A: Carbon Steel Dished Heads cost between $25-125.
