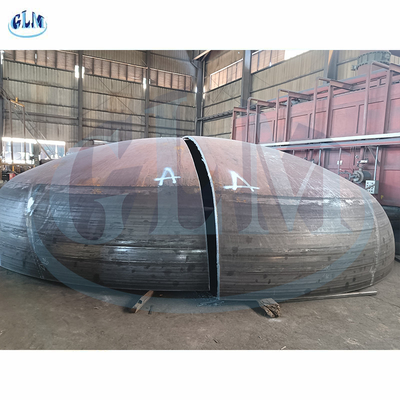

Ellipsoidal Dish Bottom 2:1 Large Diameter Elliptical Head For Boiler And Pressure Vessel

Ellipsoidal Dish Bottom 2:1 Large Diameter Elliptical Head For Boiler And Pressure Vessel
Ellipsoidal Dish Bottom 2:1 Large Diameter Elliptical Head For Boiler And Pressure Vessel

Large Image :  Ellipsoidal Dish Bottom 2:1 Large Diameter Elliptical Head For Boiler And Pressure Vessel

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASMEU,R,U2,PED,ABS,TUV,NB,ISO,
Model Number: Cap
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-125
Packaging Details: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Delivery Time: 10-30
Payment Terms: L/C,Western Union,T/T
Supply Ability: 50000 pieces per Month

Ellipsoidal Dish Bottom 2:1 Large Diameter Elliptical Head For Boiler And Pressure Vessel

Description
Design Pressure: Based On Customer's Needs Application: Boiler, Heat Exchanger, Power, Etc.
Head Type: Elliptical, Hemispherical, Torispherical, Etc. Product Name: Pressure Vessel Dished Head
Vessel Head Thickness: 3mm-300mm Inspection: NDT, Hydrostatic Test, Etc.
Technics: Forged Design Temperature: Based On Customer's Needs
High Light:

Pressure Vessel Ellipsoidal Dish Bottom

,

Ellipsoidal Dish Bottom 2:1

,

Boiler Large Diameter Elliptical Head

Ellipsoidal Dish Bottom 2:1 ,Large Diameter Elliptical Head For Boiler And Pressure Vessel

Product Description:

Pressure Vessel Dished Head is a kind of vessel head which is used for tanks and boilers. It is extensively applied in pressure vessel manufacturing, and it is manufactured with advanced technology. The surface treatment of the vessel head includes shot blasting, sand blasting, painting, etc. The standard is ASME, EN, JIS, etc. The design pressure is based on customer's needs and the technics is forged. The vessel head diameter ranges from 200 mm to 10000 mm. The pressure vessel dished head could be classified into Elliptical tank heads, Segmented dish Head, Hemispherical Head, and Conical Head.


Features:

  • Product Name: Pressure Vessel Dished Head
  • Inspection: Non-Destructive Testing (NDT), Hydrostatic Test, etc.
  • Standard: ASME, EN, JIS, etc.
  • Package: Wooden Case, Pallet, etc.
  • Forming method: Hot Forming, Cold Forming
  • Shape: Eccentric Cone, Semi-Elliptical Cap, Vessel Head, Tank Head


Technical Parameters:

Product Name Technical Parameter
Pressure Vessel Dished Head Design Temperature: Based On Customer's Needs
Design Pressure: Based On Customer's Needs
Vessel Head Thickness: 3mm-300mm
Forming method: Hot Forming,cold Forming
Inspection: NDT, Hydrostatic Test, Etc.
Package: Wooden Case, Pallet, Etc.
Surface Treatment: Shot Blasting, Sand Blasting, Painting, Etc.
Standard: ASME, EN, JIS, Etc.
Technics: Forged
Special Features: Dished Bottom, Dish Head, Eccentric Cone, Hemispherical Head, Torispherical Head, Ellipsoidal Head


Applications:

Oil & Gas, Chemical & Petrochemical Industries, Offshore, Cryogenic Industry, Pharmaceutical Industry, Food & Beverage, Water Treatment, Desalination Plants, Storage & Transport, Pulp & Paper, Mining, Power Generation, LNG Industry, Nuclear & Aerospace Industries.



Customization:

Pressure Vessel Dished Head

Brand Name: GLM
Model Number: Cap
Place of Origin: China
Certification: ASMEU, R,U2,PED, ABS, TUV, NB, ISO,
Minimum Order Quantity: 1
Price: $25-125
Packaging Details: Wooden cases, wooden pallet, Steel pallet or as per customer's requirement
Delivery Time: 10-30
Payment Terms: L/C, Western Union’T/T
Supply Ability: 50000 pieces per Month
Vessel Head Thickness: 3 mm-300 mm
Grade: Carbon Steel, Aluminum, Titanium
Application: Boiler, Heat Exchanger, Power, Etc.
Certificate: ISO9001, PED, Etc.
Inspection: NDT, Hydrostatic Test, Etc.

GLM Cap Pressure Vessel Dished Head is a perfect choice for elliptical tank heads, torispherical dish head, hemispherical dished end and other applications. The product has a wide range of thickness from 3 mm-300 mm and grades of Carbon Steel, Aluminum, Titanium. The product is certified with ISO9001, PED, etc. and inspections such as NDT, Hydrostatic Test are available. The minimum order quantity is 1 and the delivery time is 10–30 days. The price ranges from $25 to $125.



Support and Services:

We provide technical support and services for Pressure Vessel Dished Head. Our team of professional engineers is available to provide consultation on your project and answer any questions you may have. We also offer installation and maintenance services to ensure optimal performance of your equipment.

We provide 24/7 emergency support to minimize any downtime. If you experience any issues, we will work quickly and diligently to rectify them. Our team is committed to providing the best customer service and satisfaction.

We are committed to helping you get the most out of your Pressure Vessel Dished Head. Our knowledgeable staff is available to help you choose the right equipment for your application and provide technical support and service throughout its life cycle.

Ellipsoidal Dish Bottom 2:1 Large Diameter Elliptical Head For Boiler And Pressure Vessel 0Ellipsoidal Dish Bottom 2:1 Large Diameter Elliptical Head For Boiler And Pressure Vessel 1Ellipsoidal Dish Bottom 2:1 Large Diameter Elliptical Head For Boiler And Pressure Vessel 2Ellipsoidal Dish Bottom 2:1 Large Diameter Elliptical Head For Boiler And Pressure Vessel 3
