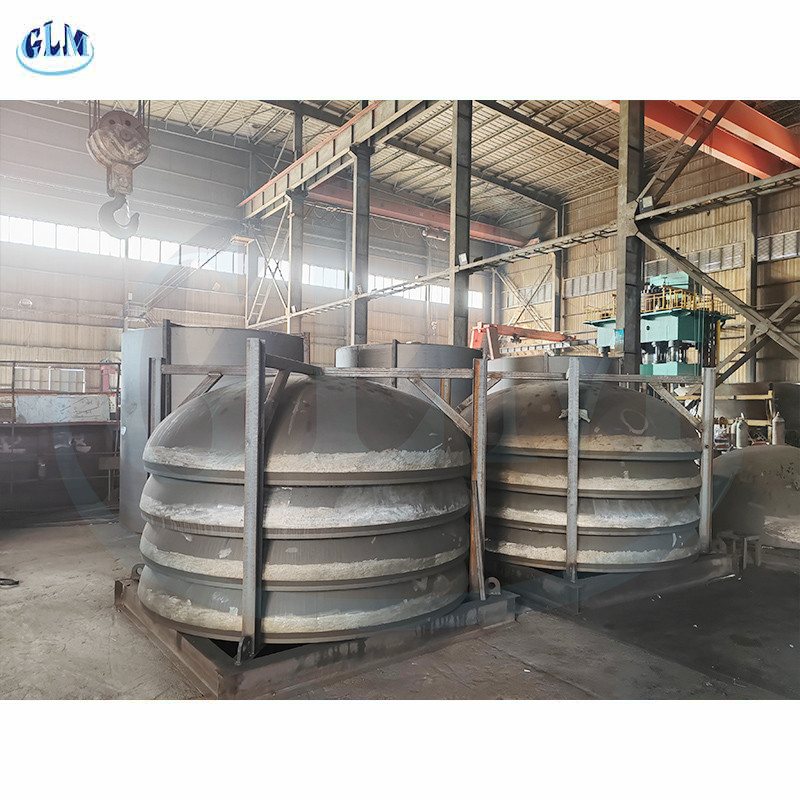

Hot Forming Pressure Vessel Dished Head Elliptical Head With 15mm Thickness
Product Details
| Vessel Head Diameter: | 200mm-10000mm | Inspection: | NDT, Hydrostatic Test, Etc. |
|---|---|---|---|
| Design Pressure: | Based On Customer's Needs | Surface Treatment: | Shot Blasting, Sand Blasting, Painting, Etc. |
| Product Name: | Pressure Vessel Dished Head | Package: | Wooden Case, Pallet, Etc. |
| Grade: | Carbon Steel, SA-516, Grade 70, Etc. | Forming Method: | Hot Forming,cold Forming |
| Highlight |
15mm Pressure Vessel Dished Head,Pressure Vessel Elliptical Head,SA 516 Vessel Dished Head |
||
Product Description
Product Description:
Pressure Vessel Dished Head is a type of head that is designed and manufactured to ASME and EN standards. It is a hemispherical shape with a flanged and dished end, a semi-elliptical cap, a conical head, or an elliptical head. It is mainly used for the fabrication of pressure vessels, tanks, and heat exchangers. It is certified to ISO9001 and PED standards and is suitable for applications in the Petroleum, Chemical, and Power industries. Pressure Vessel Dished Head is manufactured using advanced production equipment and technology to ensure top quality and reliability. It is inspected with Non-Destructive Testing (NDT) and Hydrostatic Test to ensure safety and stability. It is also treated with Shot Blasting, Sand Blasting, and Painting for a long-lasting and durable surface. The product is safely packaged in wooden cases or pallets for delivery.
Features:
- Product Name: Pressure Vessel Dished Head
- Vessel Head Diameter: 200mm-10000mm
- Grade: Carbon Steel, SA-516, Grade 70, Etc.
- Inspection: NDT, Hydrostatic Test, Etc.
- Standard: ASME, EN, JIS, Etc.
- Forming method: Hot Forming,cold Forming
- Semi-elliptical cap, dished bottom, Dished Bottom
Technical Parameters:
| Product Attributes | Description |
|---|---|
| Standard | ASME, EN, JIS, etc. |
| Forming Method | Hot Forming, Cold Forming |
| Grade | Carbon Steel, SA-516, Grade 70, etc. |
| Certificate | ISO9001, PED, etc. |
| Product Name | Pressure Vessel Dished Head |
| Manufacturing Process | Hot Forming, Cold Forming, etc. |
| Inspection | NDT, Hydrostatic Test, etc. |
| Application | Petroleum, Chemical, Power, etc. |
| Design Pressure | Based on Customer's Needs |
| Vessel Head Thickness | 3mm-300mm |
| Dished Bottom | Segmented dish Head, Ellipsoidal Head, Hemispherical head |
Applications:
Dished heads are used in a variety of applications, including pressure vessels, process columns, domed roofs for large storage tanks, vacuum chambers, wear plates and liners. These tank heads are made from steel and are formed by cold press forming or hot spinning
Customization:
Brand Name: GLM
Model Number: Cap
Place of Origin: China
Certification: ASMEU,R,U2,PED,ABS,TUV,NB,ISO,
Minimum Order Quantity: 1
Price: $25-125
Packaging Details: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Delivery Time: 10-30
Payment Terms: L/C,Western Union,T/T
Supply Ability: 50000 pieces per Month
Certificate: ISO9001, PED, Etc.
Manufacturing Process: Hot Forming, Cold Forming, Etc.
Inspection: NDT, Hydrostatic Test, Etc.
Head Type: Elliptical, Hemispherical, Torispherical, Etc.
GLM Pressure Vessel Dished Head is available in Hemispherical, Torispherical, Semi-Elliptical and Elliptical shapes to meet different requirements. The Pressure Vessel Dished Head can be manufactured in hot forming or cold forming process. Our Pressure Vessel Dished Head is certified to ISO9001, PED, etc. and is subject to NDT and Hydrostatic Test.
Support and Services:
Our technical support and services for Pressure Vessel Dished Head include:
- On-site installation and commissioning
- Remote technical support
- Repair and maintenance services
- User training and education
- Spare parts supply and service
