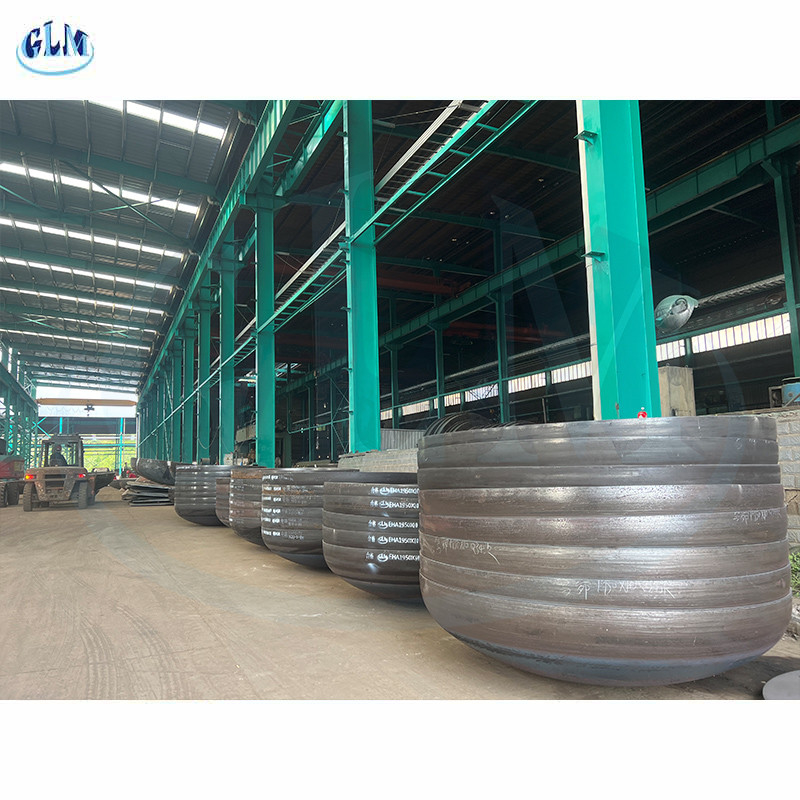

1950mm Diameter Pressure Vessel Dished Head With Hydrostatic Test Inspection

1950mm Diameter Pressure Vessel Dished Head With Hydrostatic Test Inspection
1950mm Diameter Pressure Vessel Dished Head With Hydrostatic Test Inspection

Large Image :  1950mm Diameter Pressure Vessel Dished Head With Hydrostatic Test Inspection

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASMEU,R,U2,PED,ABS,TUV,NB,ISO,
Model Number: Cap
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $25-125
Packaging Details: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Delivery Time: 10-30
Payment Terms: L/C,Western Union,T/T
Supply Ability: 50000 pieces per Month

1950mm Diameter Pressure Vessel Dished Head With Hydrostatic Test Inspection

Description
Forming Method: Hot Forming,cold Forming Head Type: Elliptical, Hemispherical, Torispherical, Etc.
Grade: Carbon Steel, SA-516, Grade 70, Etc. Inspection: NDT, Hydrostatic Test, Etc.
Product Name: Pressure Vessel Dished Head Vessel Head Diameter: 1950mm
Package: Wooden Case, Pallet, Etc. Certificate: ISO9001, PED, Etc.
High Light:

1950mm Dished Head

,

Hydrostatic Test Vessel Dished Head

,

Grade 70 Elliptical Dish End

1950mm Diameter Pressure Vessel Dished Head With Hydrostatic Test Inspection

Product Description:

Pressure Vessel Dished Head is a kind of pressure vessel component, manufactured to the highest quality standards. It is available in segmented dish head, torispherical dish head, dished bottom head, conical head, customized shape and sizes. It has a wide application in petroleum, chemical, power and other industries.

Pressure Vessel Dished Head is made from steel plate with high strength and robustness. The surface treatment includes shot blasting, sand blasting and painting, the standard options are ASME, EN, JIS, etc. The inspection includes NDT, hydrostatic test, etc.

It is designed to meet the requirements of the customers and their specific applications. It is produced in accordance with the international standards to ensure the highest quality and safety. It is designed and tested to withstand the toughest conditions.



Features:

  • Product Name: Pressure Vessel Dished Head
  • Design Pressure: Based On Customer's Needs
  • Manufacturing Process: Hot Forming, Cold Forming, Etc.
  • Inspection: NDT, Hydrostatic Test, Etc.
  • Forming method: Hot Forming,cold Forming
  • Application: Petroleum, Chemical, Power, Etc.
  • Dished Bottom: For Pressure Vessels,Storage tanks
  • Torispherical Dish Head: For Pressure Vessels,Storage tank
  • Semi-Elliptical Cap: For Pressure Vessels
  • Ellipsoidal Head: For Pressure Vessels
  • Conical Dish Head: For Pressure Vessels


Technical Parameters:

Property Value
Package Wooden Case, Pallet, Etc.
Vessel Head Diameter 200mm-10000mm
Design Temperature Based On Customer's Needs
Application Petroleum, Chemical, Power, Etc.
Inspection NDT, Hydrostatic Test, Etc.
Head Type Elliptical, Hemispherical, Torispherical, Etc.
Grade Carbon Steel, SA-516, Grade 70, Etc.
Vessel Head Thickness 3mm-300mm
Manufacturing Process Hot Forming, Cold Forming, Etc.
Standard ASME, EN, JIS, Etc.


Applications:

Dished heads are used in a variety of applications, including pressure vessels, process columns, domed roofs for large storage tanks, vacuum chambers, wear plates and liners. These tank heads are made from steel and are formed by cold press forming or hot spinning



Customization:

Customized Pressure Vessel Dished Head by GLM

Brand Name: GLM

Model Number: Cap

Place of Origin: China

Certification: ASMEU,R,U2,PED,ABS,TUV,NB,ISO

Minimum Order Quantity: 1

Price: $25-125

Packaging Details: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement

Delivery Time: 10-30

Payment Terms: L/C,Western Union,T/T

Supply Ability: 50000 pieces per Month

Design Temperature: Based On Customer's Needs

Head Type: Elliptical, Hemispherical, Torispherical, Segmented dish Head, semi-elliptical cap, hemispherical dished end, conical head, flat head, flanged head, Etc.

Inspection: NDT, Hydrostatic Test, Etc.

Vessel Head Diameter: 200mm-10000mm

Package: Wooden Case, Pallet, Etc.



Support and Services:

For our Pressure Vessel Dished Head, we offer technical support and services to ensure your products are working as expected. Our technical team is available to answer any questions you may have and provide valuable guidance to ensure you get the most out of your purchase. We also provide maintenance and repair services so you can rest assured that your Pressure Vessel Dished Head is always in top condition.

1950mm Diameter Pressure Vessel Dished Head With Hydrostatic Test Inspection 01950mm Diameter Pressure Vessel Dished Head With Hydrostatic Test Inspection 11950mm Diameter Pressure Vessel Dished Head With Hydrostatic Test Inspection 21950mm Diameter Pressure Vessel Dished Head With Hydrostatic Test Inspection 3
