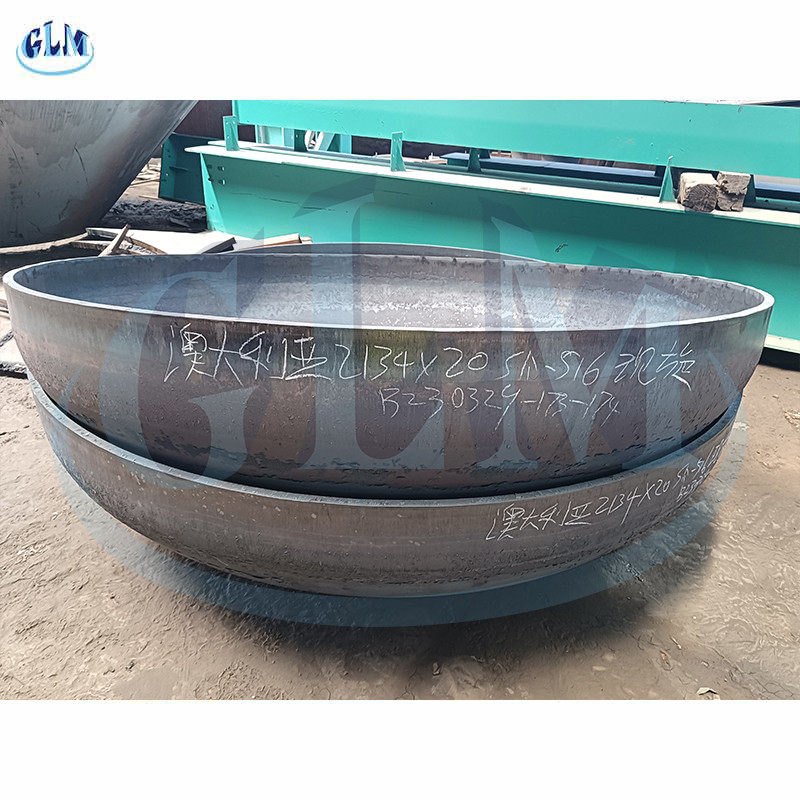

Carbon Steel Ellipsoidal Dished End 2134mm Dimater 30mm Thickness
Product Details
| General: | Ellipsoidal Dished End | ID: | 2134mm |
|---|---|---|---|
| MOC: | SA516 Gr70 | Application: | Heat Exchangers,Pressure Vessels & Columns |
| Delivery Time: | 20 Days After Receiving The Down Payment | Applicable Standard: | ISO, ASME And GB |
| Test: | UT,RT | Think: | 30mm |
| Technology: | Cold Pressing | Reduction Ratio: | About 10% |
| Highlight |
30mm Ellipsoidal Dished End,2134mm Ellipsoidal Dished End,Gr70 Ellipsoidal Dish End |
||
Product Description
2134mm Dimater 30mm Thickness Carbon Steel Elipsoidal Dished End
Description of Ellipsoidal Dished Ends
Diamter: 2134mm
Thickness: 30mm
Material: SA516 GR70
Product: Elipsoidal dished end
With the application of heads in more and more fields, their processing methods have been continuously improved. The processing methods for heads are generally divided into integral forming and segmented forming. The main processing methods for integral forming include stamping and spinning, as well as rarely used explosive forming and gas (liquid) expansion forming. Split forming generally refers to split pressing and welding forming.
The overall forming of head can be divided into cold processing and hot working according to the processing temperature. According to the combination of processing method and temperature, it can be divided into hot spinning forming, hot stamping forming, cold spinning forming, cold stamping forming, and drum forming.
Generally speaking, standard series heads are generally formed by stamping, while non-standard series heads or heads with large diameters tend to be formed by spinning. Compared to stamping, spinning has the advantages of saving mold costs and allowing dimensions to be adjusted according to requirements.
Specifications of Ellipsoidal End:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
