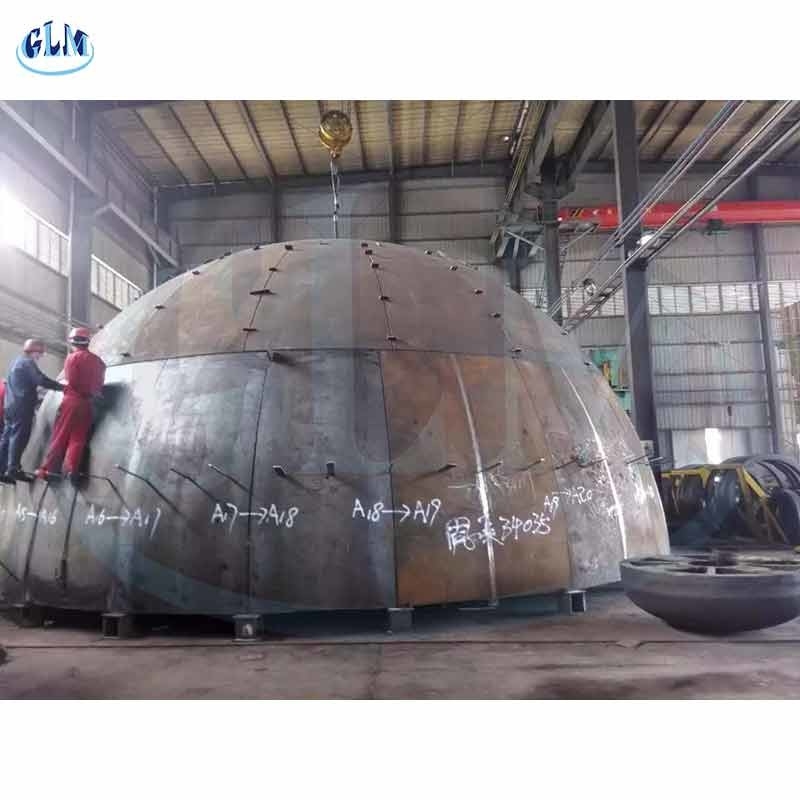

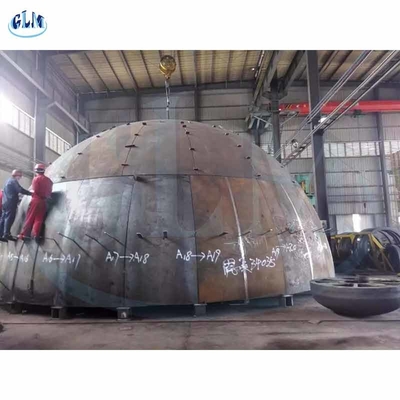

Larger Specification Segmented Hemispherical Tank Head 32mm Thickness

Larger Specification Segmented Hemispherical Tank Head 32mm Thickness
Larger Specification Segmented Hemispherical Tank Head 32mm Thickness

Large Image :  Larger Specification Segmented Hemispherical Tank Head 32mm Thickness

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Larger Specification Segmented Hemispherical Tank Head 32mm Thickness

Description
Name: Segmented Dish Head Specifications: HHA,EHA,THA Or Customized
Surface: Bare,sandblasting Materail: A516GR70
Application: Offshore , Cryogenic Industry Technology: Stamping
Perimeter: 34035mm Thickness: 32mm
Keywords: Segmented Head,tank Head Connection: Welding
High Light:

Segmented Hemispherical Tank Head

,

32mm Hemispherical Tank Head

,

Segmented Tank Dished End

Larger Specification Segmented Dish Head,Tank head



Description of Segmented dish head

A segmented dish head is a component used in pressure vessels and tanks that is designed to withstand high pressure and temperature. It consists of several curved plates that are welded together to form a hemispherical shape. This construction allows for greater flexibility and ease of installation, as it can be divided into smaller sections to fit through tight spaces or to accommodate for other equipment within the vessel. Segmented heads are commonly used in industries such as oil and gas, chemical processing, and power generation to ensure the safety and efficiency of their equipment.



Specifications of segmented head:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products of tank heads

Larger Specification Segmented Hemispherical Tank Head 32mm Thickness 0Larger Specification Segmented Hemispherical Tank Head 32mm Thickness 1

Larger Specification Segmented Hemispherical Tank Head 32mm Thickness 2Larger Specification Segmented Hemispherical Tank Head 32mm Thickness 3



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
