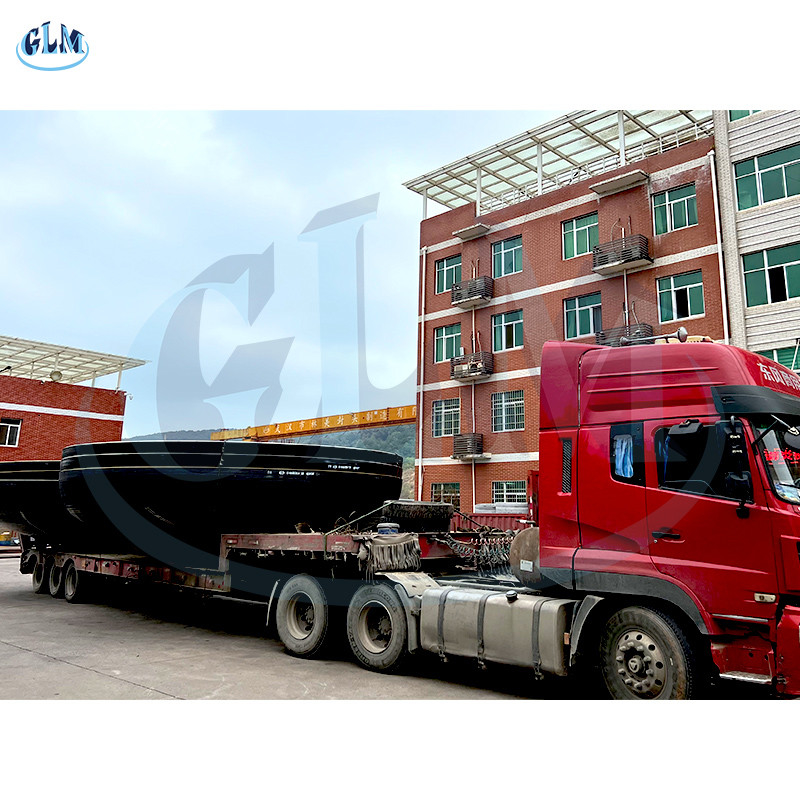

2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness

2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness
2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness
2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness 2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness

Large Image :  2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness

Description
Material: SA516GR60 Head Code: Elliptical
Surface Treatment: Weld Edge Preparation Process: Hot Forging
Application: Offshore , Cryogenic Industry Keywords: Elliptical Tank Heads
ID: 6036mm Thickness: 18mm
High Light:

2:1 Elliptical Tank Heads

,

18mm Elliptical Tank Heads

,

2:1 Carbon Steel Elliptical Heads

2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness



Description of elliptical tank head

2:1 carbon steel elliptical head with a diameter of 6036mm and a thickness of 18mm is a type of head commonly used in pressure vessels and tanks. The 2:1 ratio means that the head has an elliptical shape that is twice as long as its width. The head is made of high-quality carbon steel, which provides excellent strength and corrosion resistance.



The production process of the elliptical tank head involves several steps, including cutting, forming, and welding. The head is first cut to the required diameter and thickness, and then formed into the elliptical shape using special machinery. After forming, the head is welded using advanced welding techniques to ensure maximum strength and durability.



The 2:1 elliptical head is designed to withstand high-pressure applications, such as those found in chemical processing plants, oil refineries, and power generation facilities. The elliptical shape of the head provides a greater volume capacity compared to other head shapes, making it an ideal choice for tanks and vessels that require a large storage capacity.



Specifications of elliptical heads:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Item Process of dish head

1. picking steel 2. cutting 3. welding 4. heating
5. stamping 6. spinning 7. trimming 8. defect dection
9. QC 10. warehousing 11. transportation

Products of  carbon steel heads

2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness 0

2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness 1

2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness 2







Our Company



Our main products are Dish Head,Hemispherical head,Spherical head,Elliptical head,Conical head,Flat head,etc,available with different kinds of material and OEM service.The certificate we obtained are ISO9001,ISO14001,OHSAS18001 and ASME.

With 40000 square meter workshops,200employees,20years accumulated experience,advanced technologies and equipments,we always support our customers with best quality&best service and fast delivery.We warmly welcome to your visiting of our factory.

2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness 3

2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness 4

2:1 Carbon Steel Elliptical Tank Heads with 6036mm Diameter and 18mm Thinckness 5
