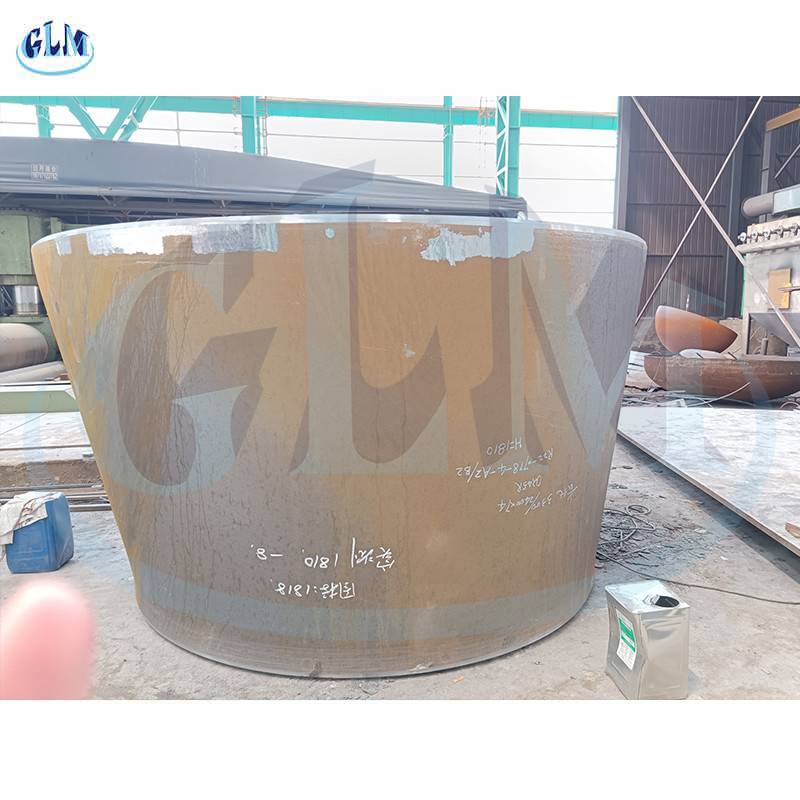

SA516 Gr70 Bottom ID 3300MM Conical Tank Heads Thickness 74mm
Product Details
| Material: | Carbon Steel | Type: | Cap |
|---|---|---|---|
| Bottom ID: | 3300mm | Standard: | ANSI, ASTM, DIN |
| Manufacture Way: | Overlay Clad | Surface: | Coating |
| TOP ID: | 2400MM | Thickness: | 74mm |
| Highlight |
74mm Conical Tank Heads,SA516 Gr70 Conical Dish Head,Sandblasting Conical Tank Heads |
||
Product Description
SA516 Gr70 Bottom ID 3300MM Thickness 74mm Conical Tank Heads
Description
Conical heads are a type of component used in various industrial applications, made from materials such as carbon steel, stainless steel, or aluminum. Basically, conical tank heads are cone-shaped vessels that are commonly used for pressure vessels, storage tanks, boilers, and more. They are created through processes such as spinning, pressing or rolling, or by welding conical sections together. Conical dish heads are designed to evenly distribute the internal pressure within a vessel, which results in greater structural integrity and improved safety. Different types of conical heads can be used depending on the specific application, including standard height, high-strength, and flanged and dished heads.
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
Products of cones
