Carbon Steel 2:1 Semi Elliptical Tank Heads 30-380 Inches

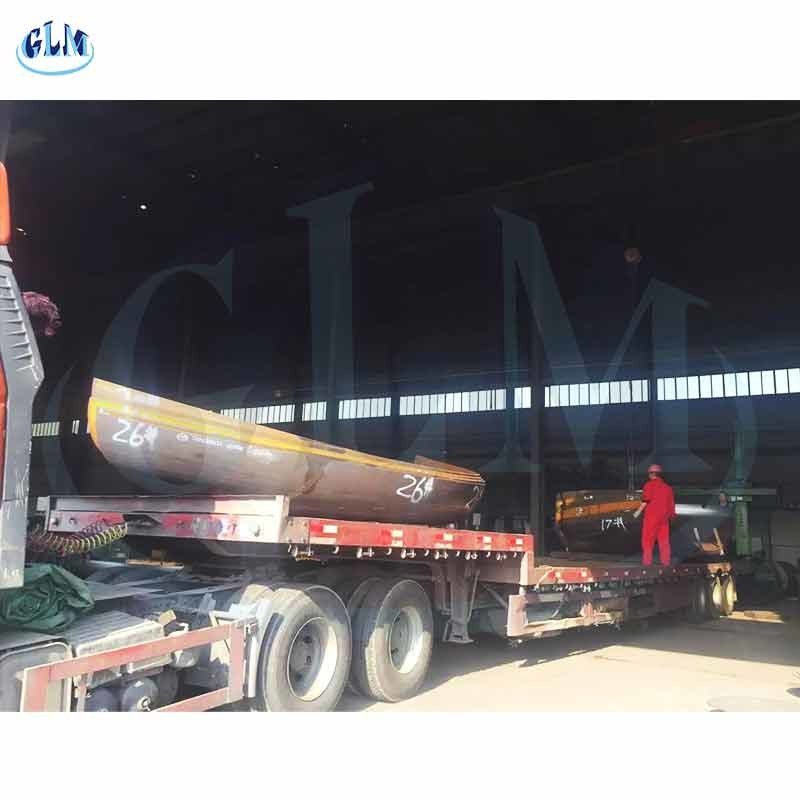

Large Image : Carbon Steel 2:1 Semi Elliptical Tank Heads 30-380 Inches

Product Details:

Place of Origin:	China
Brand Name:	GLM
Certification:	ASME, PED and GB
Model Number:	CAP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box and iron shelf or as percustomers requirement
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Carbon Steel 2:1 Semi Elliptical Tank Heads 30-380 Inches

Description

Material:	SA 516 Gr 60	Surface Treatment::	Sand Blasting / Pickling
Keyword:	Elliptical Tank Heads	Item Type:	Dish Head
Diatemer:	200mm	Thickness:	30mm
SF:	50mm	Certificate:	PED ,ISO14001,ASME
Highlight:	Semi Elliptical Tank Heads , Semi Elliptical Tank Heads 30 Inches , 2:1 Semi Elliptical Head

30-380 inches Carbon Steel 2:1 Semi- Elliptical Tank Heads

Description of Semi- Elliptical Tank Heads

Elliptical tank heads are an economical solution for medium pressure tanks , due to the reduced metal thickness requirement . Click here for GLM' s 2:1 Ellipticalcapabilities and safe minimum chart .
GLM manufactures elliptical tank heads using : Carbon steel Stainless steel Other ferrous and non - ferrous metals and alloys .

Specification of Elliptical Tank Heads :

Brand Name:	GLM
Diameter:	89mm--10000mm
Thickness:	2mm--300mm
Reduction Ratio:	about 10%
Material:	Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method:	Hot forming,cold forming
Surface Treatment:	Sand Blasting,Pickling,oil,discaling
Inspection:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME ,PED and GB
Certificate:	ISO9001,ISO45001,OHSAS18001
Applications:	Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Package:	Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product:	Available

Products of Tanks head

Carbon Steel 2:1 Semi Elliptical Tank Heads 30-380 Inches 0

Carbon Steel 2:1 Semi Elliptical Tank Heads 30-380 Inches 1

Carbon Steel 2:1 Semi Elliptical Tank Heads 30-380 Inches 2

About the packaging of the elliptical head:

Wooden cases, wooden pallet plastic bag or as per customers' requirement.

Carbon Steel 2:1 Semi Elliptical Tank Heads 30-380 Inches 3

Carbon Steel 2:1 Semi Elliptical Tank Heads 30-380 Inches 4

Carbon Steel 2:1 Semi Elliptical Tank Heads 30-380 Inches 5
