Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

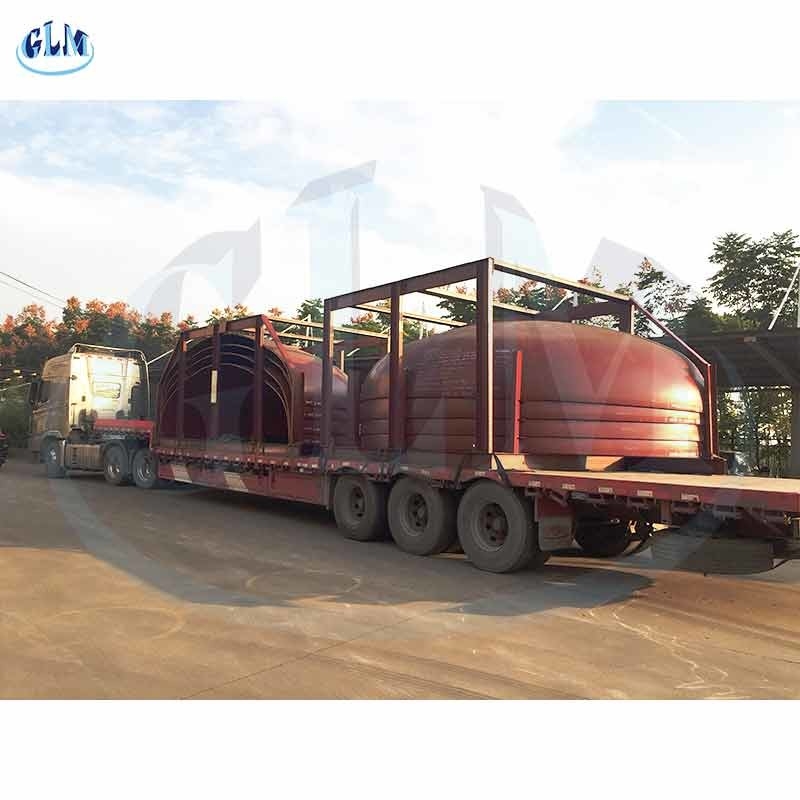

Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness

Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness
Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness
Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness

Large Image :  Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness

Description
Material: SA516 Gr.70N Keywords: Ellipsoidal Dishes End
Surface: Bare,sandblasting Head Code: Ellipsoidal
Application: Offshore , Cryogenic Industry Type: Cap
Diameter: 5500mm Thick: 26mm
Technics: Forged Package: Allet ,steel Frame
High Light:

Ellipsoidal Dished End 5500mm

,

Carbon Steel Ellipsoidal Dished End

,

26mm Thickness Ellipsoidal Dish End

5500mm Diameter 26mm thickness Carbon Steel 2:1 ellipsoidal Dishes end



Description of ellipsoidal Dishes end

Our Custom ellipsoidal Dishes end & Pressure Vessel Heads Steel tank heads are essential for a variety of industries , from pharmaceutical and chemical processing to food and beverage storage . GLM is a leading manufacturer of custom tank heads and pressure vessel heads , offering a wide range of options to meet the unique needs of our customers . Our experienced team will work with you to design a tank head that meets your precise specifications , ensuring that your finished product is of the highest quality . With GLM , you can be confident that you ' re getting the best possible product for your application . Here are the types of tank heads we can manufacture for you .



Specifications of 2:1 ellipsoidal Dishes end:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products of Dishes end

Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness 0

Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness 1

Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness 2

Carbon Steel 2:1 Ellipsoidal Dished End 5500mm Diameter 26mm Thickness 3



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
