3550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

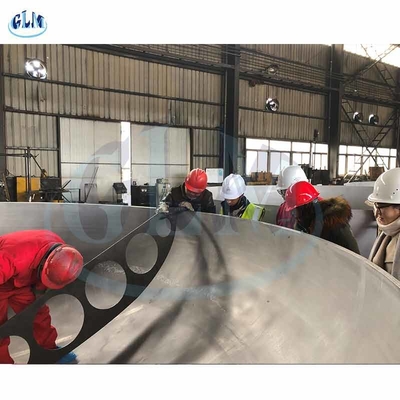

3550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank

3550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank
3550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank

Large Image :  3550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

3550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank

Description
General: 2:1 Ellipsoidal Dish End ID: 3550mm
MOC: SA516 Gr70 Application: Water Storage Tank.pressure Vessel
Delivery Time: 20 Days After Receiving The Down Payment Applicable Standard: ISO, ASME And GB
Test: UT,RT Think: 20mm
Technology: Cold Pressing Reduction Ratio: About 10%
High Light:

2:1 Semi Ellipsoidal Dish End

,

20mm Semi Ellipsoidal Dish End

,

Cold Pressing Ellipsoidal Head

3550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank



Description of 2:1 Semi Ellipsoidal Dish Ends



2:1 Ellipsoidal Dish Ends are the dish end welded to the main body of a pressure vessel. They are produced using a variety of production methods depending on the type of dish end required which will also need to reflect the characteristics of the end product. The head starts off as a flat disc with the material being a suitable grade for the application required. The most common materials used are carbon steel and stainless steel but depending on the requirement, exotic materials and aluminium are used.



Wuhan linmei produces all types of dished ends. They are manufactured from various steel types. The company also offers  ellipsodial dish ends, hemispherical ends, torispherical ends as well as conical knuckled sections and special pressings.





Specifications of Ellipsoidal Dish End:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available







Product of Dish Ends



3550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank 03550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank 1

3550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank 2

3550mm Dimater 20mm Thickness 2:1 Semi Elipsoidal Dish End For Water Storage Tank 3
