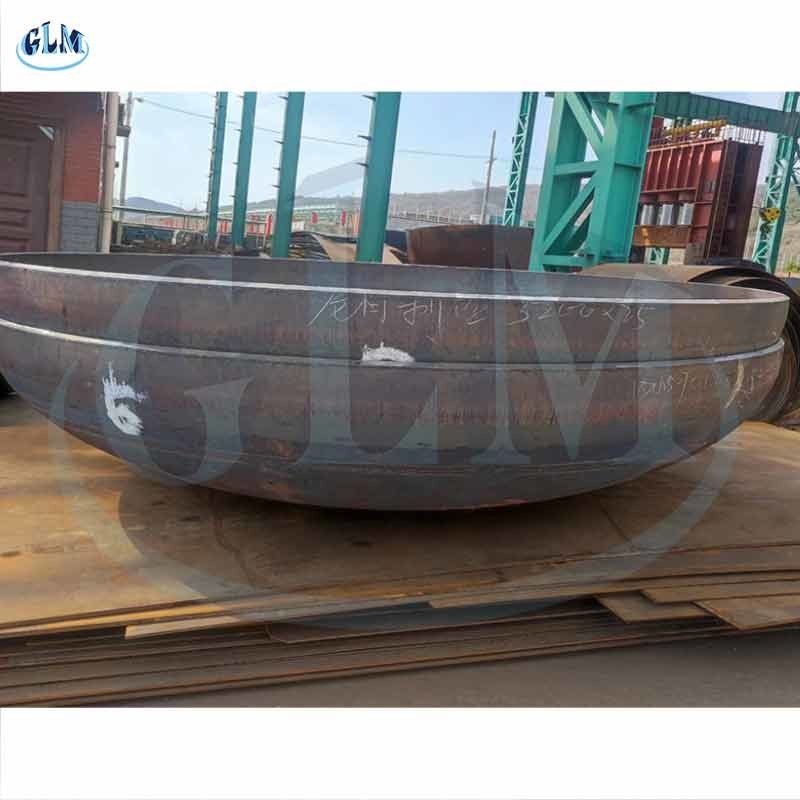

Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness

Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness
Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness
Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness

Large Image :  Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness

Description
Name: Dish Head Specifications: HHA,EHA,THA Or Customized
Surface: Bare,sandblasting Materail: Carbon Steel
Application: Offshore , Cryogenic Industry Technology: Stamping
Diameter: 5200mm Thickness: 25mm
Keywords: Formed Head Connection: Welding
High Light:

5200mm Dish Tank Head

,

25mm Dish Tank Head

,

Carbon Steel Formed Head

Carbon Steel Dish Tank Head,Formed Head 5200mm Diameter 25mm Thickness



Description of dish head

Materials: SA516Gr70

Size : 5200mm diameter x 25 mm thickness

Applications: Our business focus is Oil & Gas, Refinery. Petrochemical and Power Industry.

Elliptical head is a type of pipe fitting or storage tank used in various industrial processes . Its shape resembles that of an egg or ellipse , and allows for the installation of flanges , valves and other components with ease . Elliptical head is commonly used to seal the tops of cylindrical tanks and vessels , and can be tailored to several different shapes and sizes depending on customer requirements . The most common heads are cone, hemispherical and flat - bottom .



Specifications of tank head



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products of formed head



Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness 0

Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness 1

Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness 2

Carbon Steel Dish Tank Head Formed Head 5200mm Diameter 25mm Thickness 3



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
