2:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

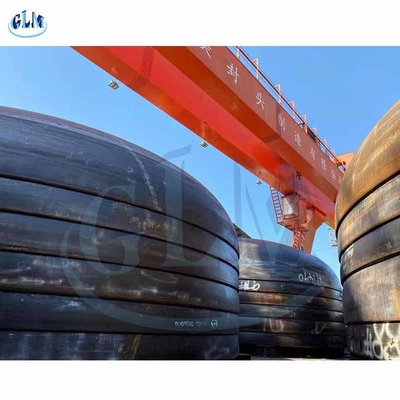

2:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank

2:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank
2:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank

Large Image :  2:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement Ellipsoidal Dish End
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

2:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank

Description
General: 2:1 Ellipsoidal Dish Head ID: 3000mm
MOC: SA516 Gr70 Application: Cap Dish For Slurry Tank 11604
Delivery Time: 20 Days After Receiving The Down Payment Applicable Standard: BS. AWWA And GB
Test: UT,RT Think: 16mm
Technology: Hot Pressing, Cold Pressing Reduction Ratio: About 10%
High Light:

2:1 Ellipsoidal Dish Heads

,

Storage Tank Ellipsoidal Dish Heads

,

16mm Ellipsoidal Dish End

2:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank



Description of 2:1 Ellipsoidal Dish Ends



2:1 Ellipsoidal Dish Ends are the dish head welded to the main body of a pressure vessel. They are produced using a variety of production methods depending on the type of dish end required which will also need to reflect the characteristics of the end product. The head starts off as a flat disc with the material being a suitable grade for the application required. The most common materials used are carbon steel and stainless steel but depending on the requirement, exotic materials and aluminium are used.



Wuhan linmei produces all types of dished ends. They are manufactured from various steel types. The company also offers  2:1 ellipsodial dish heads, hemispherical heads, torispherical heads as well as conical knuckled sections and special pressings.





Specifications of 2:1 Ellipsoidal Dish:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available







Product of Ellipsoidal Dish head



2:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank 02:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank 1

2:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank 2

2:1 Ellipsoidal Dish Heads 3000mm Dimater 16mm Thickness For Storage Tank 3
