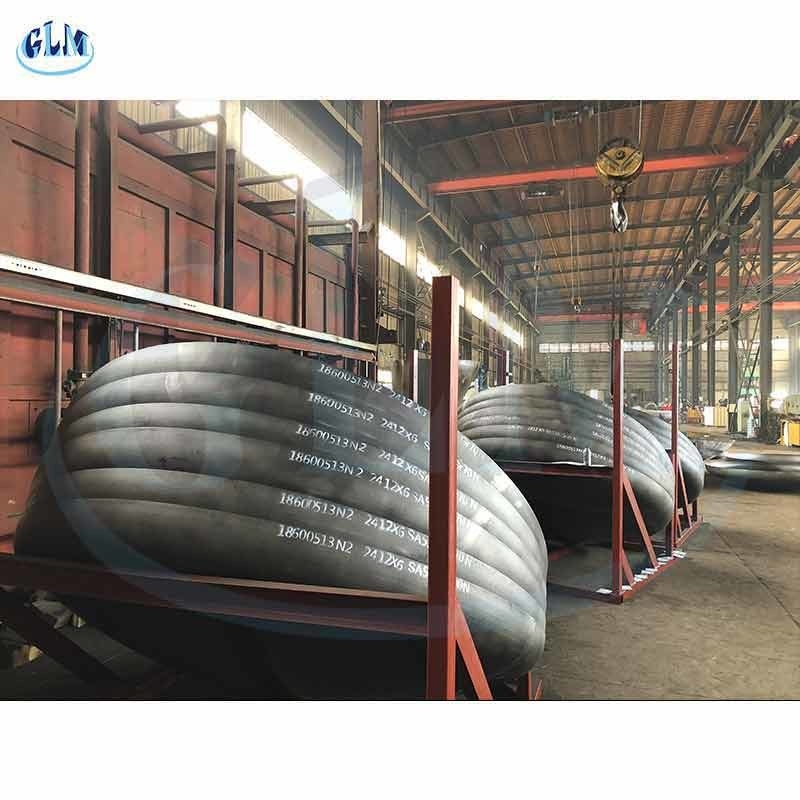

Flanged Only Tank Heads 2412mm Diameter 6mm Thickness

Flanged Only Tank Heads 2412mm Diameter 6mm Thickness
Flanged Only Tank Heads 2412mm Diameter 6mm Thickness
Flanged Only Tank Heads 2412mm Diameter 6mm Thickness Flanged Only Tank Heads 2412mm Diameter 6mm Thickness

Large Image :  Flanged Only Tank Heads 2412mm Diameter 6mm Thickness

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Flanged Only Tank Heads 2412mm Diameter 6mm Thickness

Description
Material: SA516 Gr.70N Specifications: HHA,EHA,THA Or Customized
Surface Treatment: Weld Edge Preparation Delivery Detail: According To Customers Requirement
Application: Offshore , Cryogenic Industry Keywords: Flanged Only Tank Heads
Diameter: 2412mm Thick: 6mm
Type: Cap Forming Method: Hot Forming,cold Forming
High Light:

Flanged Only Tank Heads

,

Flanged Only Tank Heads 6mm

,

SA516 Flat Dished Head

Flanged Only Tank Heads 2412mm Diameter 6mm Thickness



Description of Flanged Only Tank Heads



Tank head, also known as hemming with Flanged Only Tank Heads. Consists of a sphere, a cylinder of a straight edge height and radius of curvature of connecting these two portions is substantially less than the radius of the spherical part of the composition of the transition. steel flat bottom head as a continuous surface, at the junction of three parts, the radius of curvature of the warp mutations, due to changes in curvature, therefore there is bending stress. Bending stress and tensile stress superposition result, the stress this part protruding from the rest. Compared with elliptical dish head, uniform stress distribution which is better, but easier than working, which is not ideal in engineering use. But when the head of the elliptical dish head mold is difficult, then replaced with a dished head.





Specifications of Flanged Only Tank Head:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products of tank heads

Flanged Only Tank Heads 2412mm Diameter 6mm Thickness 0Flanged Only Tank Heads 2412mm Diameter 6mm Thickness 1

Flanged Only Tank Heads 2412mm Diameter 6mm Thickness 2Flanged Only Tank Heads 2412mm Diameter 6mm Thickness 3



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
