SA516 Gr.70N Clad Cone Dished Head 5500mm Diameter

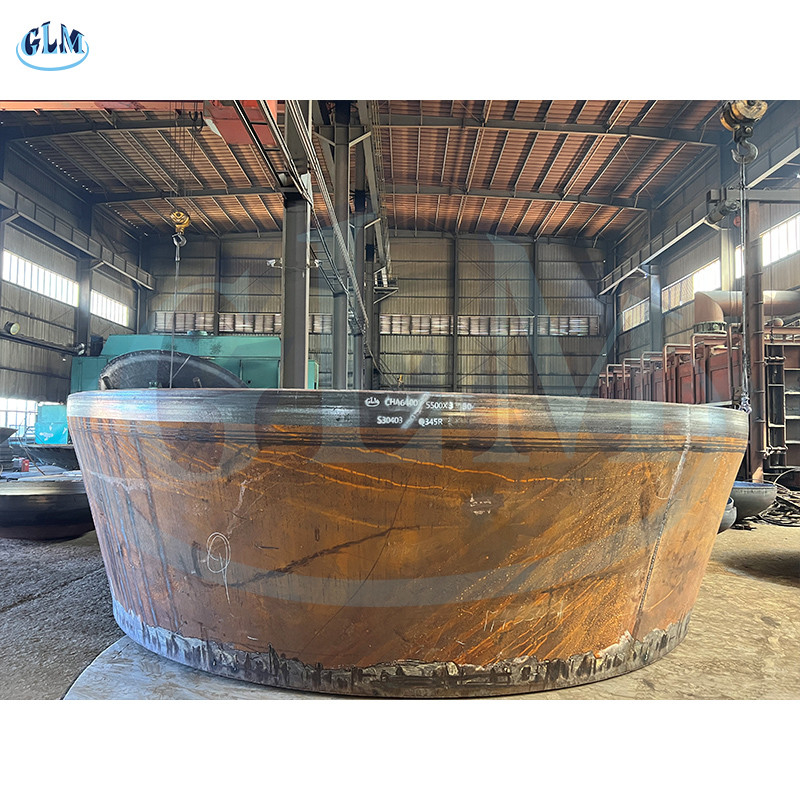

Large Image : SA516 Gr.70N Clad Cone Dished Head 5500mm Diameter

Product Details:

Place of Origin:	China
Brand Name:	GLM
Certification:	ASME, PED and GB
Model Number:	CAP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box and iron shelf or as percustomers requirement
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000

Contact Now

SA516 Gr.70N Clad Cone Dished Head 5500mm Diameter

Description

Head Code:	Cone Dished Head	Technology:	Hot Pressing,cold Pressing
Reduction Ratio::	About 10%	Application:	Storage Tank, Boiler, Seperation Equipment, Tower
Material:	SA516 Gr.70N	Keywords:	Clad Cone Head
Diameter:	5500mm
Highlight:	Clad Cone Dished Head , SA516 Clad Cone Dished Head , Conical Tank Heads 5500mm

Clad Cone Dished Head 5500mm Diameter

Product Description

cone dished heads

CHA(45º)

Ri≧0.1Di and Ri≥3,

Ta=45º

DN expressed in Di/Dis

CHA(30º)

Ri≥0.1Di and Ri≥3t

a=30º

DN expressed in Di/Dis

Specifications

Brand Name:	GLM
Diameter:	89mm--10000mm
Thickness:	2mm--300mm
Reduction Ratio:	about 10%
Material:	Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method:	Hot forming,cold forming
Surface Treatment:	Sand Blasting,Pickling,oil,discaling
Inspection:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME ,PED and GB
Certificate:	ISO9001,ISO45001,OHSAS18001
Applications:	Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Package:	Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product:	Available

Product Image

SA516 Gr.70N Clad Cone Dished Head 5500mm Diameter 0

SA516 Gr.70N Clad Cone Dished Head 5500mm Diameter 1
