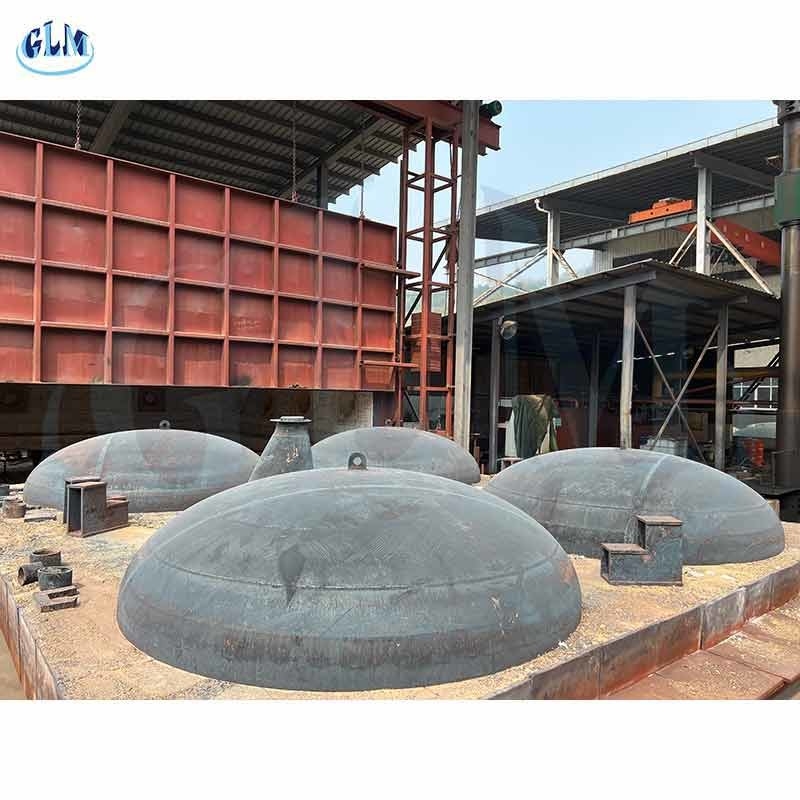

4500mm Diameter 30mm Thickness Carbon Steel Elliptical Bottoms

4500mm Diameter 30mm Thickness Carbon Steel Elliptical Bottoms
4500mm Diameter 30mm Thickness Carbon Steel Elliptical Bottoms

Large Image :  4500mm Diameter 30mm Thickness Carbon Steel Elliptical Bottoms

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

4500mm Diameter 30mm Thickness Carbon Steel Elliptical Bottoms

Description
Name: Elliptical Bottom Specifications: HHA,EHA,THA Or Customized
Surface: Bare,sandblasting Materail: Carbon Steel,stainless Steel
Application: Offshore , Cryogenic Industry Technology: Stamping
Diameter: 4500mm Thickness: 30mm
Keywords: Ellipsodial Bottoms, Carbon Steel Head Connection: Welding
High Light:

Carbon Steel Elliptical Bottoms

,

30mm Elliptical Bottoms

,

4500mm Elliptical Dish Head

4500mm Diameter 30mm Thickness Carbon Steel Elliptical Bottoms



Description of ellipsoidal Bottoms

elliptical bottom  Materail:Carbon Steel  thk.=30mm  Dia= 4500mm

Technology: Hot pressing, Cold pressing

Surface Treatment: Sand Blasting,Pickling
Certificate: ISO9001 ,ISO14001,OHSAS18001,PED,BV,ASME
Applications: Petroleum, chemical industry, water conservancy, electric power,boiler, machinery, metallurgy, sanitary construction etc.



Specifications of elliptical Heads:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products of pressure vessel heads

4500mm Diameter 30mm Thickness Carbon Steel Elliptical Bottoms 0

4500mm Diameter 30mm Thickness Carbon Steel Elliptical Bottoms 1

4500mm Diameter 30mm Thickness Carbon Steel Elliptical Bottoms 2

4500mm Diameter 30mm Thickness Carbon Steel Elliptical Bottoms 3

FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
