SA516 Grade 70 Ellipsoidal Dish Head Diameter 2400mm Thickness 20mm

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

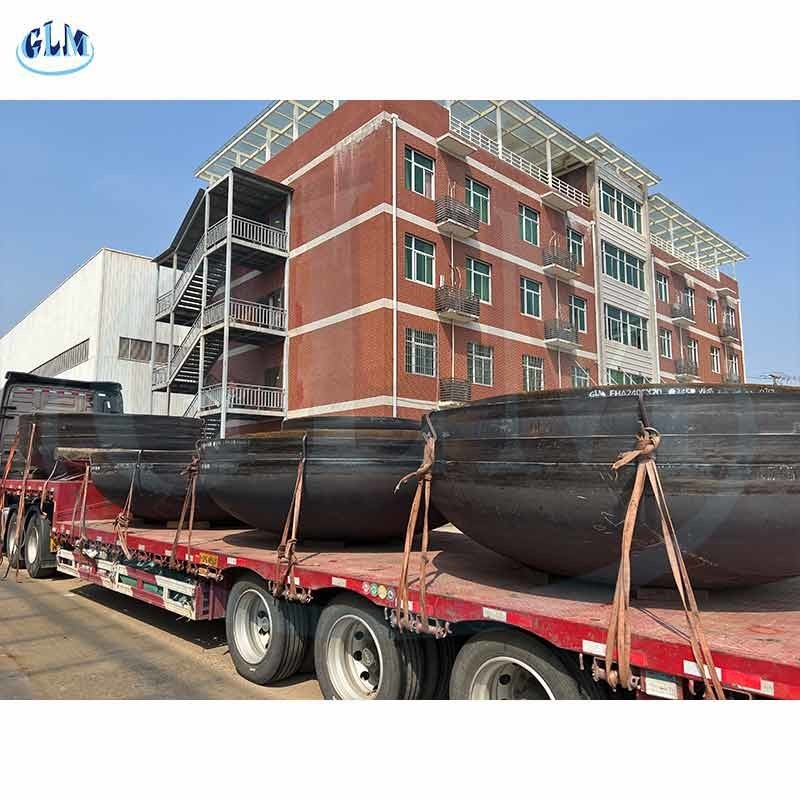

SA516 Grade 70 Ellipsoidal Dish Head Diameter 2400mm Thickness 20mm

SA516 Grade 70 Ellipsoidal Dish Head Diameter 2400mm Thickness 20mm
SA516 Grade 70 Ellipsoidal Dish Head Diameter 2400mm Thickness 20mm

Large Image :  SA516 Grade 70 Ellipsoidal Dish Head Diameter 2400mm Thickness 20mm

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

SA516 Grade 70 Ellipsoidal Dish Head Diameter 2400mm Thickness 20mm

Description
Name: Ellipsoidal Head Specifications: HHA,EHA,THA Or Customized
Surface: Bare,sandblasting Materail: SA516 Grade A
Application: Offshore , Cryogenic Industry Technology: Stamping
Diameter: 2400mm Thickness: 20mm
Keywords: Ellipsodial Head, SE 2:1 Heads Connection: Welding
High Light:

Grade 70 Ellipsoidal Dish Head

,

SA516 Ellipsoidal Dish Head

,

2400mm Elliptical Dish Head

SA516 Grade 70 ellipsoidal dish head diameter 2400mm thickness 20mm



Description of ellipsoidal head

elliptical head 2:1  Materail:SA516 Grade A  thk.=20mm  Dia= 2400mm

Technology: Hot pressing, Cold pressing

Surface Treatment: Sand Blasting,Pickling
Certificate: ISO9001 ,ISO14001,OHSAS18001
Applications: Petroleum, chemical industry, water conservancy, electric power,boiler, machinery, metallurgy, sanitary construction etc.



Specifications of SE 2:1 Heads:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products of vessel heads

SA516 Grade 70 Ellipsoidal Dish Head Diameter 2400mm Thickness 20mm 0SA516 Grade 70 Ellipsoidal Dish Head Diameter 2400mm Thickness 20mm 1

SA516 Grade 70 Ellipsoidal Dish Head Diameter 2400mm Thickness 20mm 2SA516 Grade 70 Ellipsoidal Dish Head Diameter 2400mm Thickness 20mm 3



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
