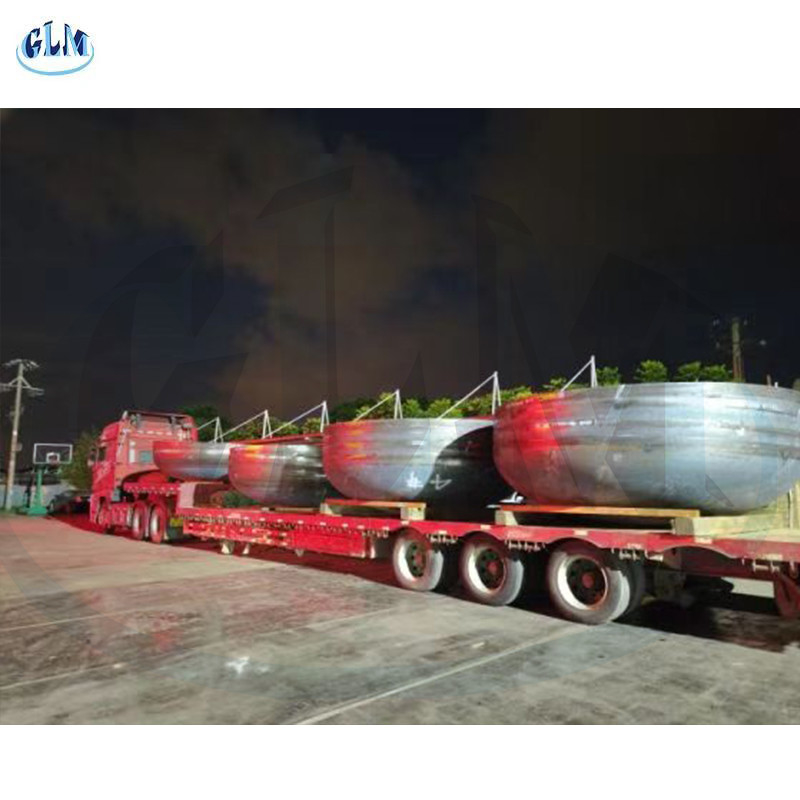

2490mm Diameter SA516 Gr 70 Profile Ellipsoidal Head 2:1 Thickness 32mm

2490mm Diameter SA516 Gr 70 Profile Ellipsoidal Head 2:1 Thickness 32mm
2490mm Diameter SA516 Gr 70 Profile Ellipsoidal Head 2:1 Thickness 32mm

Large Image :  2490mm Diameter SA516 Gr 70 Profile Ellipsoidal Head 2:1 Thickness 32mm

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

2490mm Diameter SA516 Gr 70 Profile Ellipsoidal Head 2:1 Thickness 32mm

Description
Name: Ellipsoidal Head 2:1 Specifications: HHA,EHA,THA Or Customized
Surface: Bare,sandblasting Materail: A516GR70
Application: Offshore , Cryogenic Industry Technology: Stamping
Diameter: 24900mm Thickness: 32mm
Keywords: Dish Ends 2:1 Connection: Welding
High Light:

SA 516 Gr 70 Ellipsoidal Head

,

Profile Ellipsoidal Head 2:1

,

Profile Ellipsoidal Head 32mm

2490mm diameter SA516 Gr.70 profile ellipsoidal head 2:1 thickness 32mm



Description of ellipsoidal head 2:1

ellipsoidal head 2:1 A516gr70 NOM thk.=35mm Min thk=27mm ID= 2490mm SF=50mm



Torispherical head
These heads have a dish with a fixed radius (CR), the size of which depends on the type of torispherical head. The transition between the cylinder and the dish is called the knuckle. The knuckle has a toroidal shape.



Specifications of ellipsoidal head:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products of Dished ends 2:1

2490mm Diameter SA516 Gr 70 Profile Ellipsoidal Head 2:1 Thickness 32mm 02490mm Diameter SA516 Gr 70 Profile Ellipsoidal Head 2:1 Thickness 32mm 1

2490mm Diameter SA516 Gr 70 Profile Ellipsoidal Head 2:1 Thickness 32mm 22490mm Diameter SA516 Gr 70 Profile Ellipsoidal Head 2:1 Thickness 32mm 3



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
