ASTM A516GR60 Seamless Elliptical Heads 2:1 2300mm Dia 15mm Thickness

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

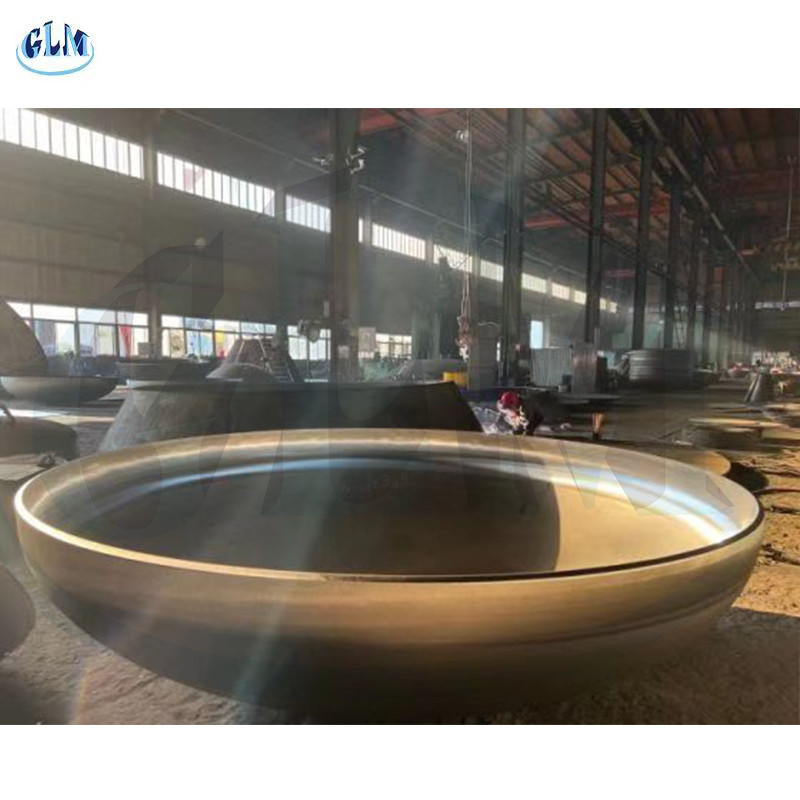

ASTM A516GR60 Seamless Elliptical Heads 2:1 2300mm Dia 15mm Thickness

ASTM A516GR60 Seamless Elliptical Heads 2:1 2300mm Dia 15mm Thickness
ASTM A516GR60 Seamless Elliptical Heads 2:1 2300mm Dia 15mm Thickness

Large Image :  ASTM A516GR60 Seamless Elliptical Heads 2:1 2300mm Dia 15mm Thickness

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

ASTM A516GR60 Seamless Elliptical Heads 2:1 2300mm Dia 15mm Thickness

Description
Name: Seamless Elliptical Heads 2:1 Specifications: HHA,EHA,THA Or Customized
Surface: Bare,sandblasting Materail: ASTM A516GR60
Application: Offshore , Cryogenic Industry Technology: Stamping
Diameter: 2300mm Thickness: 15mm
Keywords: Elliptical Heads 2:1 Connection: Welding
High Light:

ASTM A516GR60 Elliptical Heads

,

Bare Seamless Elliptical Heads

,

15mm Seamless Elliptical Heads

2300mm Dia 15mm thickness ASTM A516GR60 Seamless elliptical heads 2:1



Description of Seamless elliptical heads 2:1

Materials: ASTM A516GR60

Size : 2030 x thickness 15 mm

Applications: Our business focus is Oil & Gas, Refinery. Petrochemical and Power Industry.

Torispherical head
These heads have a dish with a fixed radius (CR), the size of which depends on the type of torispherical head. The transition between the cylinder and the dish is called the knuckle. The knuckle has a toroidal shape.



Specifications of elliptical heads:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products of elliptical heads 2:1



ASTM A516GR60 Seamless Elliptical Heads 2:1 2300mm Dia 15mm Thickness 0

ASTM A516GR60 Seamless Elliptical Heads 2:1 2300mm Dia 15mm Thickness 1ASTM A516GR60 Seamless Elliptical Heads 2:1 2300mm Dia 15mm Thickness 2



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
