Diatemer 1900mm Thickness 12mm SA 516 Gr 70 Elliptical Dish Head 2:1 For Vessels

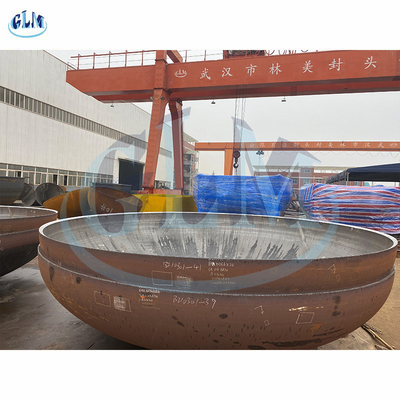

Large Image : Diatemer 1900mm Thickness 12mm SA 516 Gr 70 Elliptical Dish Head 2:1 For Vessels

Product Details:

Place of Origin:	China
Brand Name:	GLM
Certification:	ASME, PED and GB
Model Number:	CAP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box and iron shelf or as percustomers requirement
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Diatemer 1900mm Thickness 12mm SA 516 Gr 70 Elliptical Dish Head 2:1 For Vessels

Description

Material:	SA 516 Gr 60	Surface Treatment::	Sand Blasting / Pickling
Keyword:	Elliptical Dish Head 2 1	Item Type:	Dish Head
Diatemer:	1900mm	Thickness:	12mm
SF:	50mm	Certificate:	ISO9001 ,ISO14001,asme
Highlight:	SA 516 Gr 70 Elliptical Dish Head , 1900mm Elliptical Dish Head , Vessels Semi Elliptical Head 12mm

Diatemer 1900mm Thickness 12mm SA 516 Gr 70 Elliptical dish head 2:1 for vessels

Description of Elliptical dish head 2:1

Item type: Elliptical dish head 2:1

Description / Size: Elliptical dish head 2:1 , ID=1900mm,thickness Min 12mm,SF=50mm

Material spec: SA516 Gr 70

Specification of elliptical head 2:1 :

Brand Name:	GLM
Diameter:	89mm--10000mm
Thickness:	2mm--300mm
Reduction Ratio:	about 10%
Material:	Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method:	Hot forming,cold forming
Surface Treatment:	Sand Blasting,Pickling,oil,discaling
Inspection:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME ,PED and GB
Certificate:	ISO9001,ISO45001,OHSAS18001
Applications:	Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Package:	Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product:	Available

Products of 2:1 semi elliptical dish head

Diatemer 1900mm Thickness 12mm SA 516 Gr 70 Elliptical Dish Head 2:1 For Vessels 0

Diatemer 1900mm Thickness 12mm SA 516 Gr 70 Elliptical Dish Head 2:1 For Vessels 1

About the packaging of the elliptical head:

Wooden cases, wooden pallet plastic bag or as per customers' requirement.

Diatemer 1900mm Thickness 12mm SA 516 Gr 70 Elliptical Dish Head 2:1 For Vessels 4

Diatemer 1900mm Thickness 12mm SA 516 Gr 70 Elliptical Dish Head 2:1 For Vessels 7
