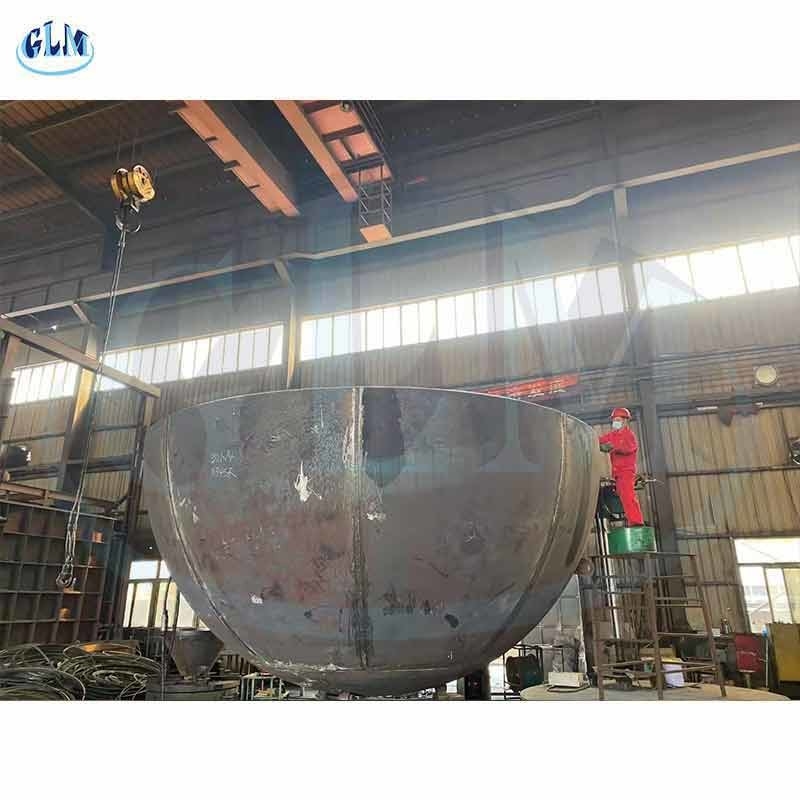

6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick

6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick
6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick
6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick 6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick

Large Image :  6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick

Description
Material: SA516 Gr.70N Keywords: Hemispherica Head , Head Plate
Surface: Bare,sandblasting Head Code: Hemispherical
Application: Offshore , Cryogenic Industry Type: Cap
Diameter: 6400mm Thick: 20mm
Technics: Forged Package: Allet ,steel Frame
High Light:

GR70 Hemispherical Head

,

SA516 Hemispherical Head

,

20mm Thick Hemispherical Tank Heads

6400mm Diameter SA516 GR70 Hemispherica Head , Head Plate 20mm Thick



Description of hemispherical head

The hemispherical head shape is superior to the torispherical shape in strength. Hemispheres are the best shape for mixing vessels such as pharmaceutical manufacturing bowls, because the corner which can cause burning-on of product in a torispherical end shape, is therefore eliminated. Our mild steel hemispheres are of extra smooth contour, so that agitator blades swipe the surfaces much more effectively.



head plate offer a stronger vacuum, and drain better as a tank or pressure vessel bottom. Hemispheres are the well accepted shape for specialist pressure vessel design, notably in the pharmaceutical, cosmetic, and food cooking, industries.



Specifications of Hemispherical Dished Head:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Products of Head Plates

6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick 0

6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick 1

6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick 2

6400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick 36400mm Diameter SA516 GR70 Hemispherical Head 20mm Thick 4



FAQ:

1. What’s the information should I provide when inquiry?

Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?

Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?

Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?

Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices.
