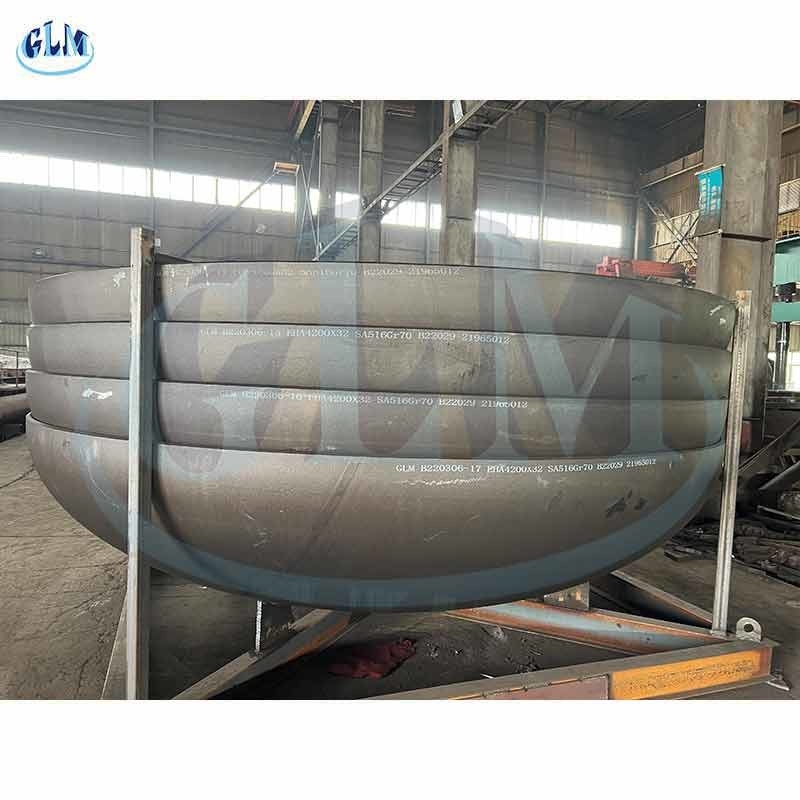

24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End

24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End
24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End
24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End 24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End

Large Image :  24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000
Contact Now

24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End

Description
General: ASME CarbonSteel Elliptical Dish End Material: As516 Gr 70
Specification: Standard Specification Surface Treatment: Rust-proof Oil, Galvanizing
Application: Heat Pressure Vessel, Reaction Pressure Vessel Delivery Time: 20 Days After Receiving The Down Payment
Thickness: 20mm Keywords: Formed Head,asme Elliptical End
Highlight:

24mm Thickness Hot Formed Head

,

ASME Hot Formed Head

,

Carbon Steel Elliptical Dish End

24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End



Description of asme elliptical dish end



The elliptical end ( or named ellipsoidal head ) which is a head consisting of two parts: a rotating ellipsoidal sphere and a cylindrical straight section.



asme elliptical dish end is fabricated to have a certain shape instead of a particular dish radius or knuckle radius. The dish radius is approximately 90% of the diameter and the knuckle radius is approximately 17% of the diameter. 2:1 elliptical flanged and dished ends are ASME compliant.





Quality Control of dish head:

Materials purchased - Physical and chemical tests - Production - Hot forging and forming - Heat treatment - Inspection - Fine finishing - Finished product inspection - Marking - Finished product inspection - Marking - Packing and typing - Shipping.





Specifications of elliptical dish end:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.
Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available







Product Display of carbon steel end



24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End 0

24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End 1

24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End 2

24mm Thickness Hot Formed Head ASME Carbon Steel Elliptical Dish End 3
