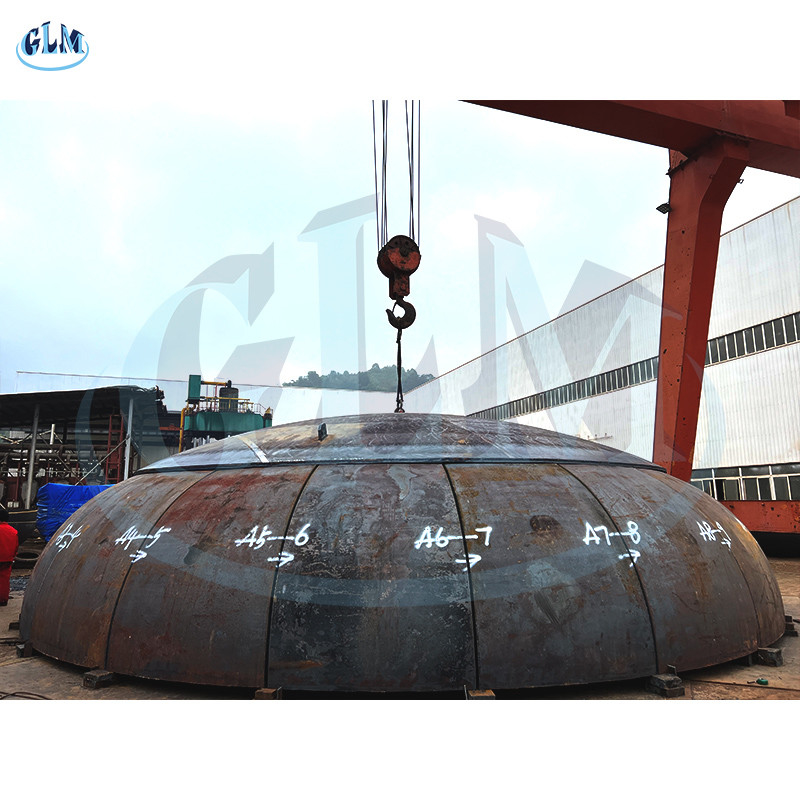

Carbon Steel 2:1 Ellipsoidal Dished Head Dish End Diameter 11000mm Thick 58mm
Product Details
| Material: | SA 516 Gr 700 | Surface Treatment:: | Sand Blasting / Pickling |
|---|---|---|---|
| Keyword: | 2:1 Ellipsoidal Dished Head | Item Type: | Dish End |
| Diatemer: | 11000mm | Thickness: | 58mm |
| SF: | 50mm | Certificate: | ISO9001 ,ISO14001,asme |
| Highlight |
2:1 Ellipsoidal Dished Head,Carbon Steel Ellipsoidal Dished Head,Thick 58mm Semi Elliptical Head |
||
Product Description
Large Diameter11000mm Thick 58mm Carbon Steel 2:1 ellipsoidal dished head,dish end
Description of 2:1 Ellipsoidal dished head
Ellipsoidal head has an elliptical shape and the most popular ratio is 2:1 (which means that the width of the ellipsoidal is double the depth). When it comes to handling pressure stresses, ellipsoidal dished head is less efficient than a hemispherical head, so ASME specifications require increased thickness.
Specification of dished head:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
Products of ellipsoidal dished head
About the packaging of the carbon steel head:
Wooden cases, wooden pallet plastic bag or as per customers' requirement.
