GLM SA516 GR70N Elliptical Dish Head Dish End Super Large Diameter 7600mm
Product Details
| Material: | SA516 GR70N | Head Code: | Elliptical Dish Head |
|---|---|---|---|
| Surface Treatment: | Weld Edge Preparation | Mfg Process: | Cold Press |
| Application: | Offshore , Cryogenic Industry | Keywords: | 2:1 Ellipsoidal Heads |
| Diameter: | 7600mm | Thickness: | 23mm |
| Highlight |
GR70N Elliptical Dish Head,SA516 Elliptical Dish Head,7600mm Elliptical Dish End |
||
Product Description

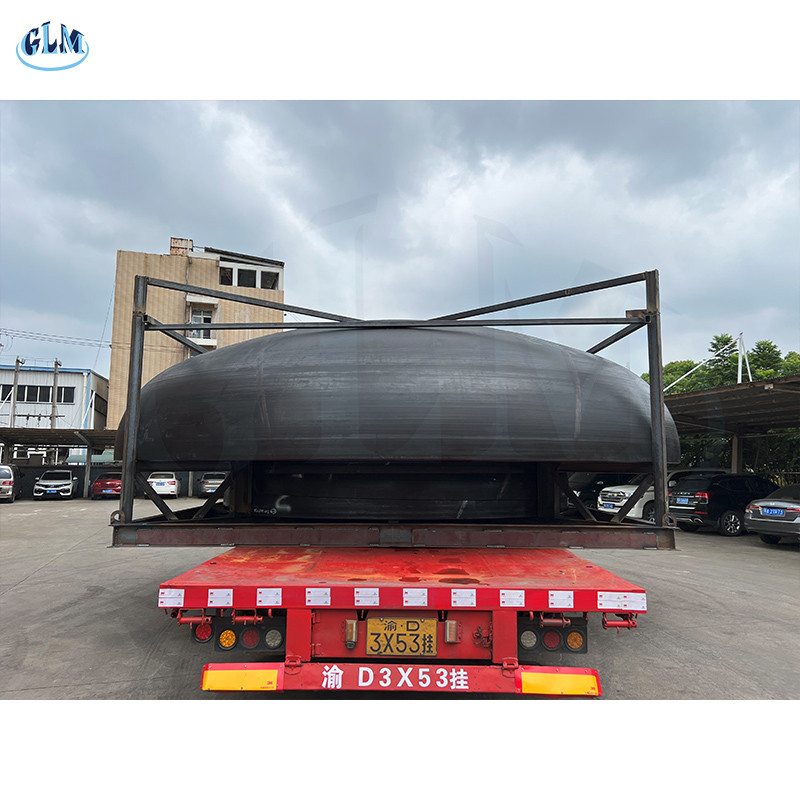

GLM super large diameter 7600mm SA516 GR70N elliptical dish head,dish end
Description of elliptical dish head
Ellipsoidal Head
This head has an elliptical shape and the most popular ratio is 2:1 (which means that the width of the ellipse is double the depth). When it comes to handling pressure stresses, elliptical head is less efficient than a hemispherical head, so ASME specifications require increased thickness.
Specifications of dish end:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
Item Process of dish head
| 1. | picking steel | 2. | cutting | 3. | welding | 4. | heating |
| 5. | stamping | 6. | spinning | 7. | trimming | 8. | defect dection |
| 9. | QC | 10. | warehousing | 11. | transportation |
Products of elliptical head
Our Company
Our main products are Dish Head,Hemispherical head,Spherical head,Elliptical head,Conical head,Flat head,etc,available with different kinds of material and OEM service.The certificate we obtained are ISO9001,ISO14001,OHSAS18001 and ASME.
With 40000 square meter workshops,200employees,20years accumulated experience,advanced technologies and equipments,we always support our customers with best quality&best service and fast delivery.We warmly welcome to your visiting of our factory.
