ASME SA516-70 Hemispherical Pressure Vessel Dished Head 40.5” ID X .250 Min

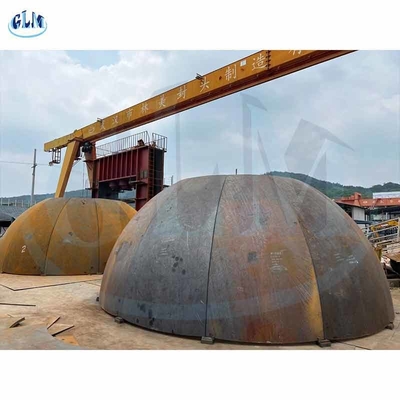

Large Image : ASME SA516-70 Hemispherical Pressure Vessel Dished Head 40.5” ID X .250 Min

Product Details:

Place of Origin:	China
Brand Name:	GLM
Certification:	ASME, PED and GB
Model Number:	CAP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box and iron shelf or as percustomers requirement
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

ASME SA516-70 Hemispherical Pressure Vessel Dished Head 40.5” ID X .250 Min

Description

Material:	SA516-70	Shape:	Hemispherical
Usage:	Convey Water, Oil, Gas, Steam Etc.	Industry Focus:	Storage Vessels
Keyword:	Hemispherical Pressure Vessel Dished Head	Standard:	ASME
ID:	40.5”	Test:	UT,RT,MT,PT,ET
Technics:	Forged	Thickness:	2mm--300mm
Highlight:	Hemispherical Pressure Vessel Dished Head , SA516-70 Pressure Vessel Dished Head , ASME Elliptical Dish End

ASME 40.5” ID x .250 min SA516-70 Hemispherical Pressure Vessel Dished Head

Description of pressure vessel dished head

Wuhan linmei is also specialized in the manufacture of dished head, elliptcal dish head, Hemispherical pressure vessel dished head, shells, conical heads, special flat heads and their straightening , and can handle even large thicknesses.
We also build hemispherical dished heads of any thickness and diameter, and do hot- and cold-forming. We machine ferrous and non-ferrous materials, clad materials, titanium, and other materials on request.

Specifications of dish head:

Brand Name:	GLM
Diameter:	89mm--10000mm
Thickness:	2mm--300mm
Reduction Ratio:	about 10%
Material:	Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method:	Hot forming,cold forming
Surface Treatment:	Sand Blasting,Pickling,oil,discaling
Inspection:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME ,PED and GB
Certificate:	ISO9001,ISO45001,OHSAS18001
Applications:	Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Package:	Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product:	Available

Product of hemispherical pressure vessel dished head

ASME SA516-70 Hemispherical Pressure Vessel Dished Head 40.5” ID X .250 Min 0

ASME SA516-70 Hemispherical Pressure Vessel Dished Head 40.5” ID X .250 Min 1

ASME SA516-70 Hemispherical Pressure Vessel Dished Head 40.5” ID X .250 Min 2

ASME SA516-70 Hemispherical Pressure Vessel Dished Head 40.5” ID X .250 Min 3
