ST /ST UB-6 End Cap Dish 3200mm Dimater 14mm Thick For Slurry Tank

ST /ST UB-6 End Cap Dish 3200mm Dimater 14mm Thick For Slurry Tank
ST /ST UB-6 End Cap Dish 3200mm Dimater 14mm Thick For Slurry Tank

Large Image :  ST /ST UB-6 End Cap Dish 3200mm Dimater 14mm Thick For Slurry Tank

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement Ellipsoidal Dish End
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

ST /ST UB-6 End Cap Dish 3200mm Dimater 14mm Thick For Slurry Tank

Description
General: Dish Cap End Material: Stainless Steel
DO: 3200mm CR: 3200mm
Application: Cap Dish For Slurry Tank 11604 Delivery Time: 20 Days After Receiving The Down Payment
DH: 400mm SF: 100mm
Think: 14mm KR: 320mm
High Light:

3200mm End Cap Dish

,

14mm Thick End Cap Dish

,

Slurry Tank Ellipsoidal Dish End

3200mm Dimater 14mm thick ST /ST UB-6 end cap dish for slurry tank



Description of ellipsoidal dish end



Dished heads are the dish end caps welded to the main body of a pressure vessel. They are produced using a variety of production methods depending on the type of end cap dish required which will also need to reflect the characteristics of the end product. The cap starts off as a flat disc with the material being a suitable grade for the application required. The most common materials used are carbon steel and stainless steel but depending on the requirement, exotic materials and aluminium are used.



Wuhan linmei produces all types of dished ends. They are manufactured from various steel types. The company also offers ASME 2:1 semi ellipsodial, hemispherical petals, torispherical ends as well as conical knuckled sections and special pressings.





Specifications of end cap dish:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available

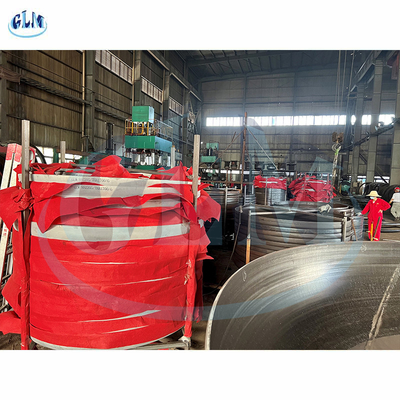

Product of dished head



ST /ST UB-6 End Cap Dish 3200mm Dimater 14mm Thick For Slurry Tank 0ST /ST UB-6 End Cap Dish 3200mm Dimater 14mm Thick For Slurry Tank 1

ST /ST UB-6 End Cap Dish 3200mm Dimater 14mm Thick For Slurry Tank 2

ST /ST UB-6 End Cap Dish 3200mm Dimater 14mm Thick For Slurry Tank 3
