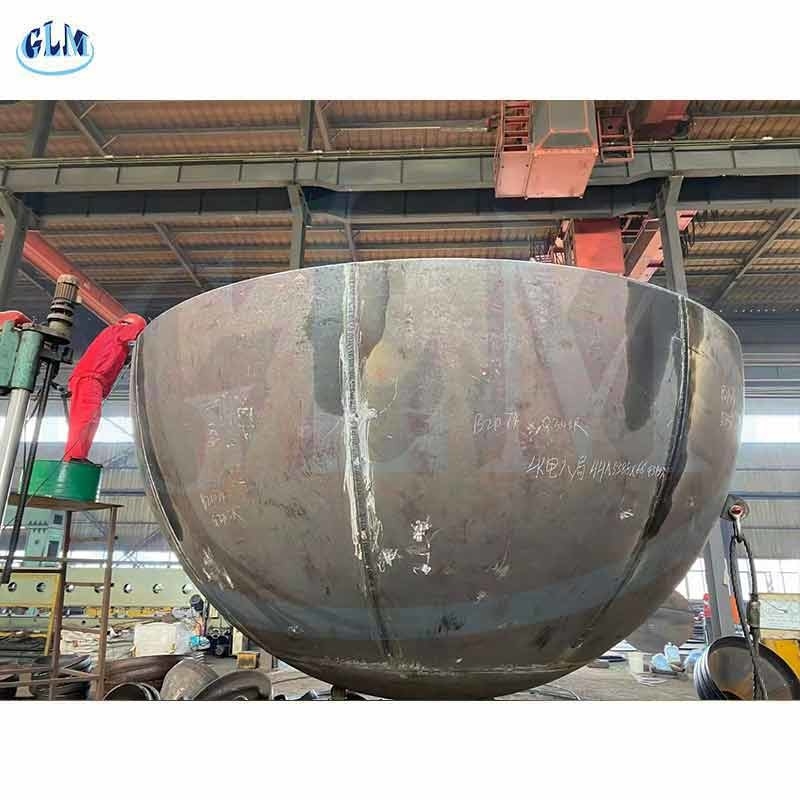

Large Image :  Cladded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished Ends

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 25-125$
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

Cladded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished Ends

Description
General: Dished Ends Material: SA516 Gr.70N
Keyword: Hemispherical Bottom Application: Chemical Industry, Water Conservancy
Size Range: According To Drawing Thick: 26mm
Head Code: Elliptical Outter Surface Treatment: Sand Blasting
Heat Treatment: Annealing Customized Support: OEM
High Light:

Cladded Material Tank Spherical Bottom

,

SA516 Tank Spherical Bottom

,

OEM Tank Hemispherical Bottom

Claded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished ends





Description OF Dish end



Dished ends is a component used to close the end of the vessel to isolate the medium inside and outside, also called dished head. The Hemispherical Bottom Dished ends of a cylindrical vessel is generally a very rotating shell. According to the shape of the Hemispherical Bottom Dished ends surface, it can be divided into convex, conical, flat and combined shapes. Convex vessel head refers to the dish head with convex outer surface shape, such as hemispherical, ellipsoidal, disc-shaped and spherical head without folded edge. Some gas cylinders adopt the combined shape bottom head with convex surface facing inward, which can ensure the strength and meet the demand of safe use at the same time





Specifications of dish end:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available



Product Display of dish head



Cladded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished Ends 0Cladded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished Ends 1

Cladded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished Ends 2

Cladded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished Ends 3

Cladded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished Ends 4



Recommended by seller



Cladded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished Ends 5Cladded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished Ends 6

Cladded Material Bottom Tank Spherical Bottom Hemispherical Bottom Dished Ends 7



FAQ:

1. What’s the information should I provide when inquiry?
Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.



2. what are surface treatment of the product?



Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.



3. How do you ensure the quality of products?



Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.



4. Can you help us matching related products?



Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
