Dished Head Tank Tube End Elliptical 2:1 Dish Head

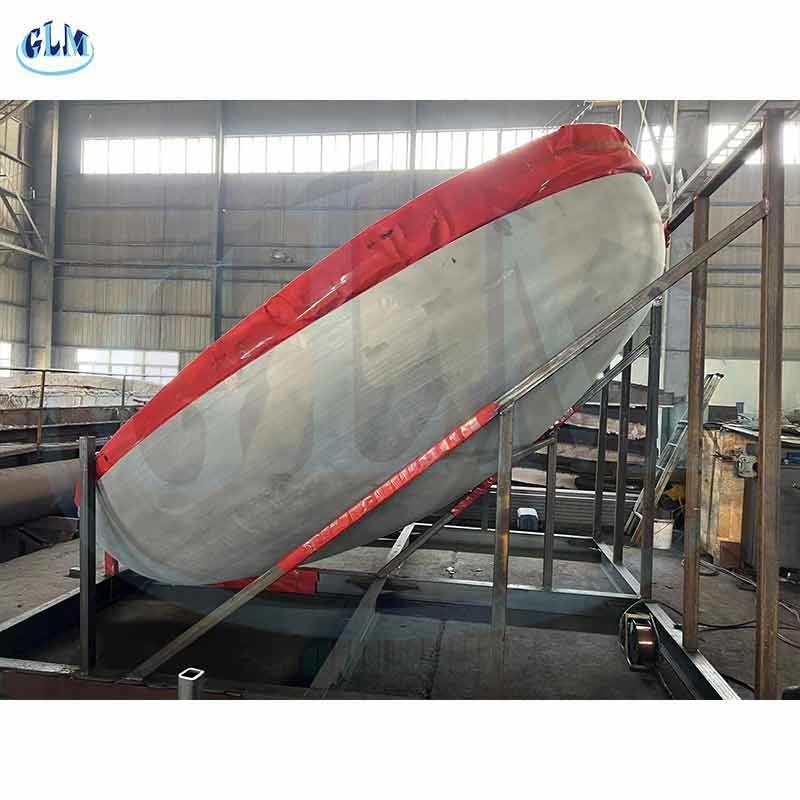

Large Image : Dished Head Tank Tube End Elliptical 2:1 Dish Head

Product Details:

Place of Origin:	China
Brand Name:	GLM
Certification:	ASME, PED and GB
Model Number:	CAP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box and iron shelf or as percustomers requirement
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000

Contact Now

Dished Head Tank Tube End Elliptical 2:1 Dish Head

Description

General:	Elliptical 2:1 Dish Head	Diameter:	2400mm
Material:	Stainless Steel Heads	Surface Treatment:	Sand Blasting,pickling
Technics:	Forged	Keyword:	Vessel Head
Technic:	Forged /cold Formed /hot Pressing	Reduction Ratio:	About 10%
Test:	UT,RT,MT,PT,ET	OEM:	Avaiable
Highlight:	Dished Head Tank Tube End , Elliptical Dished Head Tank Tube End , Elliptical 2:1 Dish Head

Dished Head Tank Tube End Elliptical 2:1 Dish Head

Description of elliptical 2:1dish head:

The ASME Section VIII-Division 1 determines the rules for dished heads. The most common configurations are Elliptical 2:1 Dish Head ,torispherical head,hemispheres tank end , Stainless steel heads ,spherical dished bottoms ,Conical Ends,shallow heads . How the shapes are ,make some confusion for beginners and even professionals users of ASME Section VIII .

Specifications of dished head:

Brand Name:	GLM
Diameter:	89mm--10000mm
Thickness:	2mm--300mm
Reduction Ratio:	about 10%
Material:	Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method:	Hot forming,cold forming
Surface Treatment:	Sand Blasting,Pickling,oil,discaling
Inspection:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME ,PED and GB
Certificate:	ISO9001,ISO45001,OHSAS18001
Applications:	Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Package:	Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product:	Available

Products of Elliptical Dish Head

Dished Head Tank Tube End Elliptical 2:1 Dish Head 0

Dished Head Tank Tube End Elliptical 2:1 Dish Head 1

Dished Head Tank Tube End Elliptical 2:1 Dish Head 2

Equipment of dish head:

Dished Head Tank Tube End Elliptical 2:1 Dish Head 4

Dished Head Tank Tube End Elliptical 2:1 Dish Head 5
