SA516 GR70 Torispherical Head 1760mm Diameter 20mm Thk For Storage Tanks
Product Details
| General: | Torispherical Head | Material: | SA516 |
|---|---|---|---|
| Diameter: | 1760mm | Keyword: | Conical Ends |
| Shape: | Torispherical | Thinckness: | 20mm |
| Highlight |
SA516 Torispherical Head,GR70 Torispherical Head,20mm Torispherical Dished Head |
||
Product Description

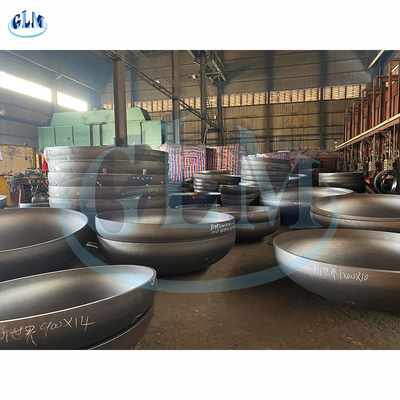

1760mm Diameter 20mm thk SA516 GR70 torispherical head for storage tanks
dished head, used for plugging pipelines or pressure vessels.
dished head refers to the element used to close the end of the container to isolate the internal and external media, also known as end caps. The head of a cylindrical container is generally a rotating shell. According to the shape of the head surface, it can be divided into convex shape, cone shape, flat shape and combined shape. Convex heads refer to heads whose outer surface is convex, such as hemispherical, elliptical, dish-shaped and spherical heads without folding edges. Some gas cylinders use a combined bottom head with a convex surface inward, which can not only ensure the strength, but also meet the needs of safe use.
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
Product Display
