Q235B Tank Disc End Head 1165mm Diameter 6 Mm Thick For Pressure Vessels

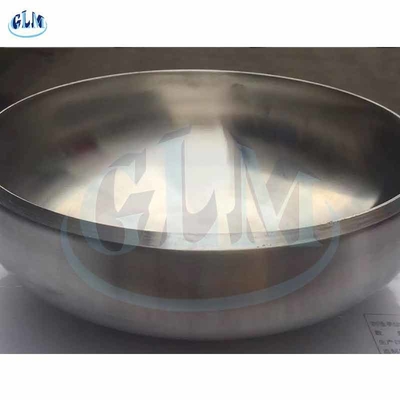

Large Image : Q235B Tank Disc End Head 1165mm Diameter 6 Mm Thick For Pressure Vessels

Product Details:

Place of Origin:	China
Brand Name:	GLM
Certification:	ASME, PED and GB
Model Number:	CAP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box and iron shelf or as percustomers requirement
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000

Contact Now

Q235B Tank Disc End Head 1165mm Diameter 6 Mm Thick For Pressure Vessels

Description

General:	Torispherical Head	Material:	Q345B
Industry Focus:	Research And Development Projects	D0:	1165mm
Di:	1165mm	R1:	116mm
Highlight:	Q235B Tank Disc End Head , 1165mm Tank Disc End Head , 6Mm Thick Torispherical Dished Head

1165mm diameter 6 mm thick Q235B Tank disc end head for pressure vessels

R1=Do

r1=10%*Do

h=25mm

Cyindrical Tank Disc End Head 6mm

Dimention

H=50mm

R1=1165mm

Do=1165mm

r1=116mm

Specifications:

Brand Name:	GLM
Diameter:	89mm--10000mm
Thickness:	2mm--300mm
Reduction Ratio:	about 10%
Material:	Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method:	Hot forming,cold forming
Surface Treatment:	Sand Blasting,Pickling,oil,discaling
Inspection:	UT,RT,MT,PT,TOFD.
Applicable Standard:	ASME ,PED and GB
Certificate:	ISO9001,ISO45001,OHSAS18001
Applications:	Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc.
Package:	Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product:	Available

Product Display

Q235B Tank Disc End Head 1165mm Diameter 6 Mm Thick For Pressure Vessels 0

Q235B Tank Disc End Head 1165mm Diameter 6 Mm Thick For Pressure Vessels 1

Q235B Tank Disc End Head 1165mm Diameter 6 Mm Thick For Pressure Vessels 2
