Product Details:
|
| General: | Tank Head | Material: | As516 Gr 70 Q235,Q345B,16Mn |
|---|---|---|---|
| Specification: | Standard Specification | Surface Treatment: | Rust-proof Oil, Galvanizing |
| Application: | Heat Pressure Vessel, Reaction Pressure Vessel | Delivery Time: | 20 Days After Receiving The Down Payment |
| High Light: | 3600mm Ellipsoidal Dish End,as516 gr 70 Ellipsoidal Dish End,Q235 asme ellipsoidal head dimensions |
||
Description
We are among the manufacturers of Dished- Ends Torispherical heads that are widely used in chemical refineries & plants and oil and gas industries. Our products are manufactured using high quality stainless steel, low alloy steel.
Experienced in making Dished-Ends Torispherical heads care is taken during all the stages of manufacturing and to meet the stringent pressure and requirements.
arrow Shape (Applicable standard or dishing radius r1 and knuckle radius r2)
arrow Diameter Da or Di
arrow Minimum wall thickness after formings
arrow Straight flange h1
arrow Weld-edge preparation
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |

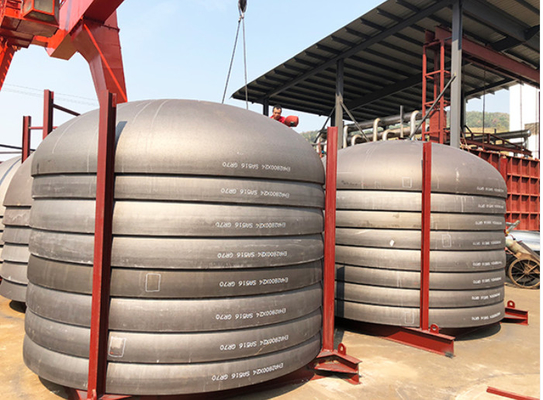

Product Display
