SS316L 2mm Asme Dished Ellipsoidal Dish End Dimensions Pressure Vessel 2 1

Certification
China Wuhan Linmei Head Plate Co., Ltd. certification
China Wuhan Linmei Head Plate Co., Ltd. certification
I'm Online Chat Now

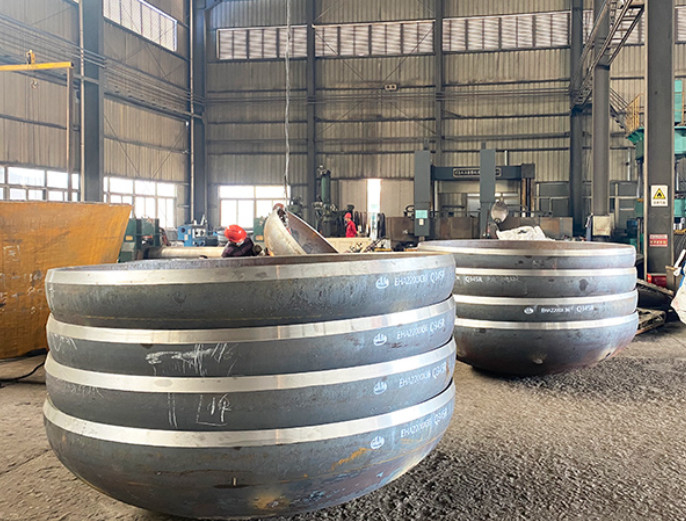

SS316L 2mm Asme Dished Ellipsoidal Dish End Dimensions Pressure Vessel 2 1

SS316L 2mm Asme Dished Ellipsoidal Dish End Dimensions Pressure Vessel  2 1
SS316L 2mm Asme Dished Ellipsoidal Dish End Dimensions Pressure Vessel  2 1

Large Image :  SS316L 2mm Asme Dished Ellipsoidal Dish End Dimensions Pressure Vessel 2 1

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5.00 - $125.00
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

SS316L 2mm Asme Dished Ellipsoidal Dish End Dimensions Pressure Vessel 2 1

Description
Material: SS316L Thickness:: 2mm–300mm
Diameter: 89mm–10000mm Technics:: Forged
High Light:

SS316L Ellipsoidal Dish End Pressure Vessel

,

2mm Ellipsoidal Dish End

,

asme dished head dimensions 2 1

ASME Pressure Vessel Heads Elliptical Heads 2:1 Torispherical dish end Forged Elliptical Dish head



Description:



Points to note when using the head:

1. Measure the outer circumference of the head. If the cylinder is processed in advance, please ask the production factory for the size of the outer circumference of the predetermined head;

2. Please divide the outer circumference of the head into 4 equal parts, and mark the cylinder and the head;

3. Weld the head and the cylinder. For welding, please choose your choice according to the diameter and thickness of the plate.





Specifications:

Brand Name: GLM
Diameter: 89mm-10000mm
Thickness: 2mm--300mm
Reduction Ratio: About 10%
Material: Duplex steel,carbon steel,stainless steel,aluminum,titanium and etc.
Technology: Hot pressing, Cold pressing
Surface Treatment: Sand Blasting,Pickling
Test: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME, PED and GB
Certificate: ISO9001 ,ISO45001,OHSAS18001
Applications: Petroleum, chemical industry, water conservancy, electric power,boiler, machinery, metallurgy, sanitary construction etc.
Packaging: wooden box and iron shelf or as percustomers requirement
Customized Product Support

 Item Types
We are Design, manufacture & fabricate
• Pressure Vessels head
• elliptical head
• torispherical head
• hemisphere head,spherical head;conical head;flat head;tank head;dished Head
SS316L 2mm Asme Dished Ellipsoidal Dish End Dimensions Pressure Vessel  2 1 0




SS316L 2mm Asme Dished Ellipsoidal Dish End Dimensions Pressure Vessel  2 1 1
