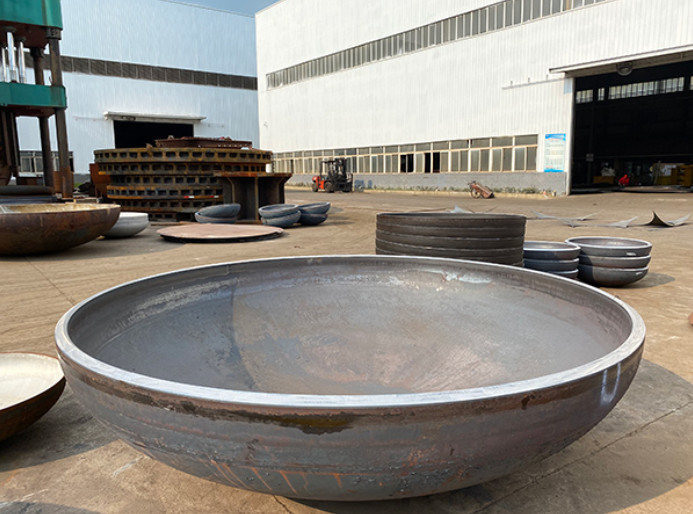

2mm ASME CODE Formed PED Semi Elliptical Tank Head Dimensions
Product Details
| Material: | Carbon, Alloy, And Low Alloy Steels | Head Code: | PRESSURE VESSEL TANKS HEADS |
|---|---|---|---|
| Outter Surface Treatment: | Sand Blasting | Range Of Applications: | Industrial |
| Heat Treatment: | Normalizing | Type: | Cap |
| Highlight |
2mm semi elliptical head,ASME CODE Formed semi elliptical head,PED elliptical tank head dimensions |
||
Product Description
ASME CODE Formed PRESSURE VESSELS DISH ELLIPTICAL TANKS HEADS
Description
The elliptical head is also known as the elliptical head. The elliptical head is a head composed of two parts: a rotating elliptical sphere and a cylindrical straight section. The elliptical head with the ratio of the major axis to the minor axis of the revolving elliptical sphere generatrix is 2.0, and is customarily called the standard elliptical head. The mechanical properties of the elliptical head are second only to the hemispherical head, but better than the dish-shaped head.
Wuhan Linmei has over 20 years of expertise in the manufacturing of high-quality dish heads with numerous happy customers all around the world. We supply a variety of dish heads types such as Semi Elliptical, Torispherical, Hemi Head , Crown & Petal, Dished Head, Flat and Ellipsoidal Head.
Dish Heads also known as dished ends or tank heads are an important component of pressure vessels. There is a multitude of types and sizes of dished heads used in different industries. These dished heads are handled in various methods such as deep drawing, cold forming, spinning, dishing, and flanging, as well as forming the heads in crown and petal segments.
Process
1, Cold Formed
2, Hot Formed Welded (U stamp partial data report)
Welding Processes
Stick-Electrode Semi-Automatic Submerged Arc Gas Shielded
Packaging & Shipping:
- Iron Frame
- Wooden Box
- Iron pallet
- Wooden pallet.
- Professional fixation
- Customer's requirment
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
