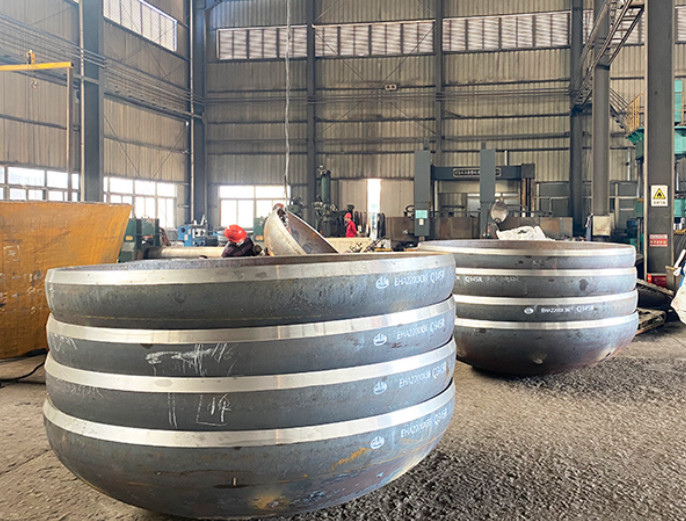

Q345R EHA 1600mm Elliptical Dish Head

Q345R EHA 1600mm Elliptical Dish Head
Q345R EHA 1600mm Elliptical Dish Head

Large Image :  Q345R EHA 1600mm Elliptical Dish Head

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

Q345R EHA 1600mm Elliptical Dish Head

Description
General: Dished Head Material: Q345R
Storage Medium: Moncombustible / Nontoxic Pressure Level: High Pressure
Surface Treatment: As Your Requirments Keyword: Elliptical Dish Head
High Light:

Q345R Elliptical Dish Head

,

EHA 1600mm Elliptical Dish Head

,

100mm GB carbon steel dished heads

Q345R EHA1600 * 38 ASME Standard 200mm Thickness elliptical Dish Head



Elliptical dished heads. We manufacture stainless steel heads by means of cold forming. Both the most common type and the most special and complex ones are realized in coordination with our customers: the final product is customized one. We can carry out different types of surface finishing with high precision technology.



1.Dished heads are mostly used in pressure mostly usedin pressure


2.Dished heads are mostly used in pressure mostly usedin pressure vessel manufacturing industries





In-Process inspection &Test Requirement



  1. cutting and marking transfer and Identification marks
  2. bevel preparation with MT on bevel edges.
  3. Welding
  4. Forming of heads (Cold forming)
  5. NDE after forming RT for welding seams
  6. Final dimensional and visual inspection (Dimensions, Ovality, Profile, Thickness, Height,
  7. Cutting from the lines and Bevel preparation
  8. surface treatment : Sand blast with anti-rust oil
  9. Packaing and delivery





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available





Product Display



Q345R EHA 1600mm Elliptical Dish Head 0Q345R EHA 1600mm Elliptical Dish Head 1

Q345R EHA 1600mm Elliptical Dish Head 2Q345R EHA 1600mm Elliptical Dish Head 3

Q345R EHA 1600mm Elliptical Dish Head 4

Q345R EHA 1600mm Elliptical Dish Head 5
