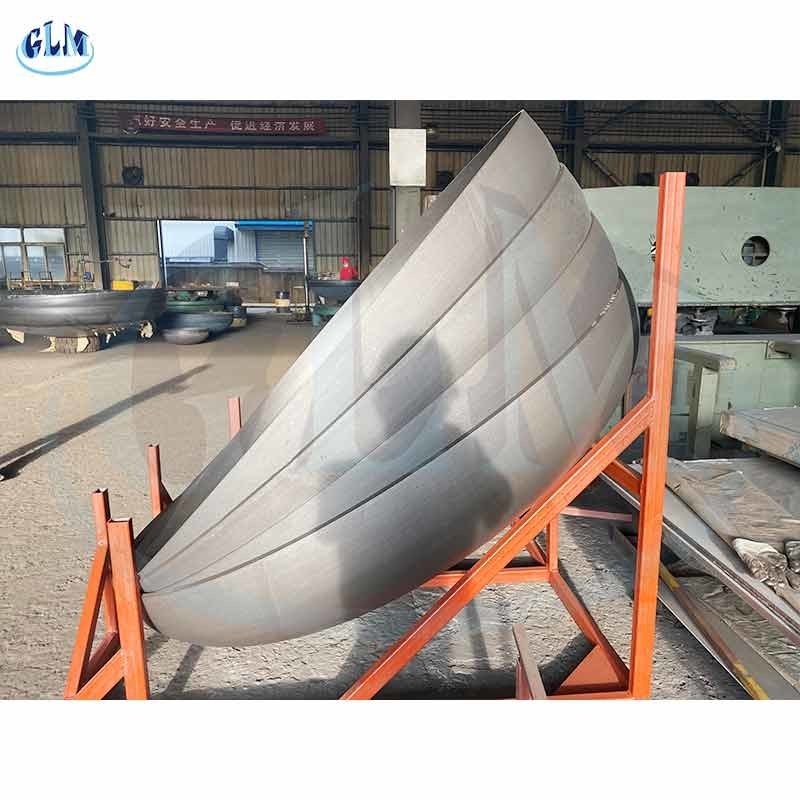

89mm Cold Forming SS304 Semi Elliptical Head Dimensions ASME
Product Details
| Body Material: | 304 316 SS,alloy Steel | Head Code: | Ellipsoidal Dished End |
|---|---|---|---|
| Technology: | Hot Pressing/cold Pressing | Surface Treatment: | Oil Painted |
| Application: | Power Station, Boiler, Industrial | Packaging Details: | Carton/ Plywood Cases/plywood Pallets |
| Highlight |
89mm Cold Forming semi elliptical head dimensions,SS304 semi elliptical head dimensions,Elliptical Dished Head ASME |
||
Product Description
Power Station Cold Forming SS Ellipsoidal Dished End
Description
Tank heads can be fabricated in configurations such as, dished or flanged only, standard flanged and dished, ASME flanged and dished, or ASME 2:1 semi elliptical. We possess the welding capabilities to accommodate almost any design or applicable standard, our certified welders and advanced welding equipment are prepared to provide stick-electrode, semi-automatic, gas shielded, and submerged arc welding. Manufacturing seamless tank heads from 6" up to 260" in diameter, in thicknesses from 3/19" to 15", with various prepped edges, such as trimmed, untrimmed, beveled, or tapered. We also offer stress relieving and blasting services including post weld heat treating, normalizing, and annealing. A wide array of specialized testing is also available, with full test data reporting.
Forming range:
Note that:
A: The below heads was formed by wuhan linmei with one piece plate,
B: Pls check with me if the range is out of the below range, pls contact with me
C, the forming range is not included in petals fabrication way.
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
