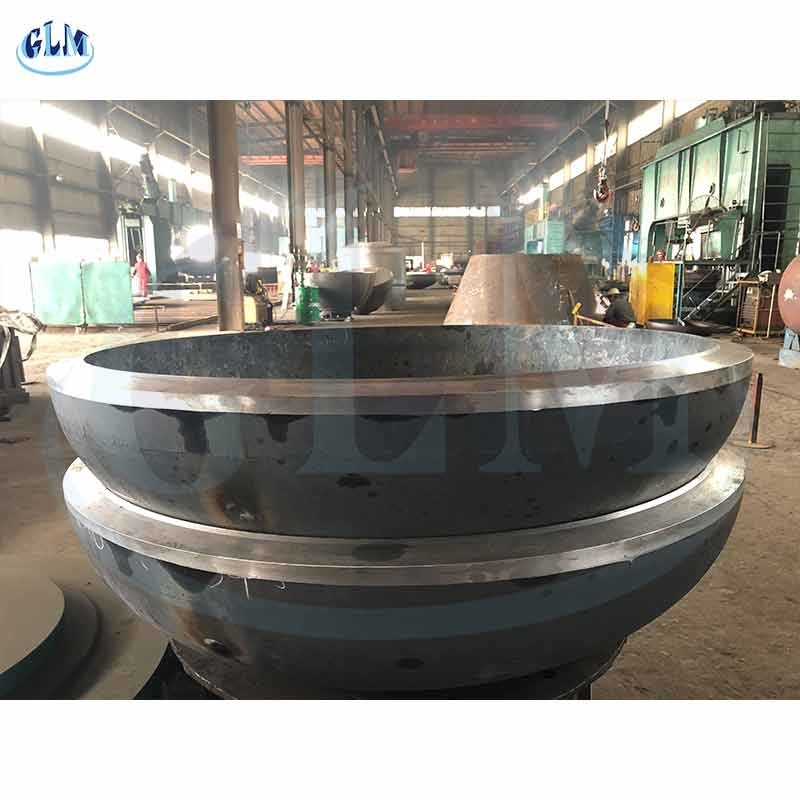

BQ Elliptical 350mm Pressure Vessel End Steel Pipe Caps Welded Heating Resisting 10000mm
Product Details
| Body Material: | Q235 | Head Code: | Carbon Steel Ellipsoidal Head |
|---|---|---|---|
| Technology: | Hot Pressing/cold Pressing | Surface Treatment: | Pickling |
| Diameter: | 350 Mm | Keyword: | Ellipsoidal Tank Head |
| Highlight |
BQ Elliptical pressure vessel end caps,350mm pressure vessel end caps,steel pipe caps welded 10000mm |
||
Product Description
BQ Elliptical Heating Resisting steel dish end caps
Description
Pressure Vessel Heads are manufactured utilizing state of the art equipment capable of achieving the industry’s tightest tolerances. Best in class pressure vessel heads are fabricated from carbon steel, stainless steel and high alloy metals.
Semi Elliptical Head
The Semi Elliptical head has an elliptical form – the most common ratio is 2:1 – or the width of the ellipse is twice the depth. (the width of the head is 4x the head depth). Other ratios are possible but not commonly used. In practice the fabricator will often make the SE head from 3 radii that approximate an ellipse – large in the crown, smallest at the outside diameter, with an intermediate radius in the middle. Code rules dictate how close the approximation has to be to a true ellipse.
Services:
Additional services include Custom Part Burning, Welding, Beveling, Pickling, Charpy Impact Testing, Sandblasting, Hardness Testing, Ultrasonic Testing and more
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
