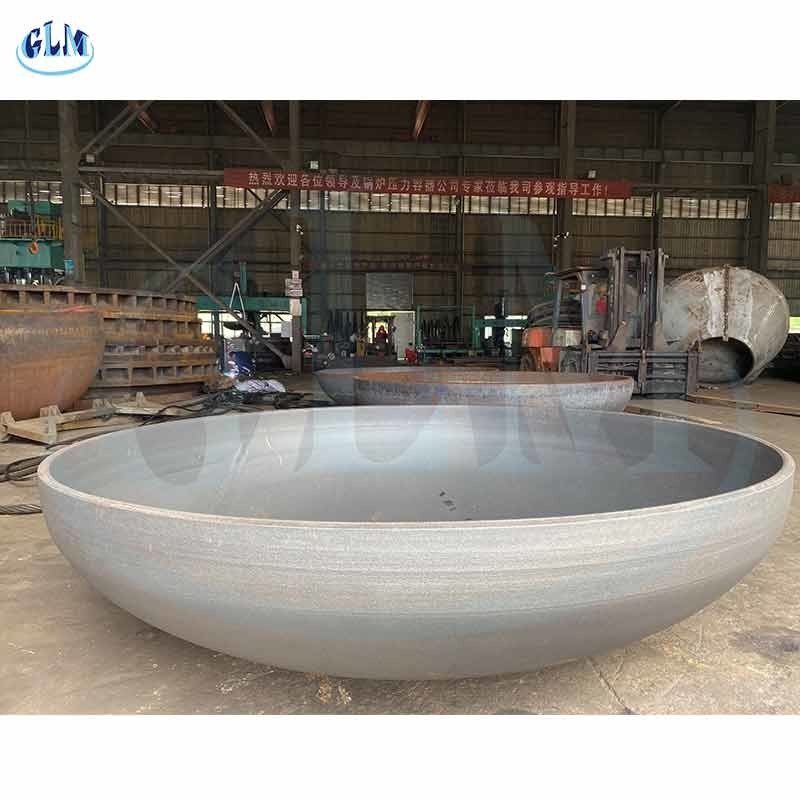

304H Q345R Carbon Steel Dished Heads Elliptical Pressure Vessel 1000MM

304H Q345R Carbon Steel Dished Heads Elliptical Pressure Vessel 1000MM
304H Q345R Carbon Steel Dished Heads Elliptical Pressure Vessel 1000MM

Large Image :  304H Q345R Carbon Steel Dished Heads Elliptical Pressure Vessel 1000MM

Product Details:
Place of Origin: China
Brand Name: GLM
Certification: ASME, PED and GB
Model Number: CAP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden box and iron shelf or as percustomers requirement
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

304H Q345R Carbon Steel Dished Heads Elliptical Pressure Vessel 1000MM

Description
General: Carbon Steel Dish End Material Grade: ASTM A182 F304/304H/304L
Specification: Standard Specification Surface Treatment: Fire Pit,end Cap,Fire Extinguisher
Application: Tank Barrels , Steel Pressure Vessels Keywords: Elliptical Dish Head
High Light:

304H Carbon Steel Dished Heads

,

Q345R Carbon Steel Dished Heads

,

elliptical pressure vessel 1000MM

EHA International Standard Q345R carbon Steel carbon steel dish end for heat exchanger/ boiler/ tank/ pressure vessel





Description



We are an ASME authorized manufacturer of head plate for VESSEL AND TANK in China stamped U, U2 & U3, as well certified by BV, DNV, NB, PED & ABS.





Ellipsoidal Head Dimensional Characteristics:



  1. In the same design condition, such as design pressure, design temperature and material, your calculated wall thickness under internal pressure will be approximately equal to shell thickness.
  2. For example if you have calculated your shell thickness under internal pressure and obtained 12 mm, your ellipsoidal head thickness also will be approximately 12 mm.
  3. The inside depth of your ellipsoidal head (h in above fig.) will be one-fourth of the head inside diameter (h = D/4).
  4. Your ellipsoidal head knuckle radius is 0.17D and the spherical radius is 0.9D.





Specifications:



Brand Name: GLM
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,

boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available
